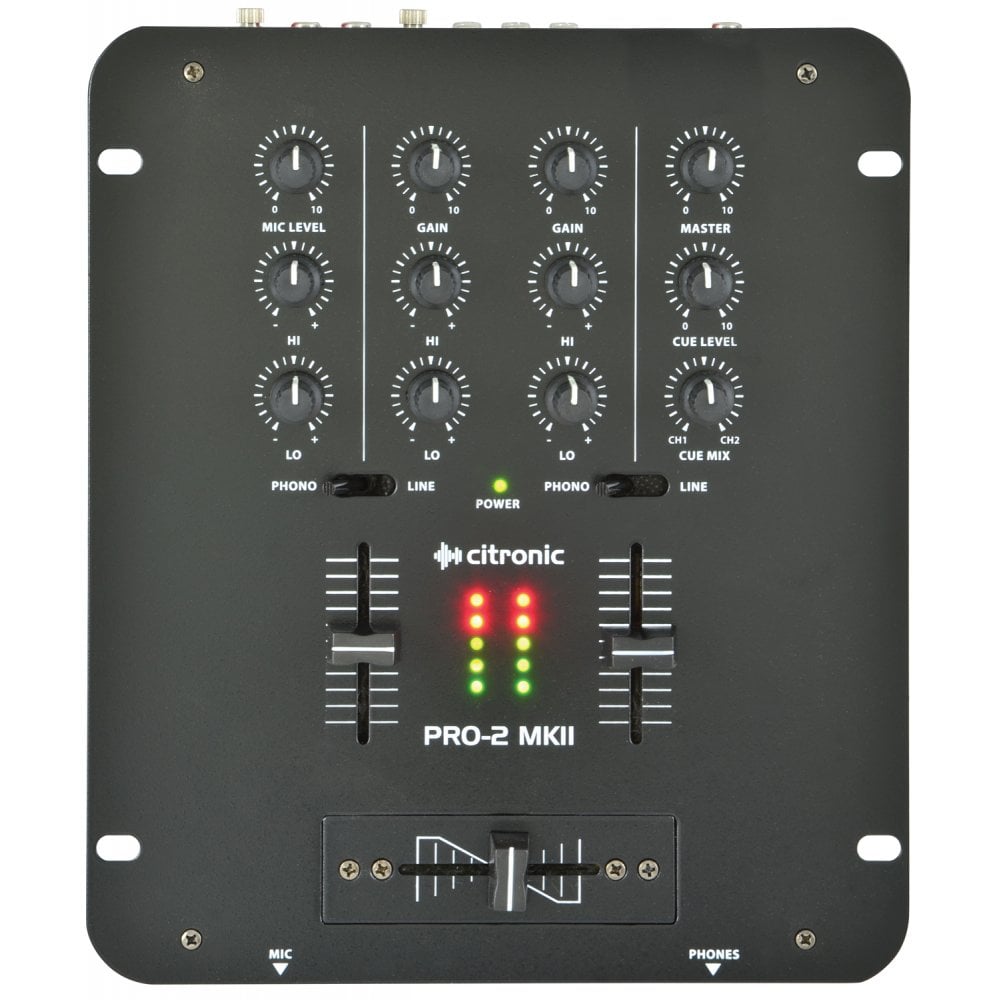

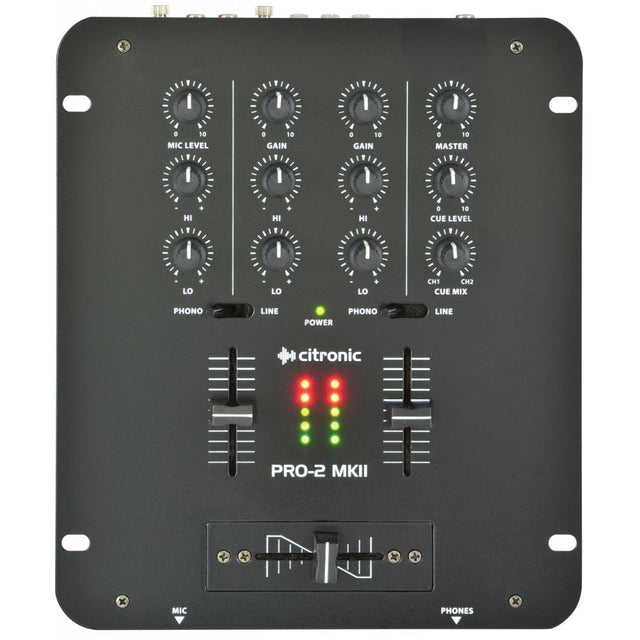

Citronic Pro 2 MKII 2 Channel DJ Mixer

Power supply

• 12Vac, 500mA

Headphone output

• 32 Ohms, 1.8V (>5dB)

Input : line

• -13dB, 47k Ohms (±2dB)

Input : phono

• -48dB, 47k Ohms (±2dB)

Input : DJ Mic

• -53dB, 6k Ohms (±1dB)

Output : master

• RCA 0dB, 470 Ohms (±2dB)

Output : headphone

• -3dB/33 Ohms +5dB, ±2dB

Frequency response : line

• 20Hz-20kHz ±2dB

Frequency response : mic

• 20Hz-20kHz +2, -3dB

Frequency response : phono

• 50Hz-20kHz ±1dB (RIAA)

EQ line : hi

• +10/-30dB +2/-2dB @ 10kHz

EQ line : low

• +10/-30dB +2/-2dB @ 100Hz

EQ mic : high

• +12/-12dB +2/-2dB @ 10kHz

EQ mic : low

• +12/-12dB +2/-2dB @ 100Hz

THD

• >0.2%

Dimensions

• 228 x 265 x 87mm (6U)

Weight

• 2.8kg
