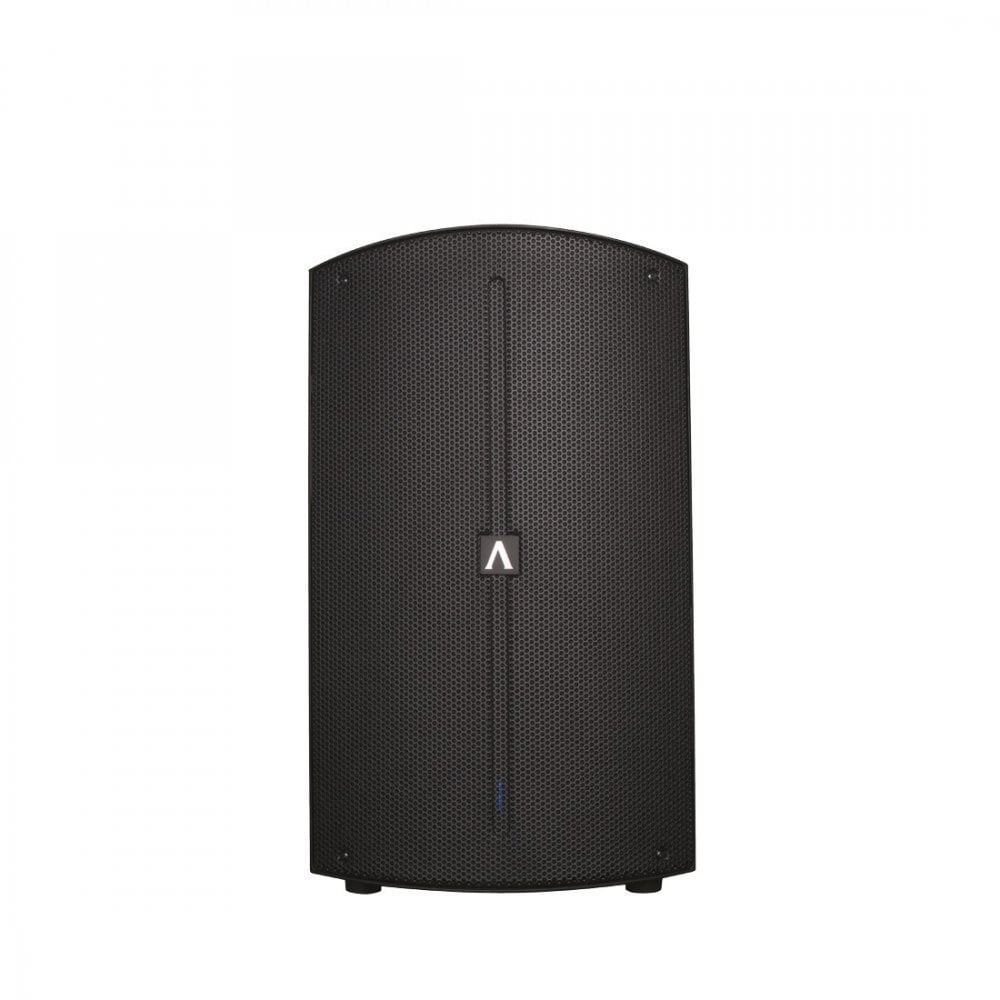

Avante 12X Active 12" Speaker (Single)

The Avante A12X is part of the Achromic series of speakers that has an active loudspeaker that provides you with a precise sound output alongside highly-detailed sonic clarity. The loudspeaker also features an integrated digital signal processor as well as a sleek and professional looking exterior. The A12X is suited towards both permanent installations as well as mobile productions which makes the A12X ideal for mobile DJs, club and bar venues, music venues, schools and colleges, theatres, events productions, and entertainment facilities.

The A12X comes fitted with a 12-inch low-frequency woofer with a 2.5-inch voice coil alongside a 1.35-inch high-frequency compression driver that both work in perfect harmony to deliver a clear sound. It has a frequency response that ranges from 60 Hz – 20 kHz. The 1000w dynamic Class D amplifier effortlessly delivers a sound pressure level of 123dB which is ideal for medium to large sized audiences. An integrated digital signal processor provides you with an LCD display with multiple sound and EQ presets which means you will always get the best possible sound for your application.

The A12X is housed inside of an H-PP moulded cabinet. A single handle on the top of the speaker lets you easily manoeuvre the speaker to and from gigs while three fly points let you suspend the speaker if preferred. A 1.2mm steel metal grille covers the drivers keeping them protected against impacts and prevents dust and dirt from entering the system. Dual pole mounts allow you to angle the speakers at either 0° or 7.5°. The rear panel offers audio connections for connecting to microphones, instruments, mixers, and linking multiple speakers together. The connections include a balanced XLR / ¼-inch combo jack, 2 x RCA (phono), 1 x 3,5mm TRS and a balanced XLR output. Additonally there is Bluetooth® 5.0+ audio connection which enables wireless connection of the Achromic X APP or streaming of music from your smartphone, tablet, or laptop.

Features

Drivers

LF: 12" with 2.5" voice coil

HF: 1.35" HF Compression Driver

Output (Peak SPL @ 1m): 123dB

Frequency Range: 60hz-20kHz

Nominal Coverage: 90° x 60°

Amplification

LF: 350W RMS Class D

HF: 50W RMS Class AB

Built-in Digital Signal Processing (DSP) with LCD screen, EQ & multiple presets.

IOS APP for remote control of settings.

Selectable time-out function

Connections

Bluetooth® 5.0+ audio connection enables wireless connection of the Achromic X APP or streaming of music from your smartphone, tablet, or laptop

Inputs: Balanced Female XLR / ¼-inch combo jack, 2x RCA (phono), 1x 3,5mm TRS

Output: Balanced Male XLR

Construction

H-PP Molded enclosure

Grill: 1.2mm Steel

Handles: 1 on top / 1 on side

Fly Points: 2 on top / 1 on back (all M10)

Pole Mounting: Dual position 0° or 7.5°
