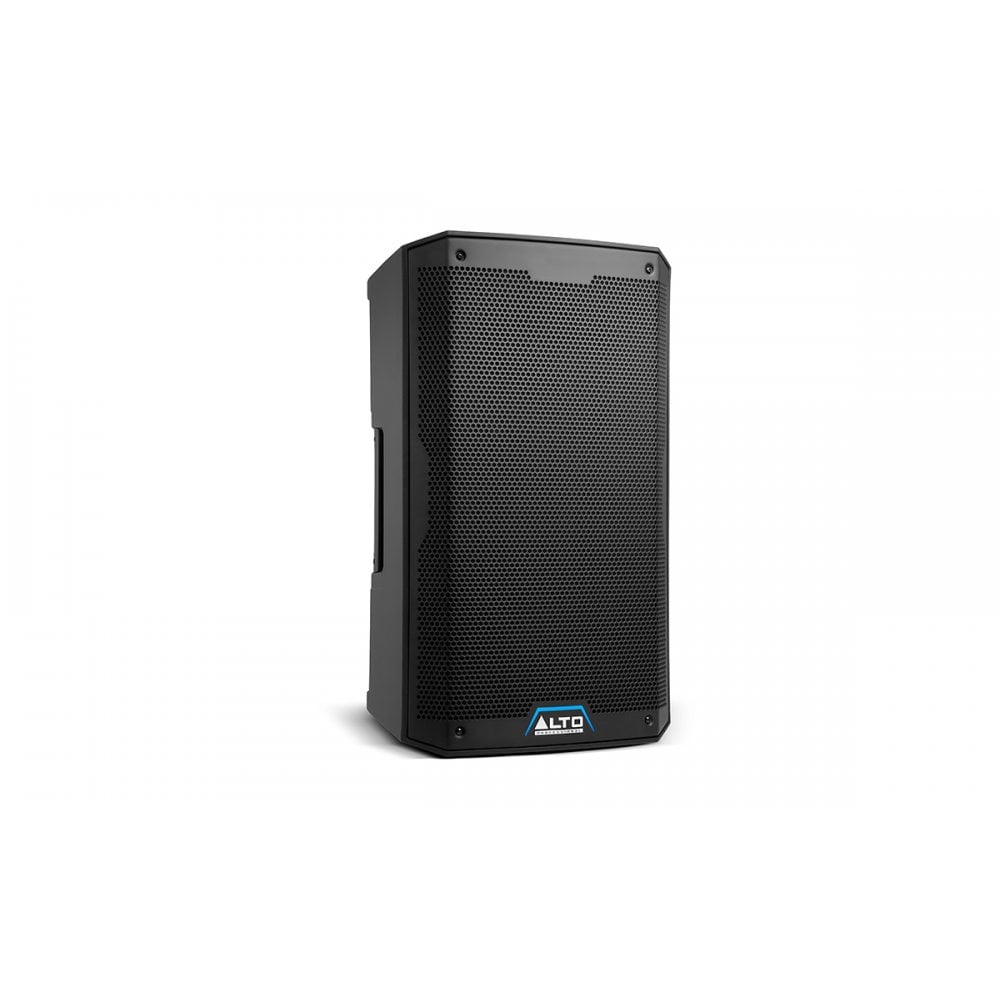

ALTO TS410 ACTIVE 10" PA SPEAKER 2000W PEAK WITH DSP & BLUETOOTH (Single)

Specifications

• Output Power 2000W
• Drivers Low-Frequency: 10.0” driver, 2.0” (50 mm) high-temperature voice coil. 1 x 650 W RMS @ 2 Ω.
• High Frequency 1.0” exit ceramic driver with 1.4” (35 mm) coil. 1 x 350 W @ 4 Ω.
• Crossover Frequency 2 kHz
• Maximum SPL 130 dB (peak), 127 dB (continuous) (dB-SPL @ 1 m)
• Frequency Response 57 Hz – 20 kHz (+/-3 dB)
• Frequency Range 48 Hz – 20 kHz (-10 dB)
• Horn Coverage 90° horizontal x 60° vertical (nominal)

Connectors

• (2) XLR+1/4” (6.35 mm) TRS combo inputs (Balanced (1) XLR output (Link) (1) IEC power cable input
• Input Impedance Line 10 KΩ balanced, 20 KΩ unbalanced, Mic: 1.2K
• Line Gain/Volume Control Range -∞ to 0 dB, +4 dBu nominal, +10 dBu for max output
• Mic/Inst. Gain / Volume Control Range -∞ to +50 dB
• USB Charging Port 5V 2.1A

Controls

• Power switch, (2) gain control knobs (1 per input), (2) Mic/Line switches, Bluetooth
• volume control encoder, Pairing button, Stereo Link button, Sub Size
• button, Speaker Use button

Indicators

- (1) Input Channel Signal/Limit/Clip LED (Green = Ch1/2 Signal) (Yellow = Ch1/2

- Limiter) (Red = Ch1/2 Output Clipped)

- (1) Bluetooth LED (Blue)

- (1) Link LED (Orange)

- (4) DSP Presets LED (Green)

- (3) HPF LED (Green)

• Power Connection IEC
• Voltage 100-120V, 50/60Hz; 220-240V, 50-60Hz
• Consumption 900W
• Fuse 100-120V T10AL AC250V; 220-240V T5AL AC250V
• Protection Electronic clip, thermal, and transducer overdrive protection
• Enclosure Injected Moulded Enclosure and Perforated Metal Grille
• Mounting/Installation
• Standard 36 mm pole socket, flown application, suspended with integral M6
• points, or in a wedge monitor position
• Operating Temperature 10°C to 45°C (14°F to 113°F)
• Dimensions (height x width x depth) 17.2” x .10.1” x 9.6 / 436 x 256 x 245 mm
• Weight 20.7 lbs. / 9.4 kg
