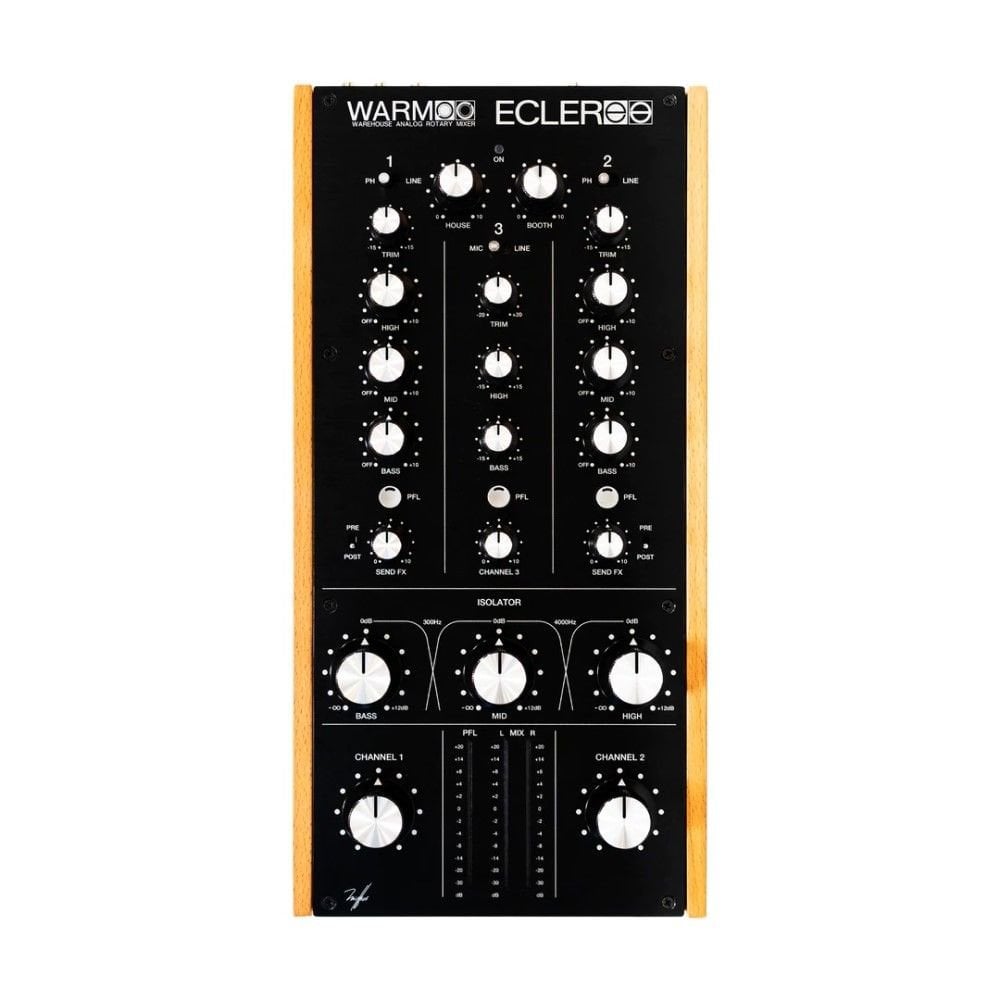

ECLER WARM2, Professional Two-channel Analogue Rotary DJ Mixer
ECLER WARM2, Professional Two-channel Analogue Rotary DJ Mixer is backordered and will ship as soon as it is back in stock.
Pickup available at Electronic Centre
Usually ready in 1 hour
Description
Description
The WARM2 is a professional two-channel analogue rotary DJ mixer designed and built-in Barcelona by ECLER. It delivers a warm and crystal-clear analogue sound thanks to a micro/line channel, two phono/line channels, classic sharp filters, and a 4th order Isolator which is all encased within a narrow portable format.
Additionally, the mixer features Alps Blue Velvet Potentiometers that provide ultimate precision, and the function of the 4th order isolator removes frequencies which in turn creates a more dramatic acapella track by enhancing musical riffs or creating a tremolo effect.
Rotary mixers have a unique feel by creating smoother and subtle transitions. To provide the best professional grade in quality and reliability, all circuits are strictly designed, mounted, and tested at ECLER facilities in Barcelona.
The WARM 2 mixer is easily transportable and has a width of 18.5 cm, making it the narrowest DJ mixer on the market. Do not be fooled by its compact size, though. It has excellent features, including a 3-band EQ + Trim, Pre/Post fader selector, and FX Send control.
ECLER has over 50 years of experience in analogue and audio design, and the WARM 2 DJ mixer is proof of their knowledge and expertise.
Features
- 2+1 Mixing channels
- 1 MICRO input
- 2 PHONO inputs
- 3 LINE inputs
- MasterOutput (HOUSE) on XLR and RCA connectors
- Booth Output on RCA connectors
- 6.3mm Jack and 3.5mm mini-jack Headphone Monitor Outputs
- 3 band full cut EQ for main channels and 2 band full cut EQ for MICRO/ LINE channel
- 3 bands isolator (300Hz and 4KHz, -∞/+12dB, 4th order 24dB/ oct)
- Maximum Output without distortion: 21dBV (23dBu)
- Mechanised from a solid block of aluminum knob, without visible screw. Ecler Unique design
- Alps Blue Velvet Potentiometers
- FX Send control and Pre/Post fader selector
- Screen-printed faceplate by selective anodizing
- Wooden side panels included
Tech spec
Audio Performances
Inputs Sensitivity nom/Impedance
- LINE: 0dBV/50kΩ
- PHONO: -40dBV/50kΩ
- MICRO: -50dBV/>1kΩ
- FX RETURN: 0dBV/>6kΩ
Outputs Level/ Minimum Load
- HOUSE (BAL): 0dBV/600Ω1V *(+12dB 4V)
- HOUSE (UNBAL): 0dBV/2.2kΩ1V *(+12dB 4V)
- BOOTH (UNBAL): 0dBV/2.2kΩ1V *(+12dB 4V)
- REC: 0dBV/10kΩ
- HEADPHONES: 200mΩ/200ΩTHD 1%
- FX SEND: 0dBV/2.2kΩ
Frequency Response
- LINE: 10Hz÷30kHz -1dB
- MICRO: 10Hz÷25kHz -1dB
- PHONO: RIAA ±0.5dB
- FX RETURN: 10Hz÷50kHz -1dB
THD+N
- LINE: <0.006%
- MICRO: <0.9%
- PHONO: <0.08%
- FX RETURN: <0.005%
CMMR
- MICRO:
Signal Noise Ratio
- LINE: >99dB
- MICRO: >85dB
- PHONO: >98dB
- FX RETURN: 100dB
Max Undistorted Output Level
- HOUSE (Electr.BAL): 21dBV (23dBu)
- HOUSE (UNBAL): 21dBV (23dBu)
- BOOTH (UNBAL): 21dBV (23dBu)
Trim Control
- INPUTS 1-2: ± 15dB
- INPUT: 3: ± 20dB
