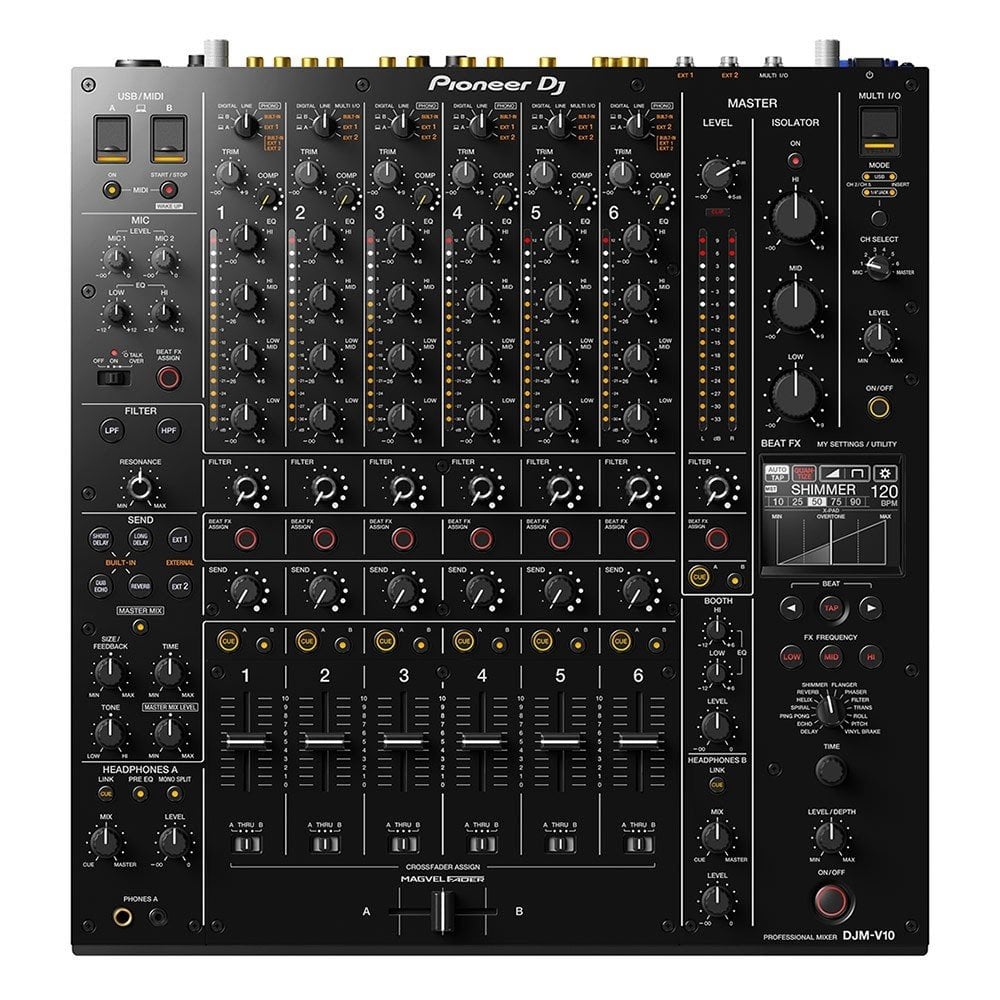

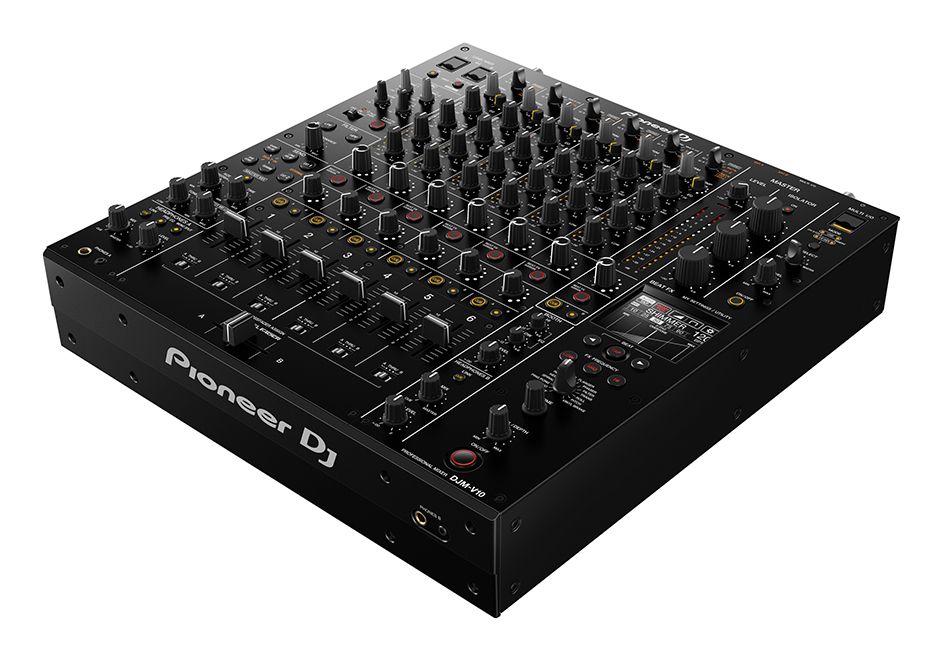

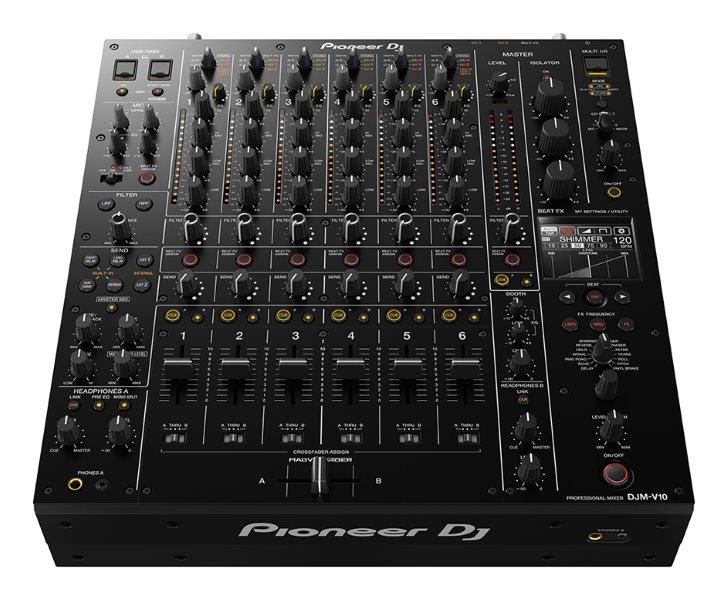

Pioneer DJ DJM-V10

General

The Pioneer DJM-V10 6-channel mixer gives DJs an unprecedented amount of possibilities to sculpt sound and create perfect mixes. Studio-grade 64-bit processing and 32-bit high-quality A/D and D/A converters ensure the best possible results while six channels make for a solid, layering foundation. The fact that this mixer is equipped with a completely new 4-band EQ and an intuitive touchscreen for accurate effects implementation speaks for itself. "Craft Your Sound" is the motto.

The Pioneer DJM-V10 DJ-Mixer: Soundscape Sculpting

The sonic character of the DJM-V10 can be described as warm with plenty of presence and it's not for nothing that Pioneer enjoy a strong reputation in this regard. In terms of on-board effects on DJ mixers, they've already set the standard and they're equally well-known for making the life of a DJ a lot easier. These trends continue with the introduction of the DJM-V10. Unique in this mixer is the ability to edit stacked layers of music in various ways and have each layer harmonise with the other while the controls to do so are perfectly accessible via the front. More than ever before, you're able to literally feel the way you create soundscapes and add dynamics as needed.

More Options, More Accessibility

Each of the six channels offers the possibility to apply filter, Beat FX as well as compressor. The Beat FX of the DJM-V10 can be thrown in the mix using the intuitive touchscreen and extensively controlled from there. This opens up a whole new world of directly accessible options to tickle your creativity. Newly included in the Beat FX section is the Shimmer effect, which adds clarity and brightness to the original sound.

Even More Options to Create Sound

As a professional DJ mixer befits, the DJM-V10 comes with a comprehensive send/return section. To call the connection options round the back 'abundant' would be an understatement. There are two stereo sends and returns to route your tracks through guitar pedals, filters and multi-effects processors before sending them back to the mix. The DJM-V10 even includes its own set of dedicated internal effects for you to assign while the Isolator on the master can be used for not-so-subtle EQ settings and direct communication with the crowd. This powerhouse Pioneer mixer features both USB and MIDI connectors and is the ideal piece of DJ gear to make musical inspiration come alive and be heard.

Product specifications

• Pioneer DJM-V10 DJ-mixer
• software:
  • rekordbox
  • Traktor Pro 3.3.0
  • ShowKontrol
• frequency response: 20 Hz - 40 kHz
• signal-to-noise ratio:
  • 116 dB (USB, DIGITAL IN),
  • 105 dB (Line)
  • 88 dB (PHONO)
  • 79 dB (MIC1,2)
• THD: 0.005% (LINE-MASTER1)

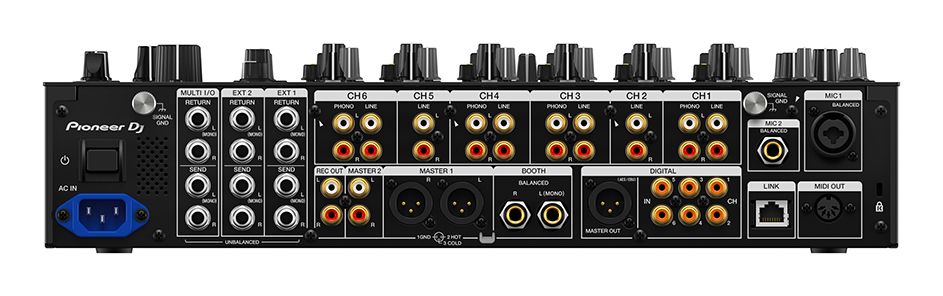

• connectors:
  • inputs:
    • 6x digital (coaxial)
    • LINE x 6 (RCA)
    • PHONO x 4 (RCA)
    • RETURN x 3 (TS jack)
    • MIC x 2 (XLR and TRS jack, TRS jack)
  • outputs:
    • MASTER x 2 (XLR, RCA)
    • AES/EBU DIGITALE MASTER x 1 (XLR)
    • BOOTH x 1 (1/4 inch-TRS jack)
    • SEND x 3 (1/4-inch-TS jack)
    • HEADPHONES x 4 (2x stereo jack + 2x stereo mini-jack)
    • REC x 1 (RCA)
  • USB:
    • 1x USB (type A,
    • 2x USB (type B)
  • other:
    • 1x LINK (LAN)
    • MIDI (5-pin DIN) x 1
• dimensions: 43.8 x 46.7 x 10.8 cm
• weight: 15kg
• included:
  • lockable power cable
  • quick start guide
