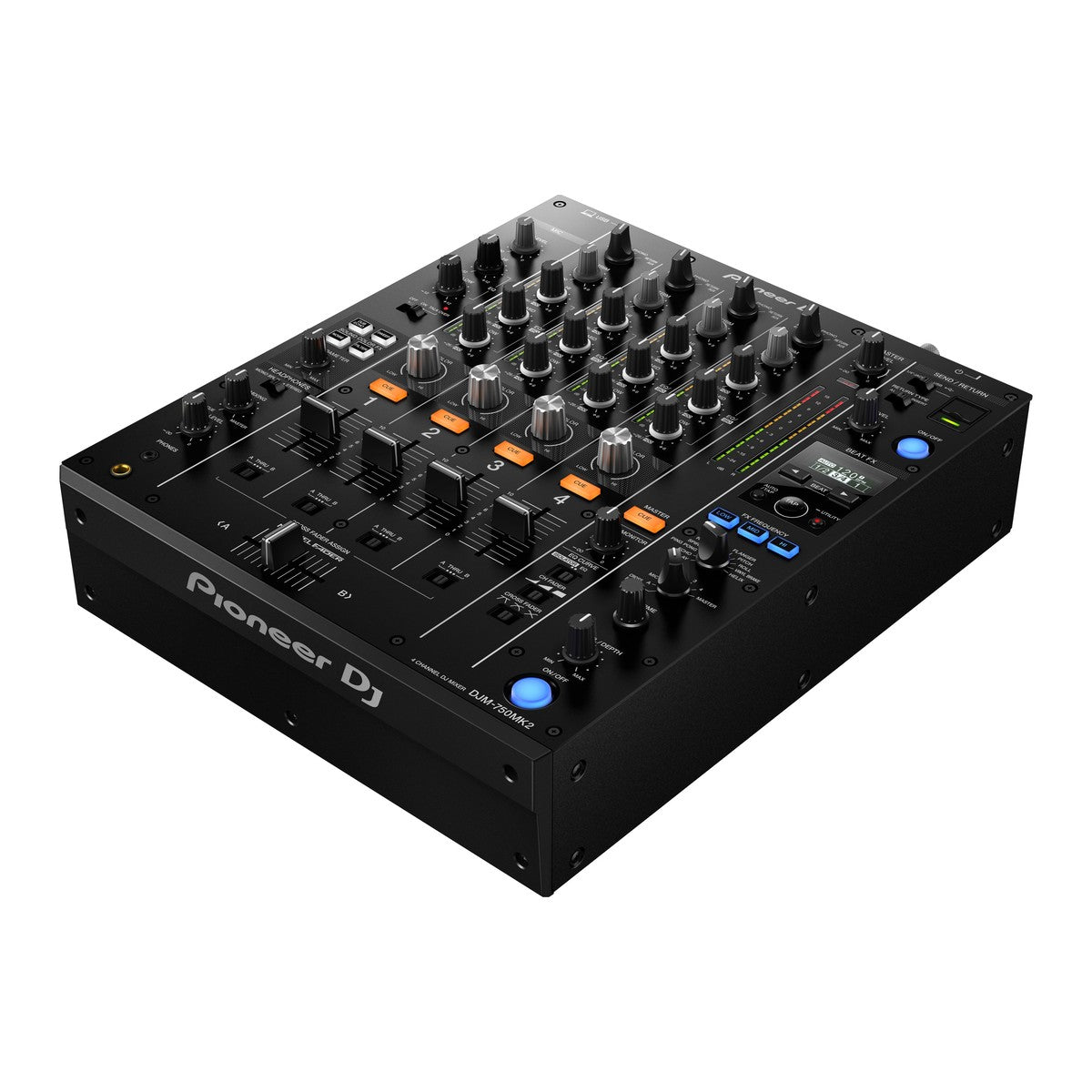

Pioneer DJM750 MK2

Club-standard layout and workflow

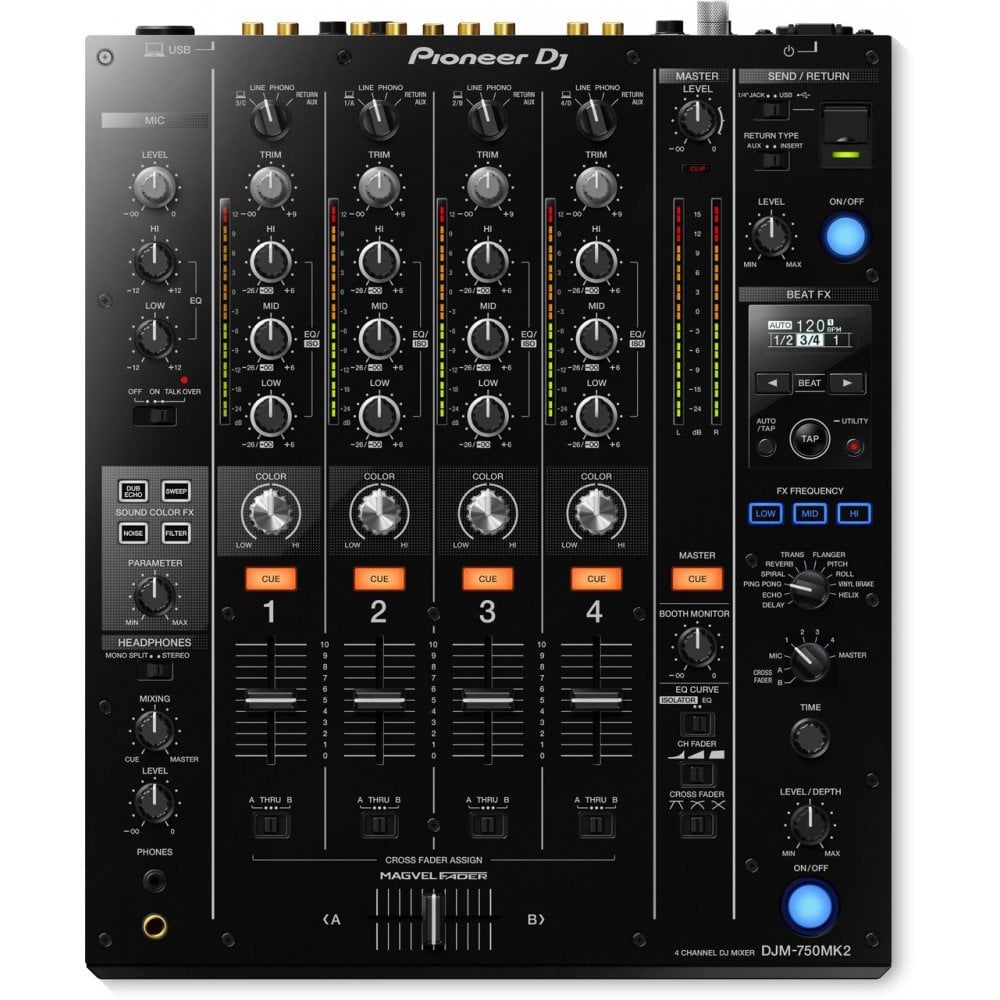

The DJM-750 MK2 adopts key design elements from the DJM-900NXS2, providing a layout that reflects current professional booth standards. The four-channel configuration and centralised display allow clear monitoring of levels and effects, supporting precise adjustments during performance.

This consistency enables efficient preparation and reliable execution in venue environments, as control placement and operation remain familiar. DJs can move between practice and live settings without adapting to a different interface, maintaining focus on timing, phrasing, and overall mix structure.

Advanced FX control and routing

Two FX units provide access to Sound Color FX and Beat FX, offering detailed manipulation of audio characteristics. The inclusion of FX Frequency allows selective processing across low, mid, or high ranges, supporting more controlled application of effects.

Send/return functionality supports both insert and aux routing modes. Insert replaces the original signal with processed output, while aux blends effected and dry signals on separate channels. This flexibility allows integration with external processors, mobile apps, or samplers, expanding creative options without disrupting signal flow.

Precision-engineered faders and crossfader

Channel faders and EQs are designed with curves that support consistent and accurate transitions, helping maintain balance across blends. The Magvel crossfader is engineered for high durability, rated for extensive operation cycles while retaining a stable response.

Its low cut-lag improves accuracy during fast movements, supporting detailed scratch techniques and controlled cuts. The overall response of the mixer ensures that input adjustments translate directly to output changes, which is essential for maintaining precision in complex performance scenarios.

High-resolution audio and connectivity

A 64-bit digital signal processor and dithering technology ensure accurate audio reproduction across both analogue and digital inputs. This maintains clarity and detail throughout the signal chain, supporting professional sound requirements.

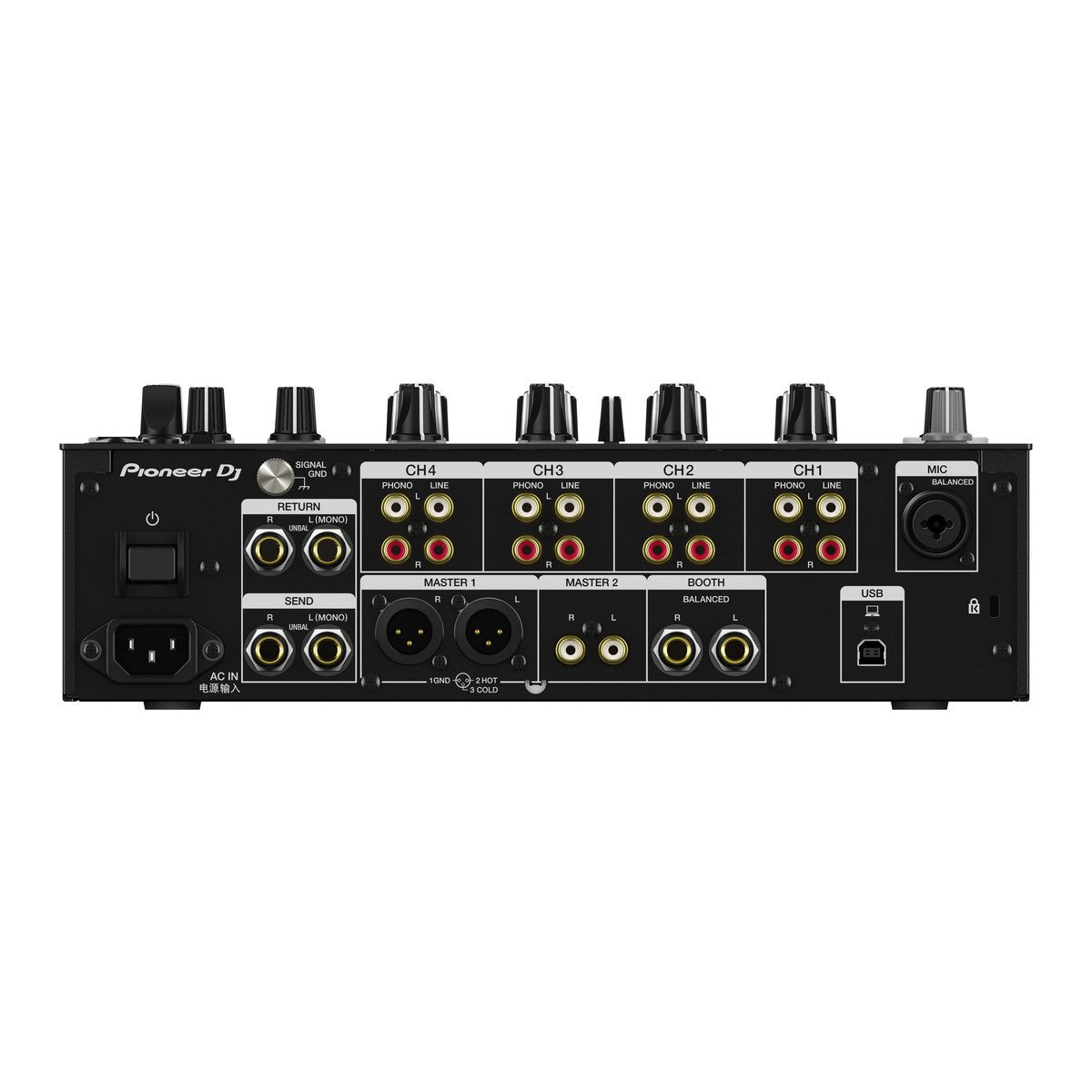

Connectivity includes balanced XLR outputs and gold-plated RCA terminals for reliable signal transfer, along with a dedicated ground terminal for turntables. Dual headphone outputs support simultaneous monitoring. USB connectivity enables direct recording and streaming, while compatibility with rekordbox and TRAKTOR DVS provides low-latency control over digital audio files.

Features

• 4 channel mixer
• Magvel crossfader
• Smooth seamless EQ's
• Sound color FX
• Beat FX
• FX Frequency control
• Independant send and return
• iOS connection
• 32 bit A/D and D/A converters
• 64 bit digital signal processors
• XLR terminal: High-quality audio output
• Two headphone outputs: ¼” stereo jack and 3.5-mm mini jack
• Signal GND terminal: Easily attach ground wires from analogue turntables
• Gold-plated RCAs: Premium sound quality on all connections
• Independent Mic section

Specifications

• 4 x audio channels, 1 x MIC channels
• Line x 4 RCA, Phono x 4 RCA, MIC x 1 XLR & 1/4 TRS Jack
• Master out, Booth out, Headphone monitor x 2
• USB x 1 (B), USB x 1 (A)
• Send x 1 1/4 TS Jack, Return x 1 1/4 TS Jack
• Sampling Rate 48 kHz
• D/A Conversion 32-bit
• A/D Conversion 32-bit
• Frequency Response 20Hz-20kHz
• S/N ratio 105 dB
• Total Harmonic Distortion 0.005
• Maximum Dimensions 320mm (W) x 387.9mm (D) x 107.9mm (H)
• Weight 6.6kg
• Accesories included power cord, USB cable, operating instructions, license key and quick start guide
