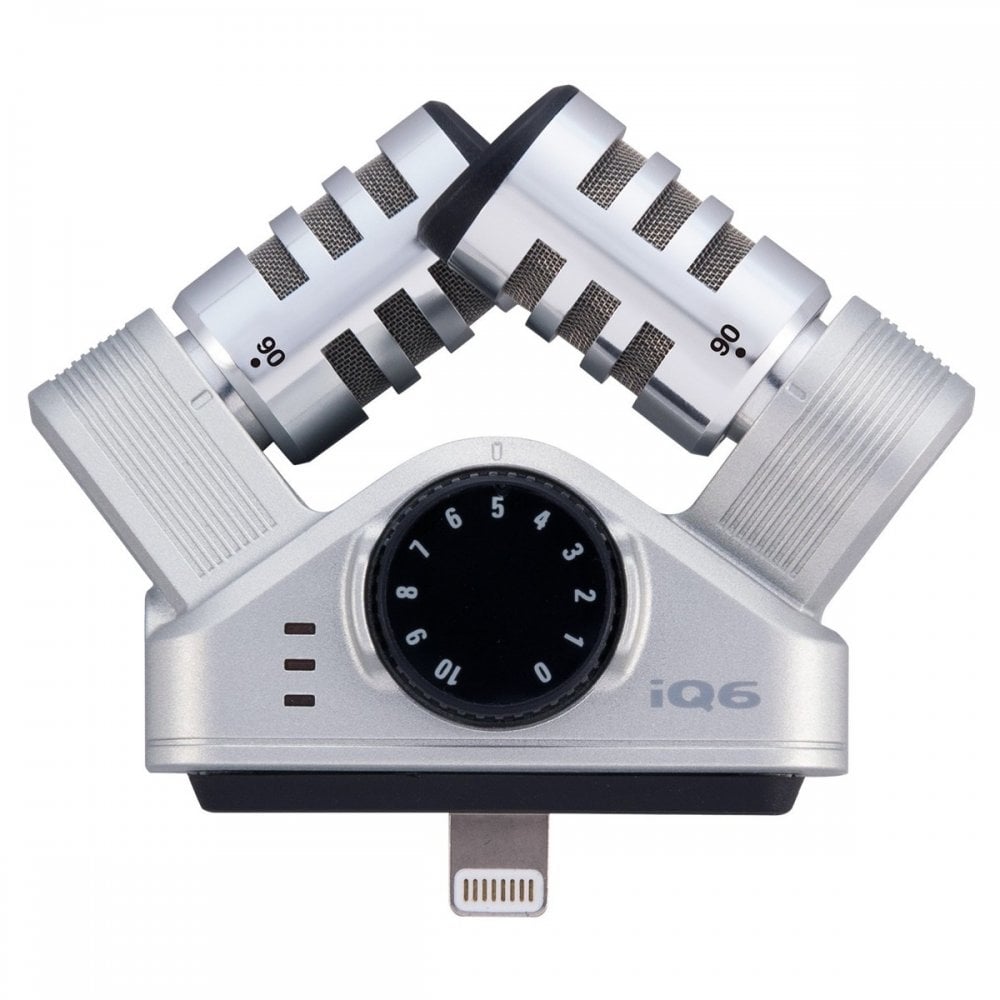

Zoom iQ6

X/Y Recording For The iPhone

The Zoom IQ6 Stereo XY Microphone is a versatile microphone attachment for the iPhone, turning your phone into a portable, high-resolution audio recorder. The unidirectional microphone features two, matched condensers, providing incredible stereo detail with an immersive stereo field. It is ideal for everything from location recording to live performances and more. The stereo X/Y microphone attaches to the lightning port of your iPhone and other iOS devices. This turns your phone into a highly portable stereo field recorder, capturing every sound in immense detail for optimal audio performance. The connector on the microphone has been extended for easy attachment, providing you with a removable space so it can be used for all iOS devices.

High-Resolution Audio

The ultra-wide frequency range and X/Y microphone configuration results in amazing clarity and detail. The immersive stereo field makes you feel like you are in the middle of the sound. The XY microphones are comprised of two unidirectional mics, each at a 90-degree angle for the best possible stereo field. You can capture audio with sample rates ranging up to 48kHz/16-bit. It also boasts an impressive SPL of 130dB, making it ideal for even the most demanding of audio sources. It also features an analog-style Mic Gain wheel for adjusting the volume on the microphone. The three-segment level LEDs also provide a visual representation of your audio levels, ensuring you get a great recording every time.

Design & Connectivity

The iQ6 is the perfect solution for high-definition, portable recording. Its ultra-compact size and robust design will fit in your pocket with ease, allowing you to take your microphone anywhere you go. It features a dedicated headphone jack which also doubles up as a line output, allowing you to monitor during both recording and playback. The iQ6 Microphone is ideal for use Zoom’s dedicated Handy Recorder app, available for free. This app provides you with added features such as on-screen level metering, as well as adding an auto-recording feature. You can also choose between PCM and AAC formats, as well as providing a range of effects for refining and editing your recordings.

Features

• Unidirectional dual X/Y condenser microphones
• Turn your iOS device into a high-definition audio recorder
• Ideal for capturing concerts, interview s, meetings and lectures
• Immersive stereo field
• 90 and 120 degree configurations for added versatility
• Lightweight and highly compact design
• Extended lightning connector and removable spacer for easy attachment
• Large analog-style Mic Gain wheel and three-segment level LEDs
• Dedicated headphones jack that double as a line output for direct monitoring
• Expand your functionality with Zoom’s Handy Recorder app

Specifications

• Microphone: Unidirectional X/Y stereo (90°/120°) condenser
• Output Connector: Stereo mini ?" jack (combined headphone/line level output)
• Audio Quality: 44.1kHz/16-bit , 48kHz/16-bit
• Input Gain: +11 to +51dB
• Maximum Input Sound Pressure: 130dB SPL
• Connector: Lightning Connector
• Power: Powered by the connected iOS device

Compatible Devices:

• iPhone (5, 5s, 5c, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus and X)
• iPod Touch (5th and 6th Gen)
• iPad (4th, 5th and 6th Gen, Air, Air 2, mini, mini 2, mini 3, mini 4, Pro and Pro 2)
• Supported iOS: iOS 6.0 or newer
• Dimensions: 61.1 (w) x 30.6 (d) x 53.1 (h) mm
• Weight: 30.5g
