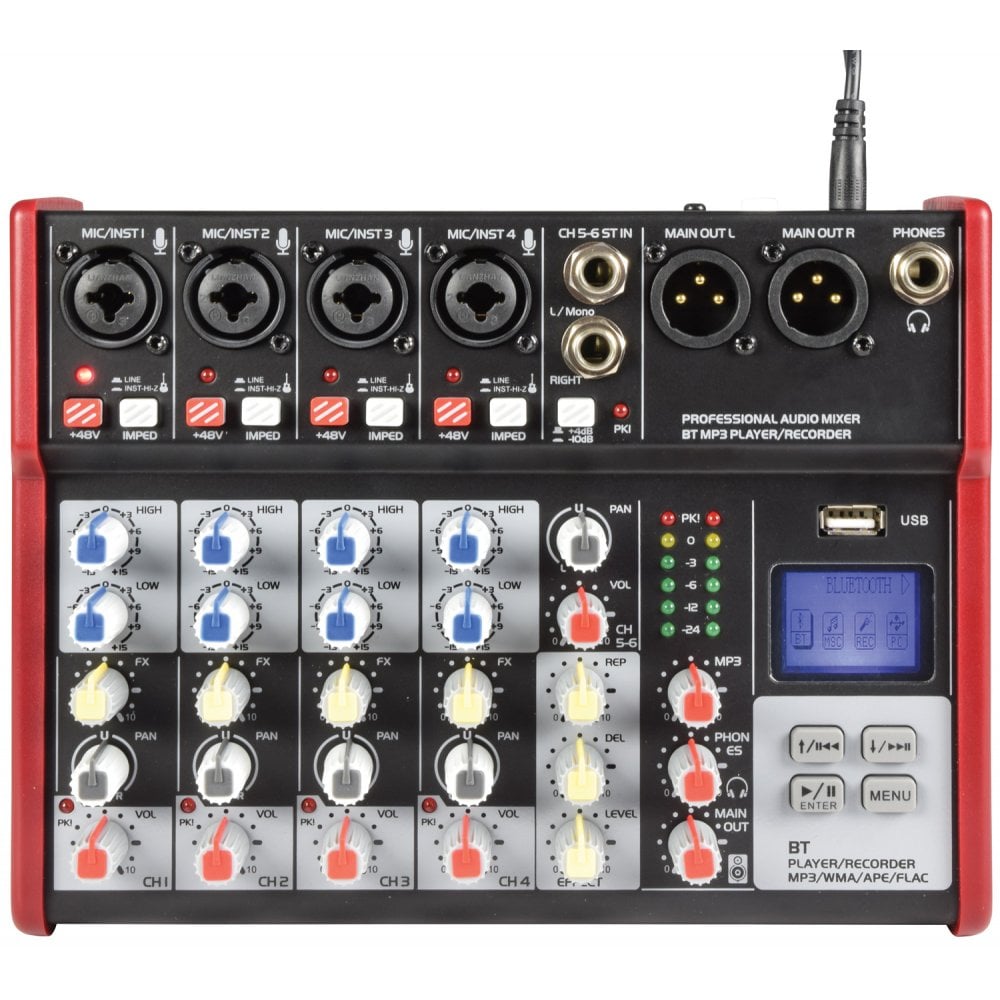

Citronic CSM-6

CSM Compact Mixers With USB / Bluetooth

Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls and mono channels also have Effects level to vary the amount of internal digital delay effect added for vocals or instruments. An internal player/recorder with backlit display can accept a USB memory stick containing compressed audio files in various formats or alternatively connect to a smart phone via BT wireless link. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.

Integral USB multi-format audio player

BT wireless connectivity

Digital delay effect for vocals or instruments

Individually switchable +48V phantom power

Built in record function

Supplied with DC power adaptor

Power supply5Vdc 1A (adaptor included)

Phantom power+48V individually switchable (XLR inputs only)

Audio sourceInternal USB player/recorder & BT receiver

Audio formatUSB playback mp3, wma, ape, flac / record mp3 (48kHz 128kB/s)

Power consumption max.5W

Gain-14 to +40dB

EQ: low±15dB @ 80Hz

EQ: high±15dB @ 12kHz

Input impedance : mic2k Ohms

Input impedance : instrument1M Ohms

Input impedance : line20k Ohms

Bluetooth version2.1 + EDR

Frequency response20Hz - 20kHz (±0.5B)

THD +N<0.03% @ 1kHz

Dynamic range102dB

Crosstalk : stereo92dB

OutputLeft + Right balanced XLR

Output impedance120 Ohms

Max. output level3Vrms
