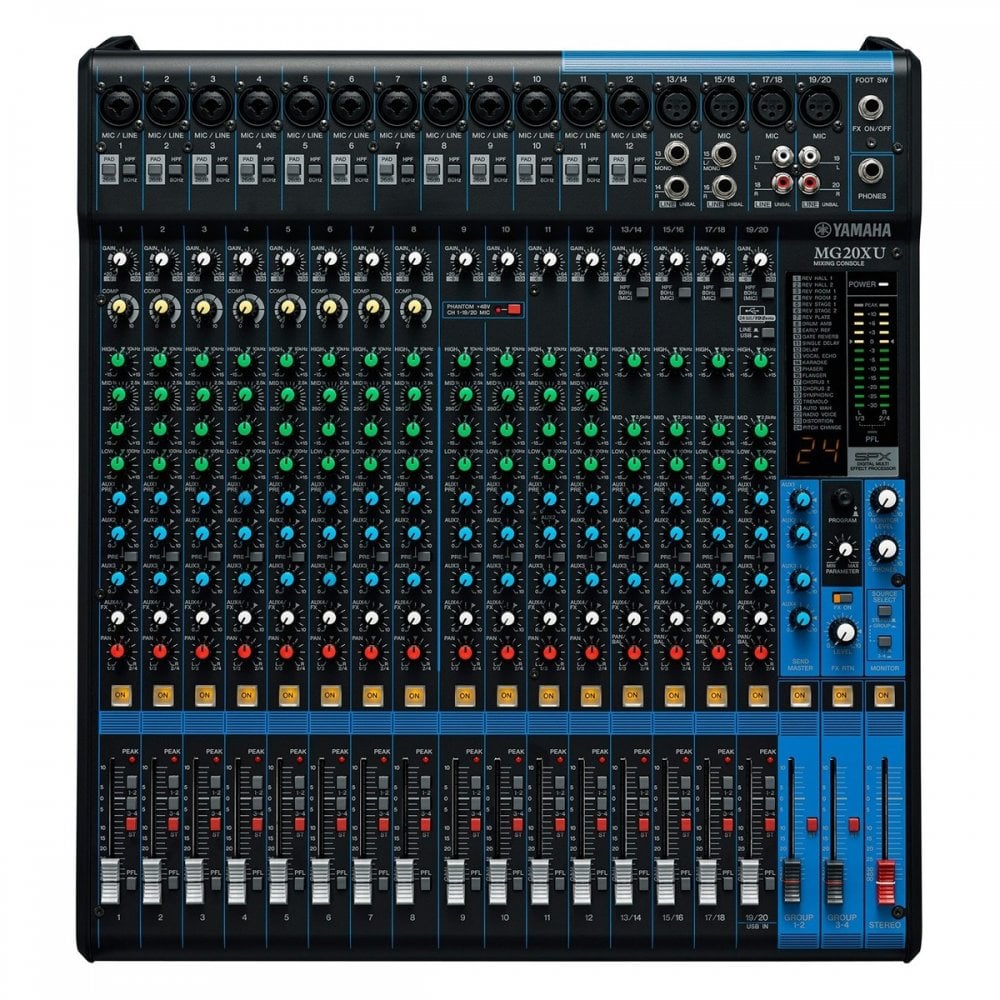

Yamaha MG20XU

Completely redesigned for the 3rd Generation of MG mixers, the MG20XU features 16 class leading Class A D-PRE microphone preamps, SPX Effects, USB audio interface and Cubase AI (download version).
20-Channel Mixing Console
Max. 16 Mic / 20 Line Inputs (12 mono + 4 stereo)
4 GROUP Buses + 1 Stereo Bus
4 AUX (incl. FX)
“D-PRE” mic preamps with an inverted Darlington circuit
1-Knob compressors
High-grade effects: SPX with 24 programs
24-bit/192kHz 2in/2out USB Audio functions
Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
Includes Cubase AI DAW software download version
PAD switch on mono inputs
+48V phantom power
XLR balanced outputs
Internal universal power supply for world-wide use
Rack Mount Kit Included
Metal chassis
Dimensions(W×H×D): 444 mm x 130 mm x 500 m (17.5" x 5.1" x 19.7")
Net Weight: 7.1kg (15.7 lbs.)
Outline

• Mixing capabilityOn-board processorsSPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
• I/O
  Phantom power+48 V
  Digital I/OUSB Audio Class 2.0 compliant Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
• Input Channels
  Mono[MIC/LINE]12
  Mono/Stereo[MIC/LINE]4
• Output Channels
  STEREO OUT2
  MONITOR OUT1
  PHONES1
  AUX SEND4
  GROUP OUT4
• BusStereo: 1, GROUP: 4, AUX: 4 (incl. FX)
• Input Channel Function
  PAD26 dB (Mono)
  HPF80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
• COMP1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
  EQ HIGHGain: +15 dB/-15 dB, Frequency: 10 kHz shelving
  EQ MIDGain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking
  EQ LOWGain: +15 dB/-15 dB, Frequency: 100 Hz shelving
  PEAK LEDLED turns on when post EQ signal reaches 3 dB below clipping
  Level Meter2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]

• Total harmonic distortion0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
• Frequency response+0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
• Hum & noise level
  Equivalent input noise-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
  Residual output noise-102 dBu (STEREO OUT, STEREO master fader: Min)
• Crosstalk-78 dB
• Power requirementsAC 100 – 240 V, 50 / 60 Hz
• Power consumption36 W
• Dimensions
  W444 mm (17.5")
  H130 mm (5.1")
  D500mm (19.7")
• Net weight7.1kg (15.7 lbs.)
• Accessories
  Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Rack-mount kit.
  Optional Accessory: Foot Switch FC5
• OthersOperating Temperature: 0 to +40ËšC
