25-30MHz (35W. 70W PEP SSB) Linear Amplifier
Pickup available at Electronic Centre
Usually ready in 1 hour
Description
Description

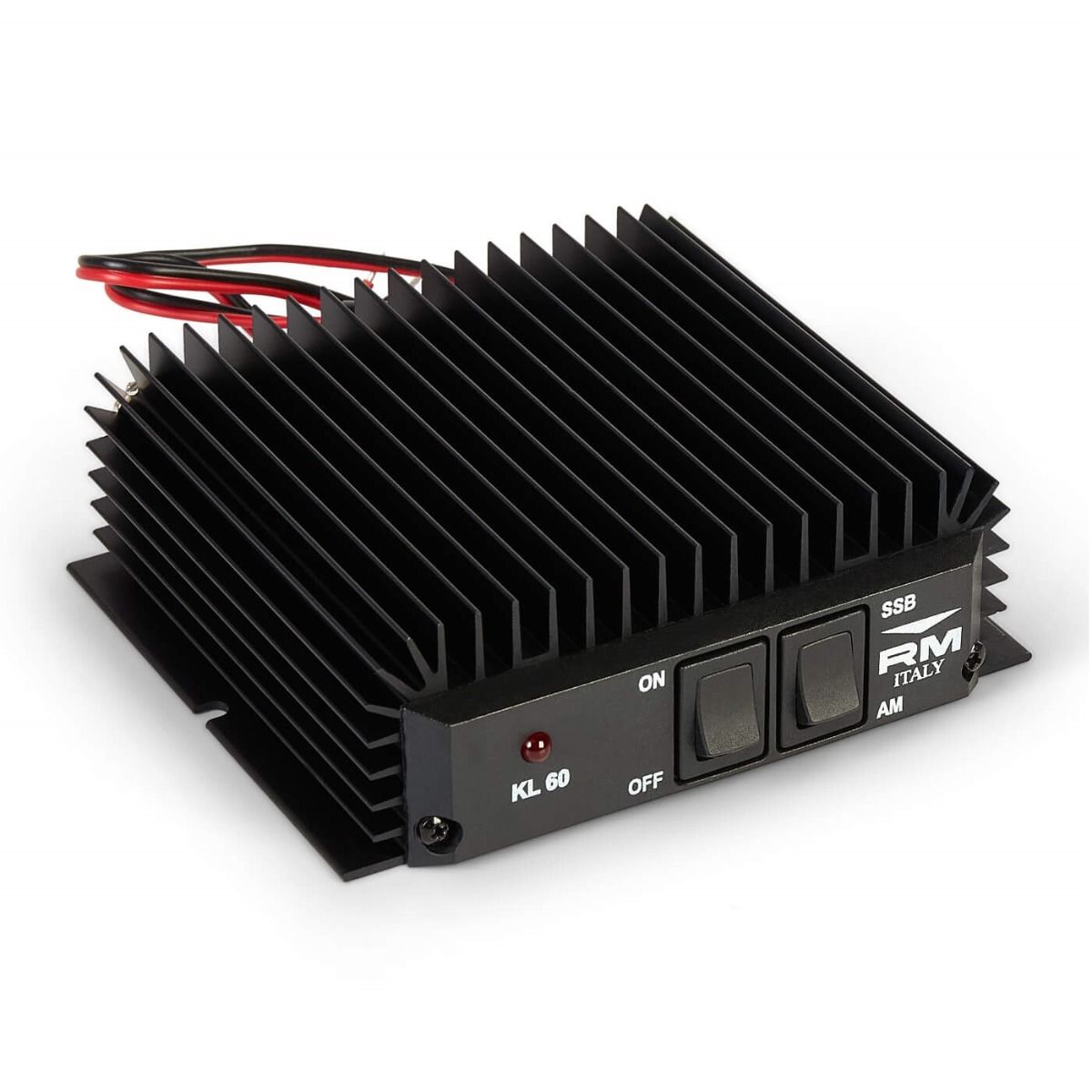

The KL60 is a 12V linear amplifier for use in the frequency range 25-30MHz with best performance 28–29.7MHz, with a drive power of 1 to 5W in FM/AM mode, and 2.0 – 10W in SSB mode. It is a compact amplifier with on/off switch, suitable for use on FM, AM and SSB
Features/Specification
- Freq. Range: 25-30MHz (Best Performance 28-29.7MHz)
- Power Supply: 12-14Vdc
- Max input current: 4A
- Fuse: 5 A
- Input Power: 1-5W max.
- Output Power: 25-35W (70W PEP SSB)
- Modes: AM-FM-SSB
- Size: 109 x 125 x 35mm
- Weight: 295gr
PLEASE NOTE: Do not EXCEED Input Power - The manufacturers RM Italy do not repair any amplifiers that have been over driven by mistake under warranty and charges are very expensive - If you are unsure please call or email for further details
