4K HDMI Matrix 4x2

A 4K HDMI matrix to switch between 4 source devices and 2 display outputs. Use with HDMI cables of a combined 30m per input/output for 4K@30Hz and FHD resolutions, or a combined 10m per input/output for 4K@ 60Hz. SPDIF and 3.5mm stereo outputs allow the audio signal for each source device to be simultaneously channelled through a separate sound system and/or headphones. Compatible with the latest 4K digital TV boxes making it ideal for hospitality and entertainment venues. Supplied with IR remote to switch between sources for both outputs.

• Supports HDMI resolutions up to 3840 x 2160 @ 60Hz for compatibility with the latest 4K digital TV boxes
• Simple setup and operation
• Gold plated HDMI connectors for optimum signal transfer
• Supports DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD audio formats
• Digital SPDIF and analogue 3.5mm jack audio outputs
• Smart EDID management for precise video and audio settings

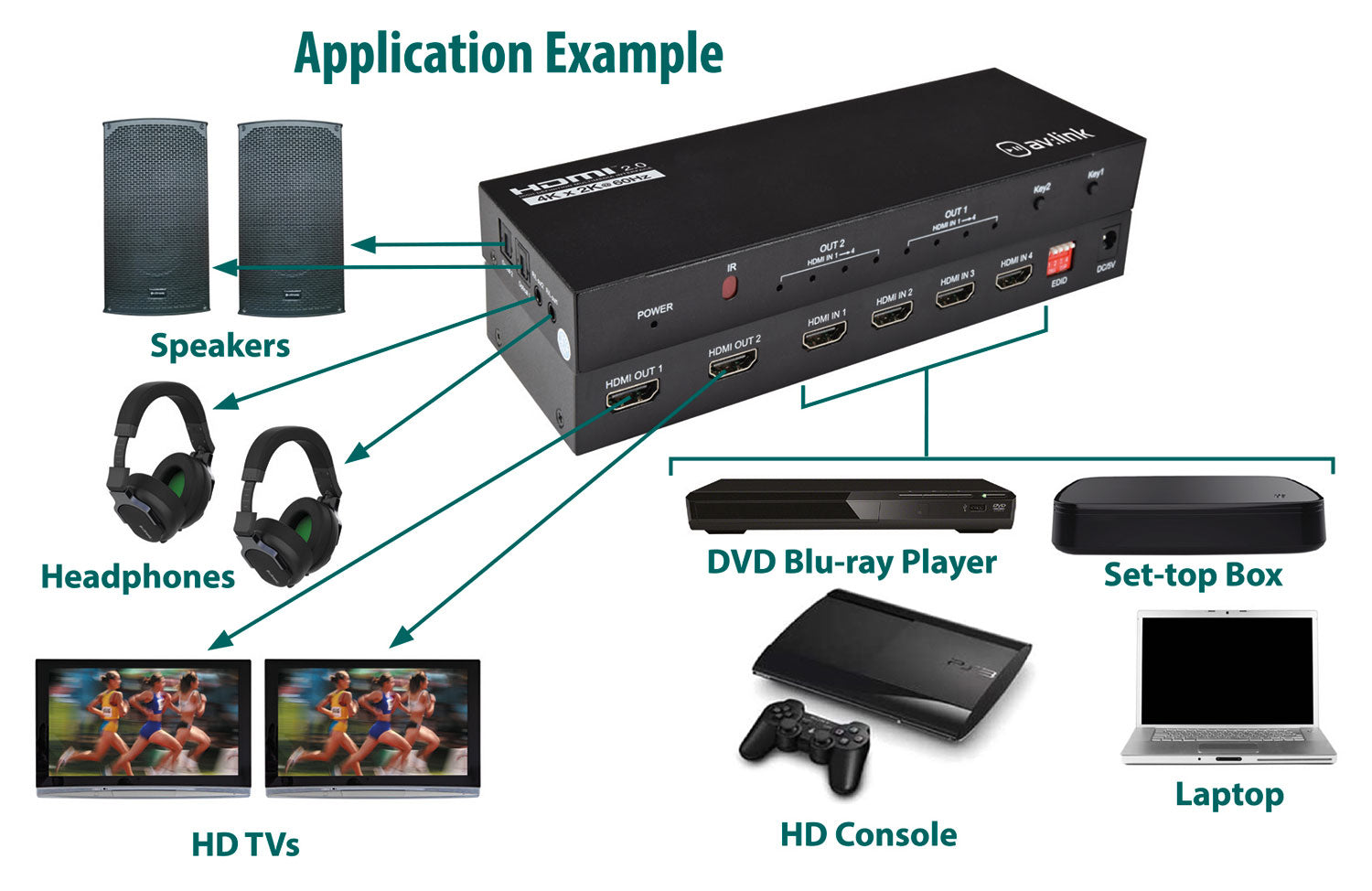

• Ideal for entertainment, hospitality and other commercial venues with multiple sources and displays

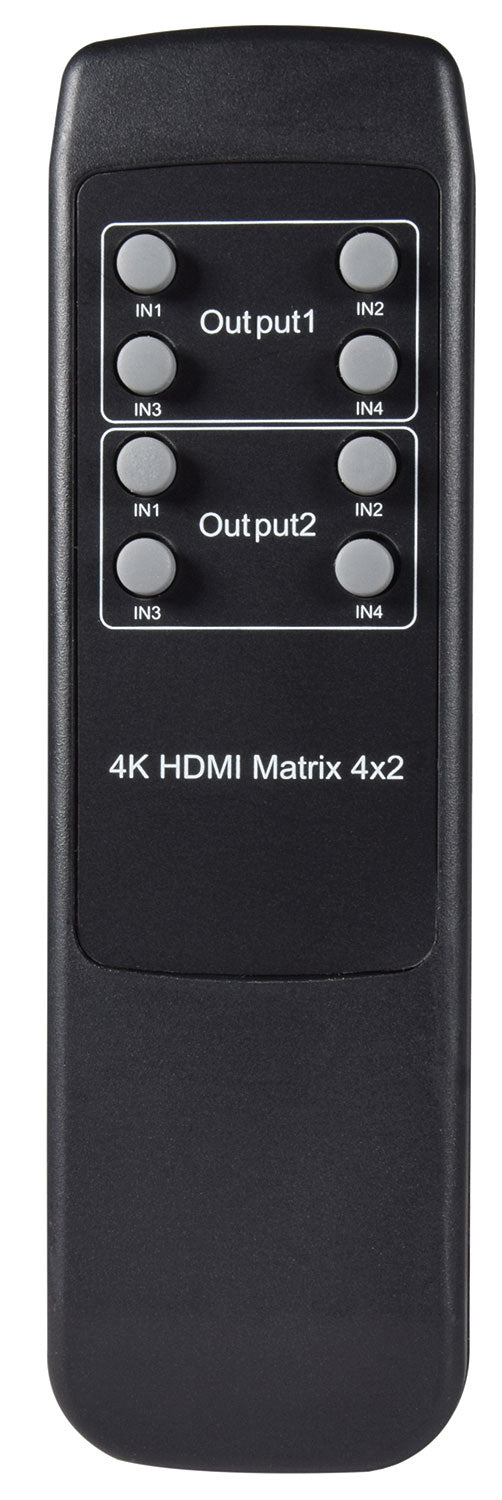

• IR remote control and UK power adaptor supplied

• Max. resolution 3840 x 2160 @ 60Hz
• Display colours 8/10/12bit deep colour
• HDCP version2.2
• Audio format DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD

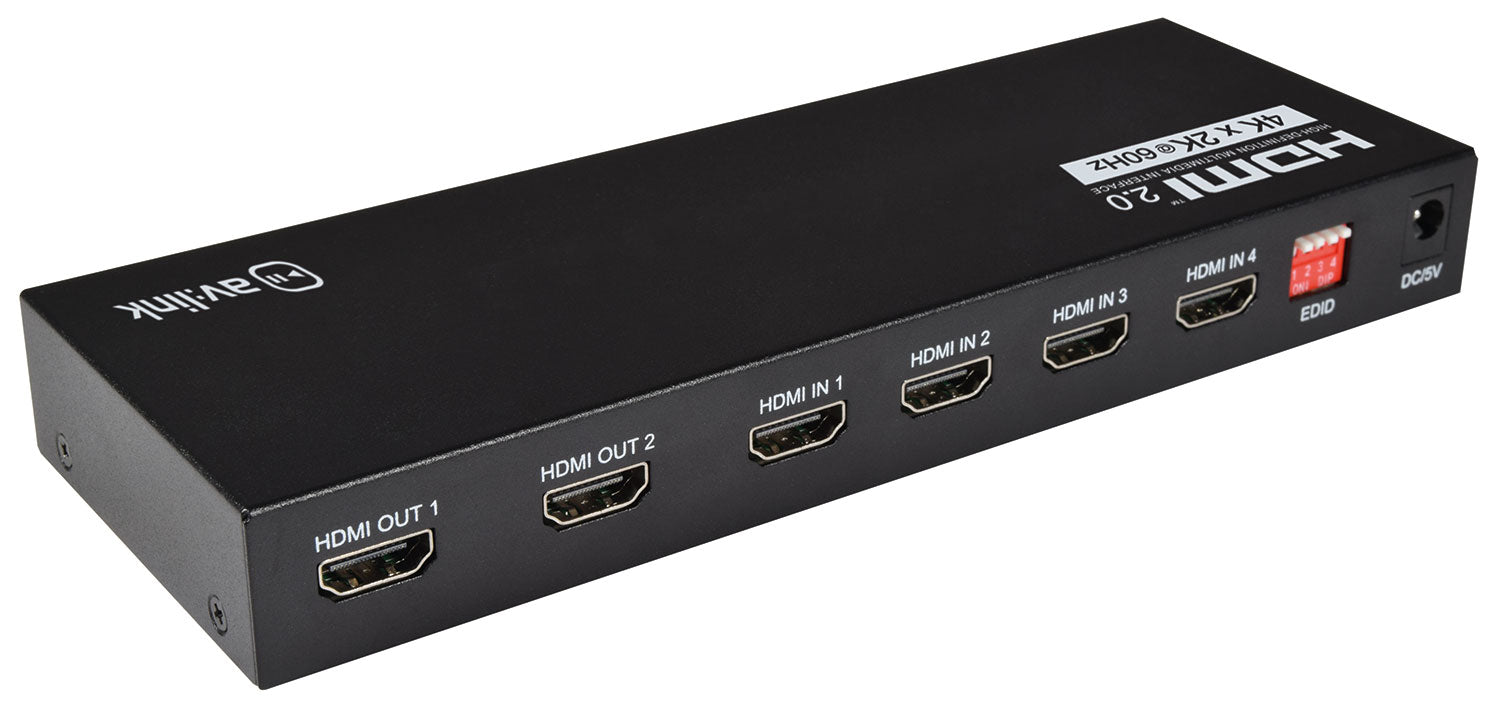

• Input connections 4x HDMI

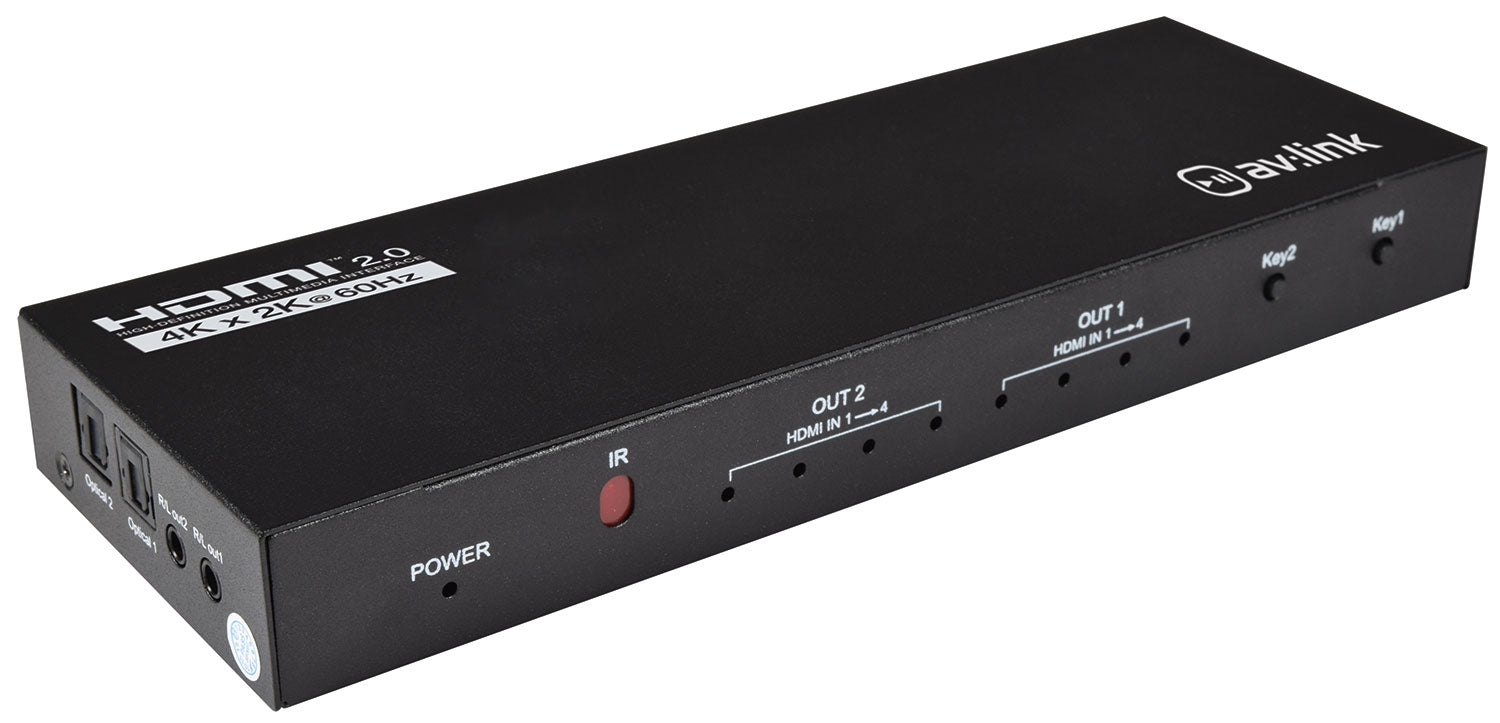

• Output connections 2x HDMI, 2x Optical (Toslink), 2x 3.5mm Stereo
• Max. bandwidth 600MHz
• Max. baud rate 3 x 6Gbps
• Transmission distance 30m max 4K @ 30Hz and FHD or 10m max 4K @ 60Hz
• Max. working current 600mA
• Operating temperature range -15°C to +55°C
• Battery : remote 2x AAA (not supplied)
• Power adaptor Input: AC (50Hz, 60Hz) 100-240V, Output: DC5V/1A
• Dimensions 99 x 70 x 27mm
• Weight 300g
