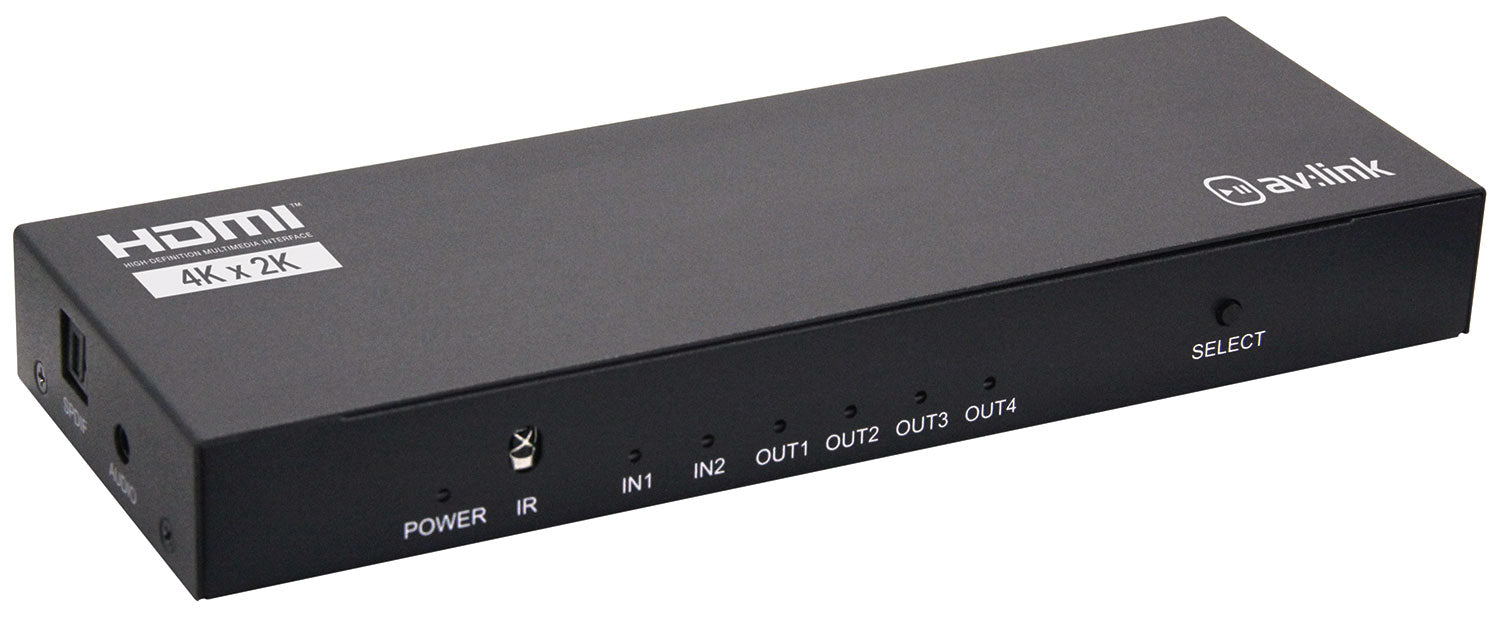

4K HDMI Switch/Splitter 2x4

A 4K HDMI splitter to switch between 2 source devices, with up to 4 display outputs. Use with HDMI cables of a combined 20m per output for HD resolution, or a combined 10m per output for 4K resolution, without signal loss. SPDIF and 3.5mm jack outputs allow the audio signal of the selected source device to simultaneously be channelled through a separate sound system. Compatible with the latest digital TV boxes making it ideal for hospitality and entertainment venues. Supplied with IR remote to switch between sources.

• Simple connection and operation
• Gold plated HDMI connectors for optimum signal transfer
• Supports HDMI resolutions up to 3840 x 2160 @ 60Hz for compatibility with the latest 4K digital TV boxes
• Supports DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD audio formats
• Digital SPDIF and analogue 3.5mm jack audio outputs
• Ideal for entertainment, hospitality and other commercial venues with multiple displays

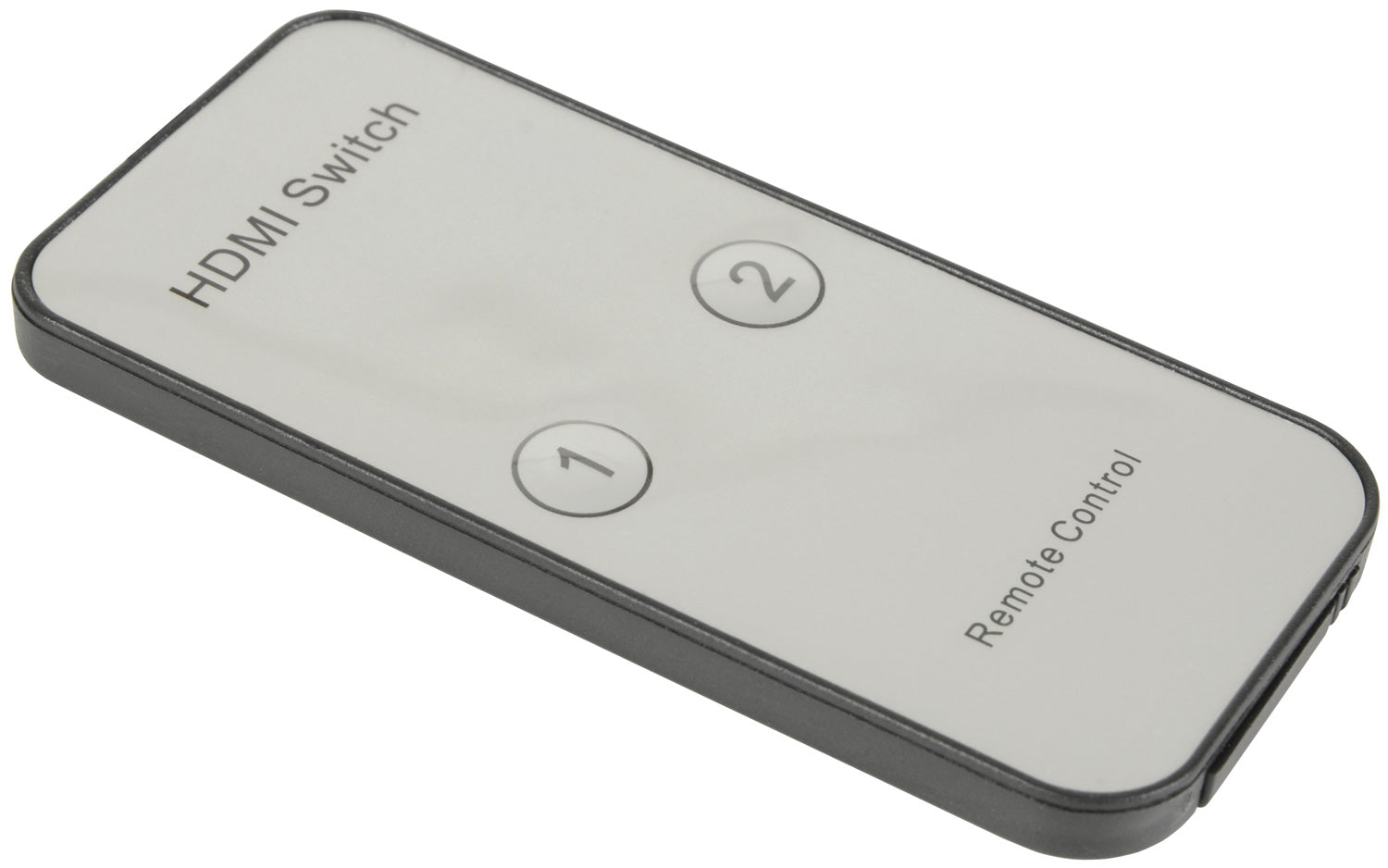

• IR remote and UK power adaptor supplied

• ResolutionUp to 3840 x 2160 @ 60Hz
• Display colours8/10/12bit deep colour
• HDCP version1.4 (input only)
• Audio formatDTS-HD, Dolby True, DTS, Dolby-AC3 and DSD
• Max. bandwidth600MHz
• Max. baud rate6Gbps
• Transmission distance20m max HD or 10m max 4K (20m input/output @ 1080p and 10m input/output @ 4K)
• Max. working current500mA
• Operating temperature range-15°C ~ +55°C
• Battery : remoteCR2025 (supplied)
• Dimensions200 x 70 x 25mm
• Weight305g
