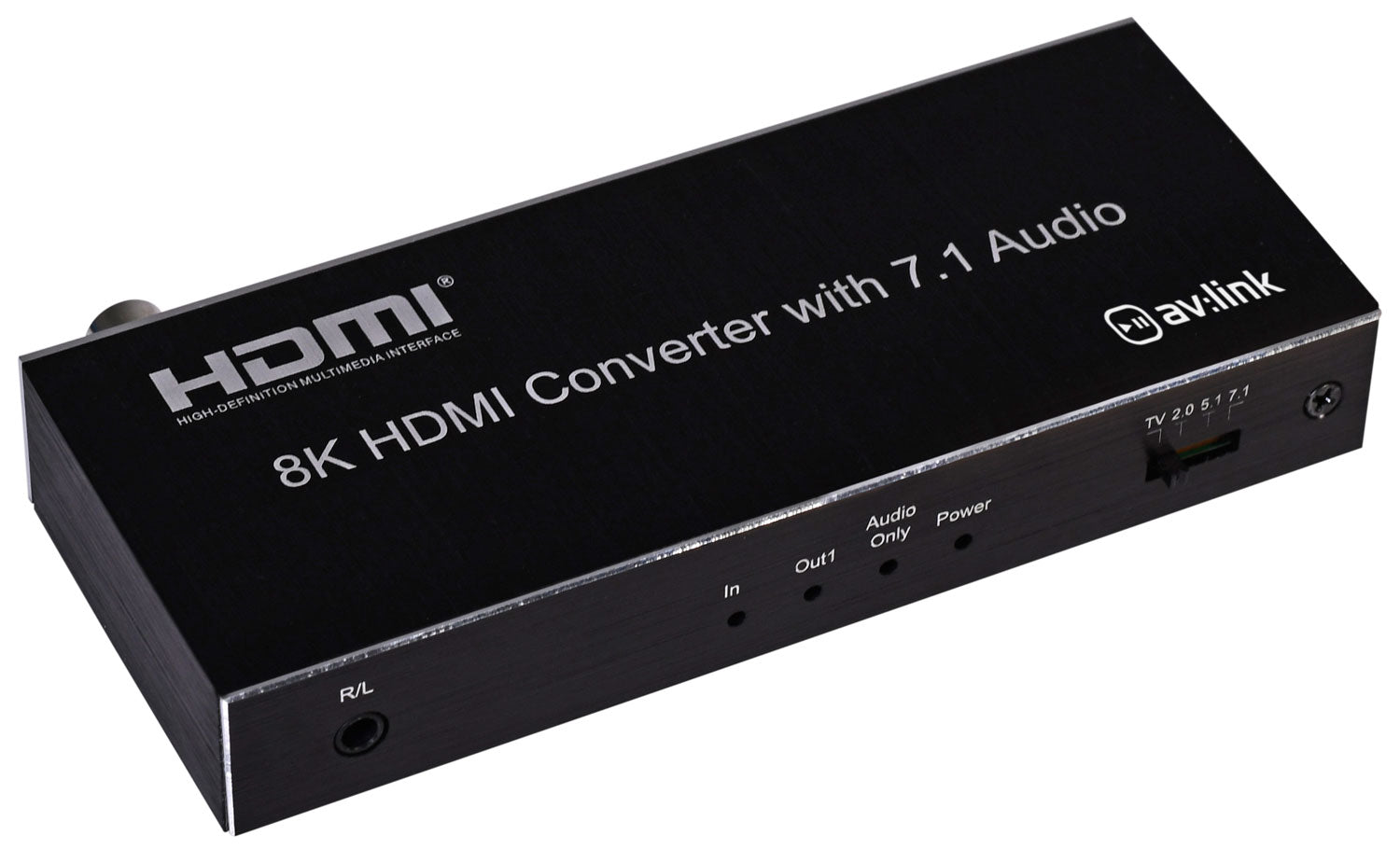

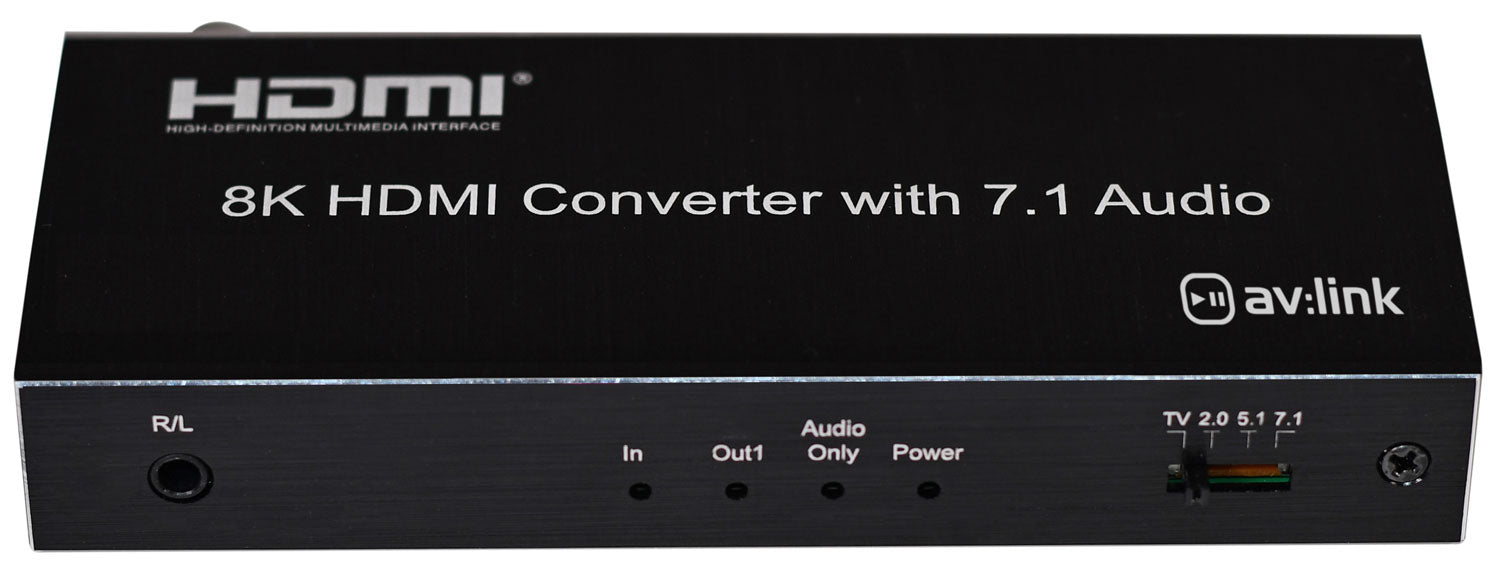

8K HDMI Audio Extractor

State of the art audio converter that extracts digital (HDMI, Toslink and Coaxial) and/or Analogue (3.5mm stereo) audio signals from a single 8K HDMI source device. With support for newer technologies including VRR, LPCM5.1/7.1 and Dolby Atmos this unit is ideal for audio separation from the latest PC's and games consoles.

• Extracts digital (HDMI, Toslink and Coaxial) and/or Analogue (3.5mm stereo) audio signals from a single HDMI source device
• Supports HDMI input/output resolutions up to 7680×4320 @ 60Hz
• Supports Variable Refresh Rate (VRR) and HDR10
• Simple plug and play installation and instant synchronisation without delay
• Attractive brushed metal finish

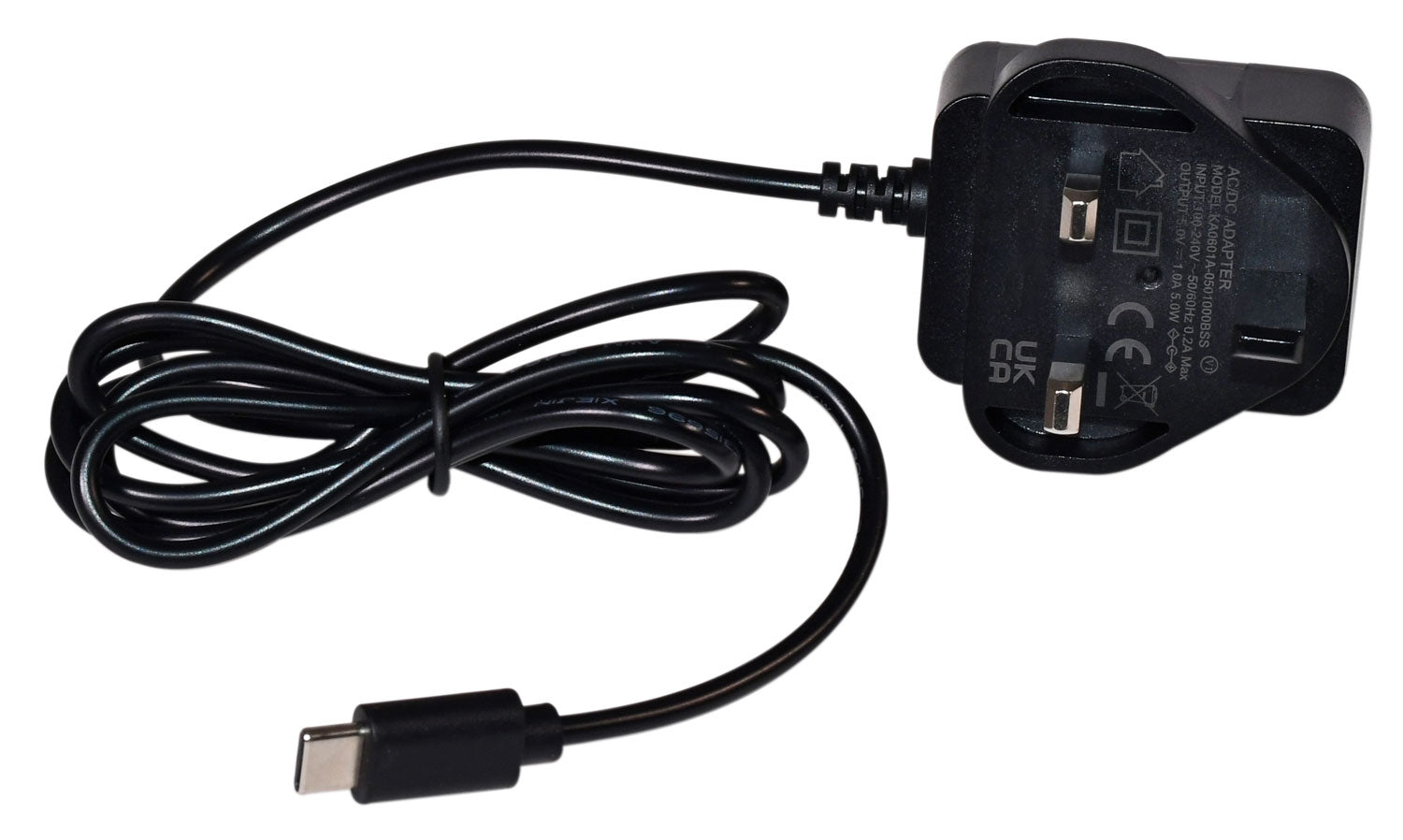

• UK mains adaptor supplied (DC5V/1A)

• Input connections HDMI (8K), USB-C (DC/5V power input)

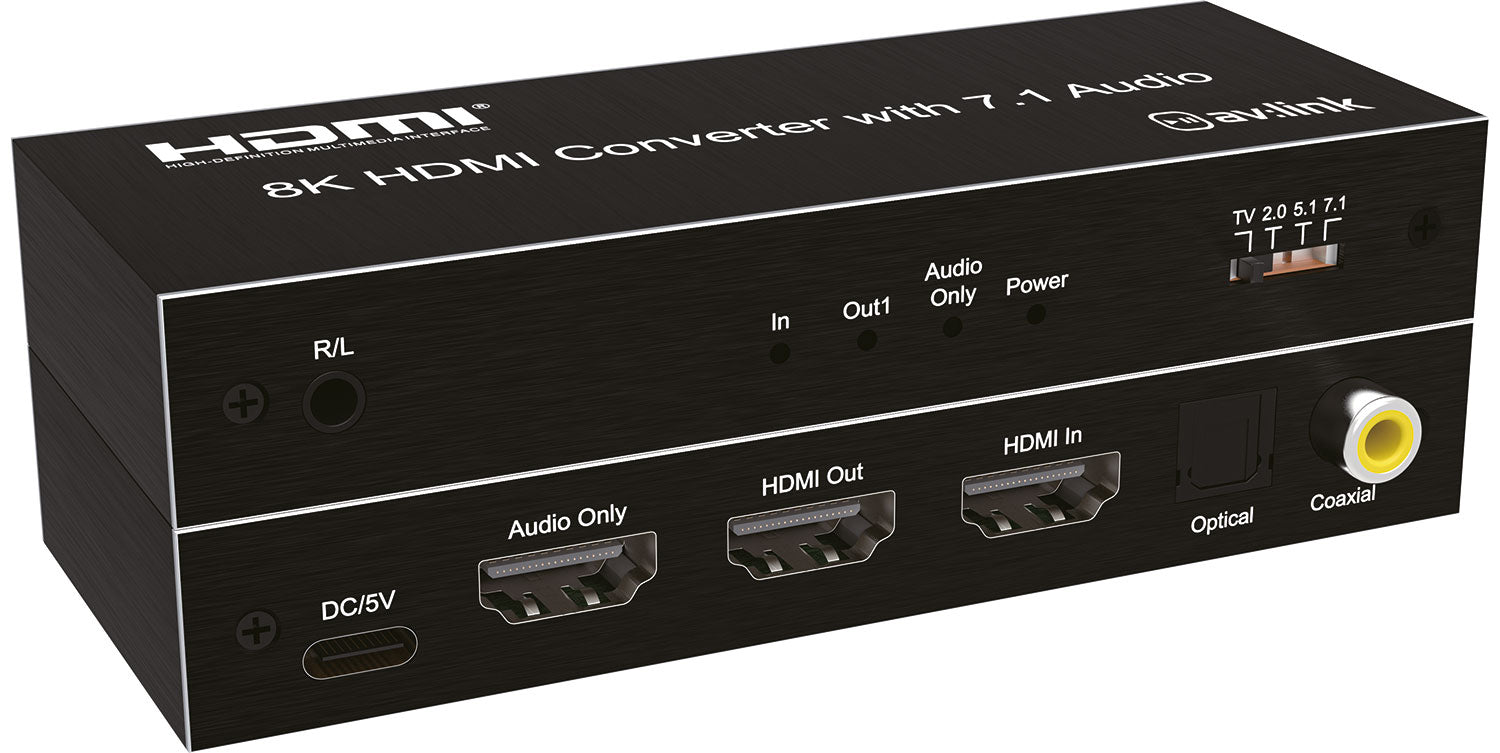

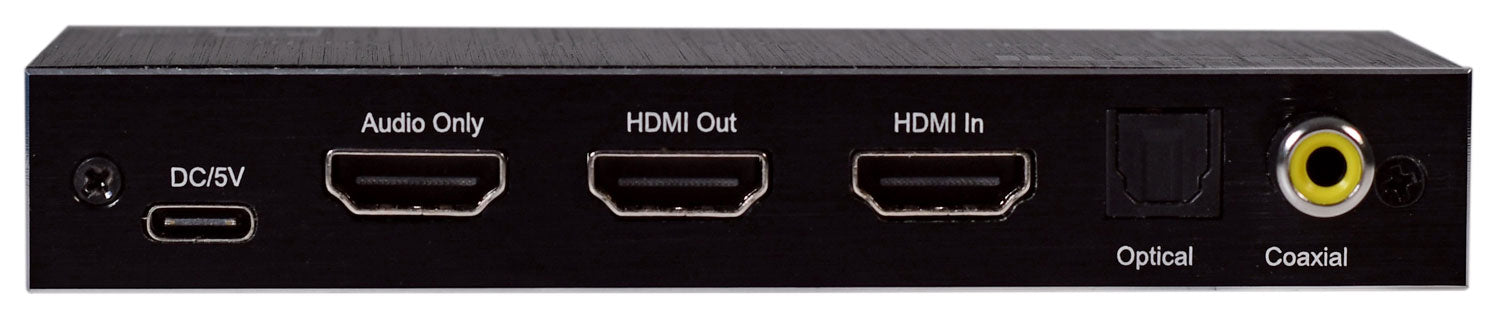

• Output connections HDMI (8K), HDMI (audio only), Optical (Toslink), Coaxial, 3.5mm (Stereo)
• Video resolution Up to 7680 × 4320 @ 60Hz
• Video format8/10/12 bit deep colour
• Max. baud rate40Gbps
• Audio output HDMI: PCM2.0, LPCM5.1/7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X
• Audio output SPDIF/COAX: LPCM2.0/5.1, Dolby Digital 2.0/5.1, DTS2.0/5.1
• Audio output3.5mm Jack: Analogue stereo 2.0ch
• Max. cable length Input: 8K/60Hz≤3m, Output: 8K/60Hz≤5m
• Power supply Input AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
• Dimensions121 x 57 x 19mm
• Weight118g
