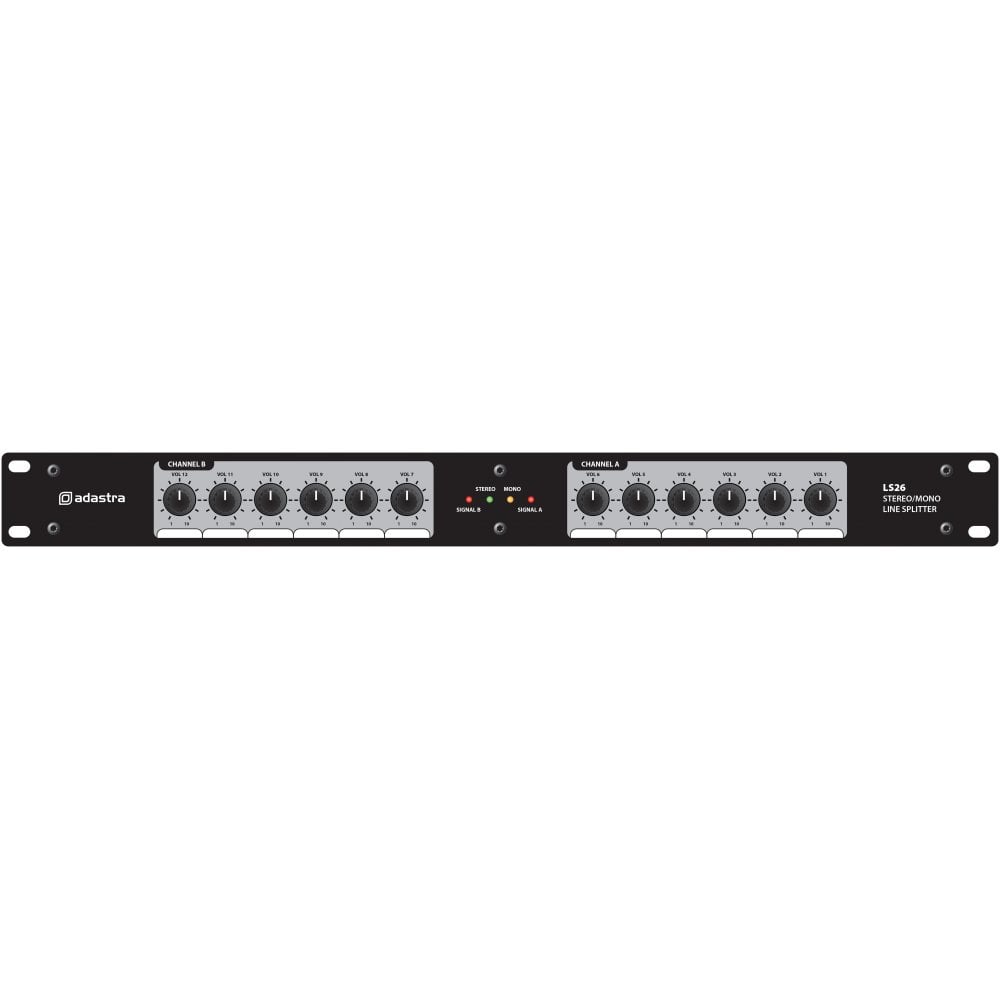

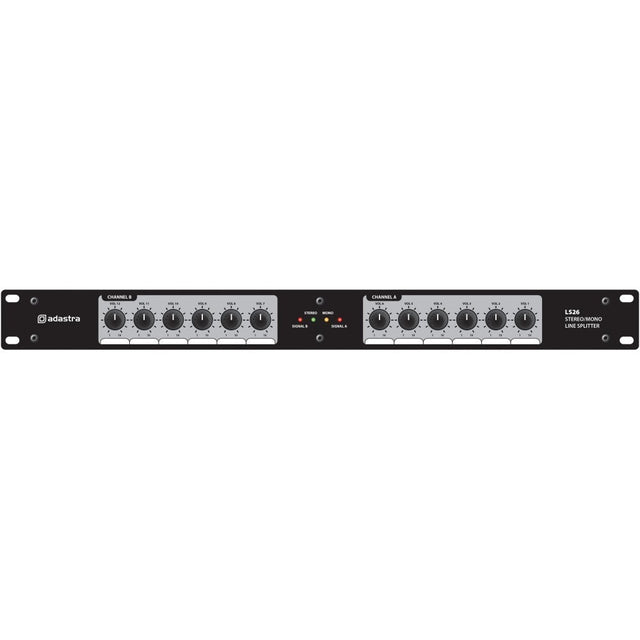

LS26 Line Splitter

Signal splitter with 2 line inputs which are buffered and divided across 6 outputs each. Can be used as a 6-way stereo splitter or can be switched as a mono system feeding all 12 outputs from input A. Applications include zone mixing, personal monitoring, effects patching and routing in complex recording setups.

• Up to 12 outputs from 1 or 2 inputs
• Individual volume control for each output
• Input peak LEDs

Power supply

• 115/230Vac, 50/60Hz (IEC)

Inputs

• A & B, (6.3mm jack)

Outputs

• 1 - 6 & 7 - 12 (6.3mm jack)

Input impedance

• 20k Ohms

Output impedance

• 220 Ohms

Frequency response

• 20Hz - 20kHz, +0/-1dB

Signal to noise ratio

• >95dB

THD

• <0.008%

Dimensions

• 483 x 44 x 170mm

Weight

• 2.0kg
