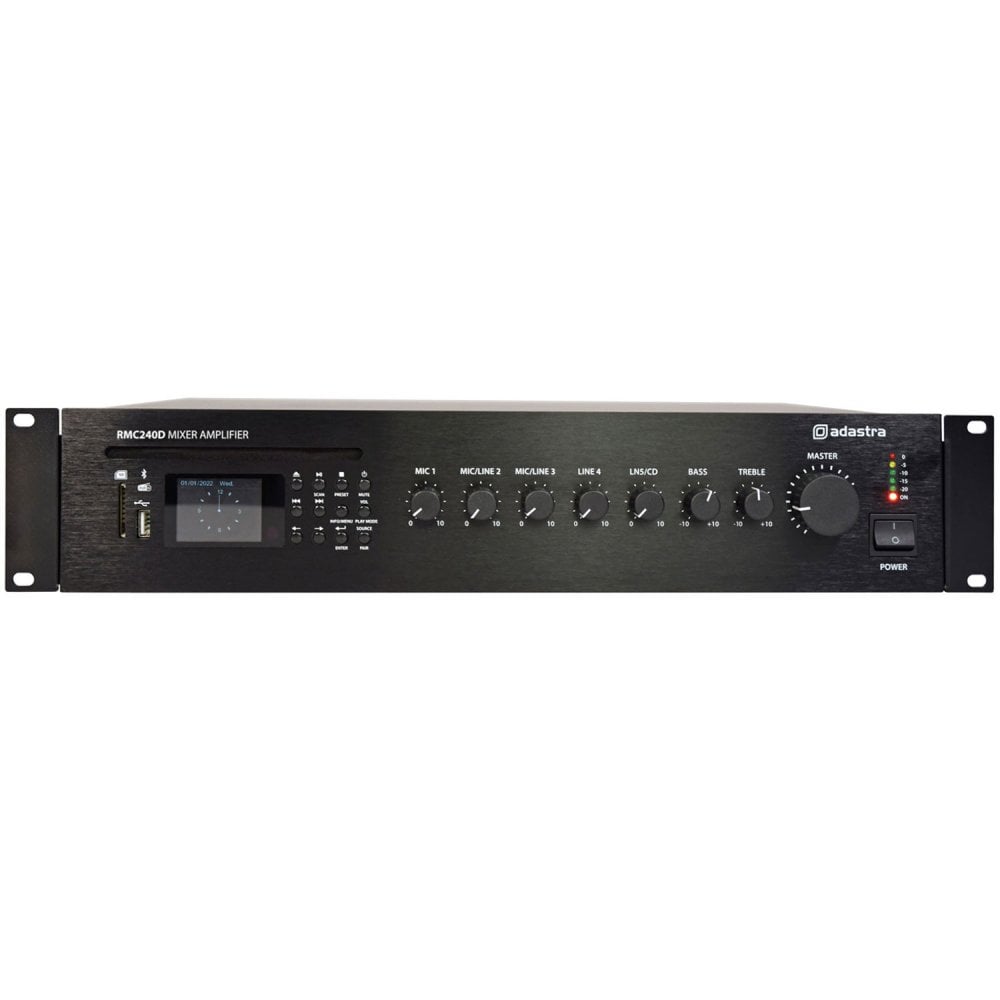

RMC240D RMC-series Mixer-Amp 100V with CD, DAB+, BT and MP3 Player 240W

100V line mixer-amplifiers with built-in multi-format media player. 5 input channels include a balanced XLR microphone input with switchable phantom power and Vox override, 2 mic/line jack inputs and 2 RCA line inputs. A powerful class AB amplifier section is paired with a digital switch-mode power supply and 100V transformer for reliable power delivery from an energy efficient power section. A built-in CD player provides audio playback alongside a USB/SD media player with an integral DAB+ and FM radio tuner. A Bluetooth® receiver enables pairing to a smartphone for wireless playback of stored tracks. Bass & Treble EQ and Master volume control the overall output, which can power either low impedance or 100V line speakers. A comprehensive solution for commercial sound installations.

• 5 input channels
• DAB+ and FM radio tuner
• Slot feed CD player
• Bluetooth connectivity
• USB/SD mp3 player
• 100V or 4-16 Ohms output
• Supplied with 19" rack-mount ears

Weight

• 10.4kg

Power : rms

• 240Wrms (100V or 4 Ohms)

Power supply

• 170-264Vac, 50Hz (IEC)

DC power

• 24Vdc (screw terminals)

Inputs

• Mic XLR, 2 x mic/line jack, 2 x RCA line

Input sensitivity : mic 1 (balanced)

• -53dBV

Input impedance : mic 1

• 5k Ohms

Input sensitivity : line (unbalanced)

• 15dBV (-18.5dBV line 5)

Input impedance : inputs 2-5

• 1k Ohms

Line output

• RCA

Speaker outputs

• 100V / 4-16 Ohms / COM terminals

Bluetooth version

• 5.0

Controls

• Mic1, mic/line2+3, line4+5 (USB), bass, treble, master volume

Equaliser : bass

• 100Hz ±10dB

Equaliser : treble

• 10kHz ±10dB

Rear panel switches

• Mic/Line (2 + 3), Phantom, Vox

Phantom power

• +20V (MIC 1 input)

THD

• <1.0%

Dimensions

• 433 x 320 x 89mm
