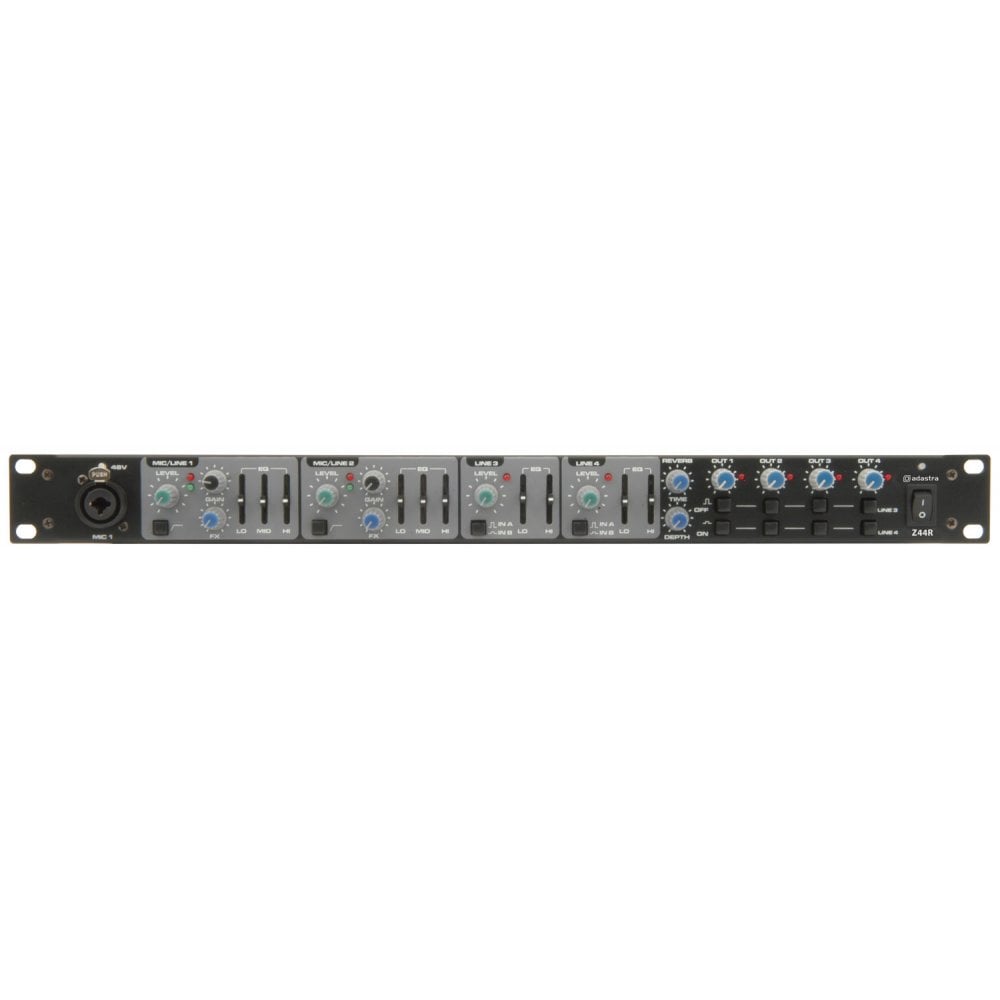

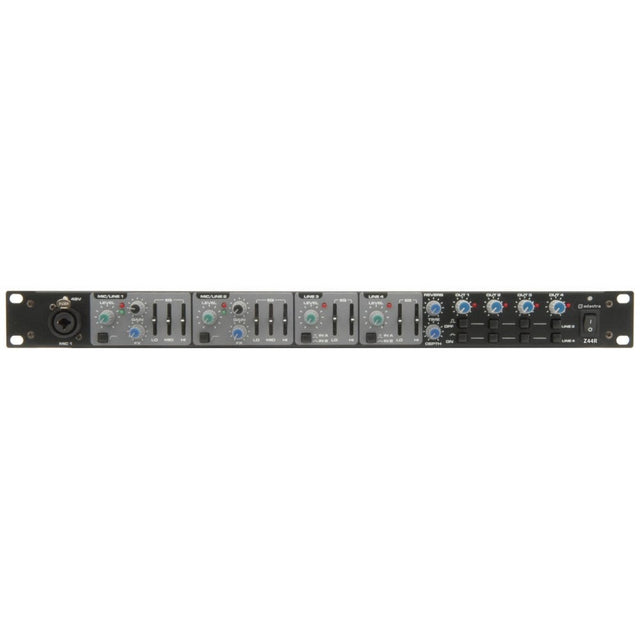

Z44R Multi-purpose 1U Mixer

1U live/zoning rack mixer with 2 mic/line inputs and 2 stereo line inputs feeding 4 stereo outputs. Mic channels feed to all outputs, whereas the stereo channels are switchable to any required zone. Applications vary from additional vocal mixing for DJ set-ups to multi-room zoning for venues and many other scenarios.

• Switchable 48V phantom power
• Lo-cut rumble filter for mic channels
• 3-band EQ for mic channels
• 2-band EQ for stereo channels
• Foot-switchable internal DSP reverb or ext. FX
• 4 stereo zone outputs with level controls

Power supply

• 230Vac, 50Hz (IEC)

Mic/line channel inputs

• Ch 1 front combo and rear jack, Ch 2 combo (rear)

Mic/line channel controls

• Level, Lo-cut, Gain, FX and Lo/Mid/Hi EQ faders
• Line 3 + 4 stereo inputs
• Input A (L+R) 6.3mm jack / Input B (L+R) RCA
• Line 3 + 4 stereo controls
• Level, In A/B and Lo/Hi EQ faders

Output connections

• Outputs 1-3 (L+R) RCA, Output 4 (L+R) 6.3mm jack

Output controls

• Level, Line 3 on/off, Line 4 on/off

FX connections (6.3mm jack)

• Footswitch, Send (defeats onboard reverb), L+R Return

FX controls

• Reverb time, Depth (onboard or external level)

Indicators (LED)

• Power, 48V, Mic/line signal+peak, Line peak, Output peak

Fire alarm contacts

• Modular terminal, make-to-mute all except Mic 1

Dimensions

• 483 x 44 x 220mm

Weight

• 2.75kg
