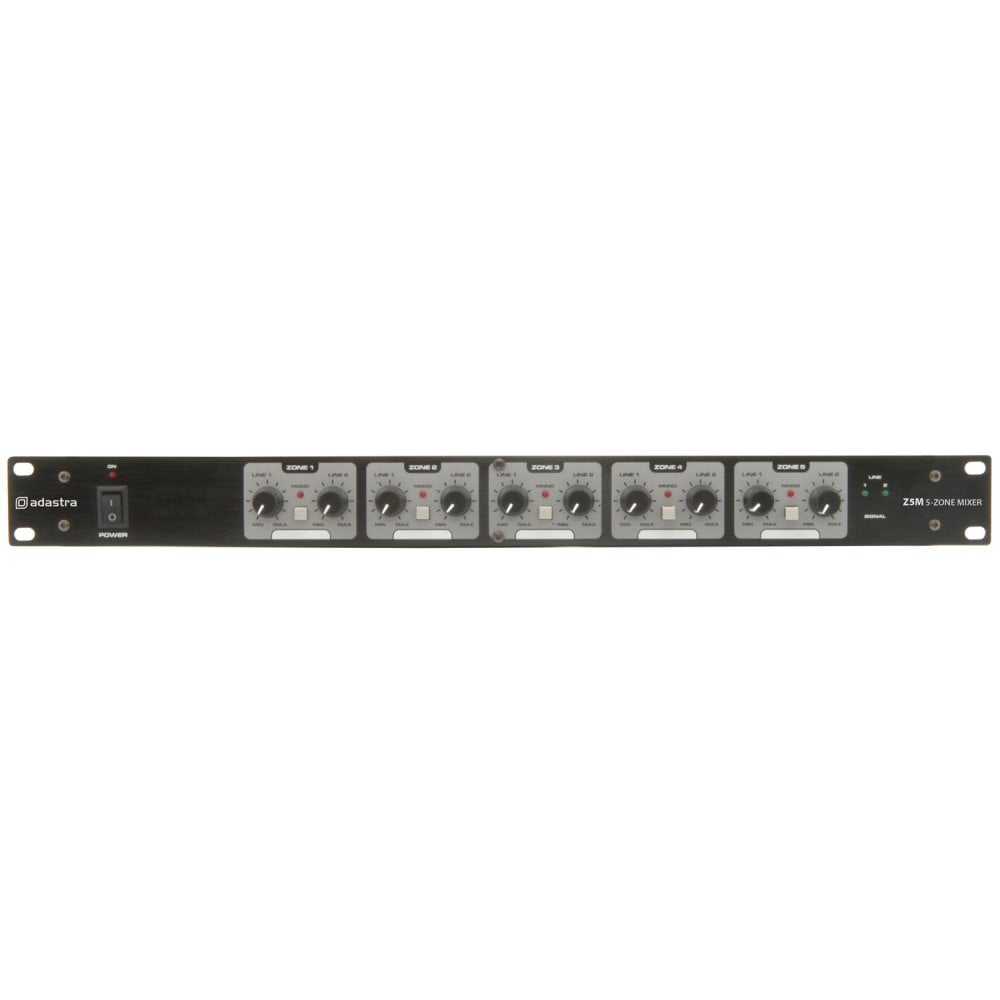

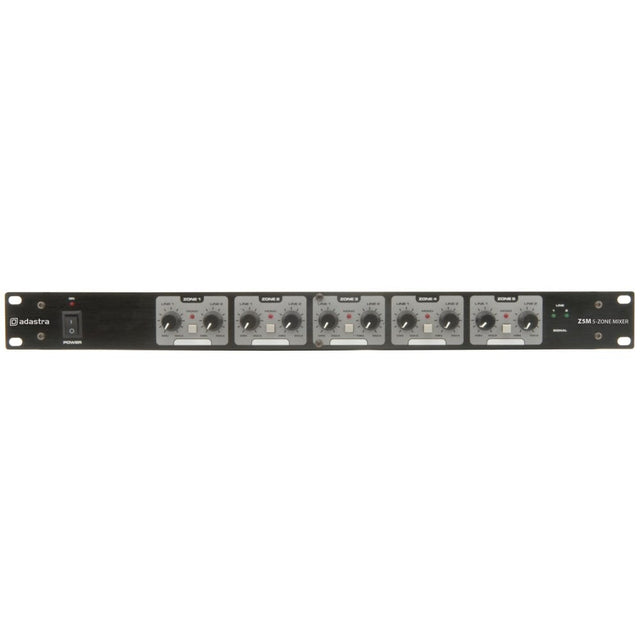

Z5M Zoning Mixer

2 input, 5 zone mixer with individual volumes for both inputs and a mono switch for each zone. All inputs and outputs are stereo via balanced XLR connectors. Acts as the central mix and control in an installation serving up to 5 separate stereo speaker zones.

• 2 inputs to 5 zones
• Mono selectable for each zone
• Fully balanced XLR connections

Power supply

• 115/230Vac 50/60Hz (IEC)

Inputs

• Line 1 L+R, Line 2 L+R, balanced XLRF

Outputs

• Zone 1 to 5 L+R, balanced XLRM

Input impedance

• 40k Ohms

Output impedance

• 220 Ohms

Frequency response

• 20Hz - 25kHz, +0/-1dB

Signal to noise ratio

• >100dB

THD

• <0.005%

Dimensions

• 483 x 175 x 44mm

Weight

• 2.2kg
