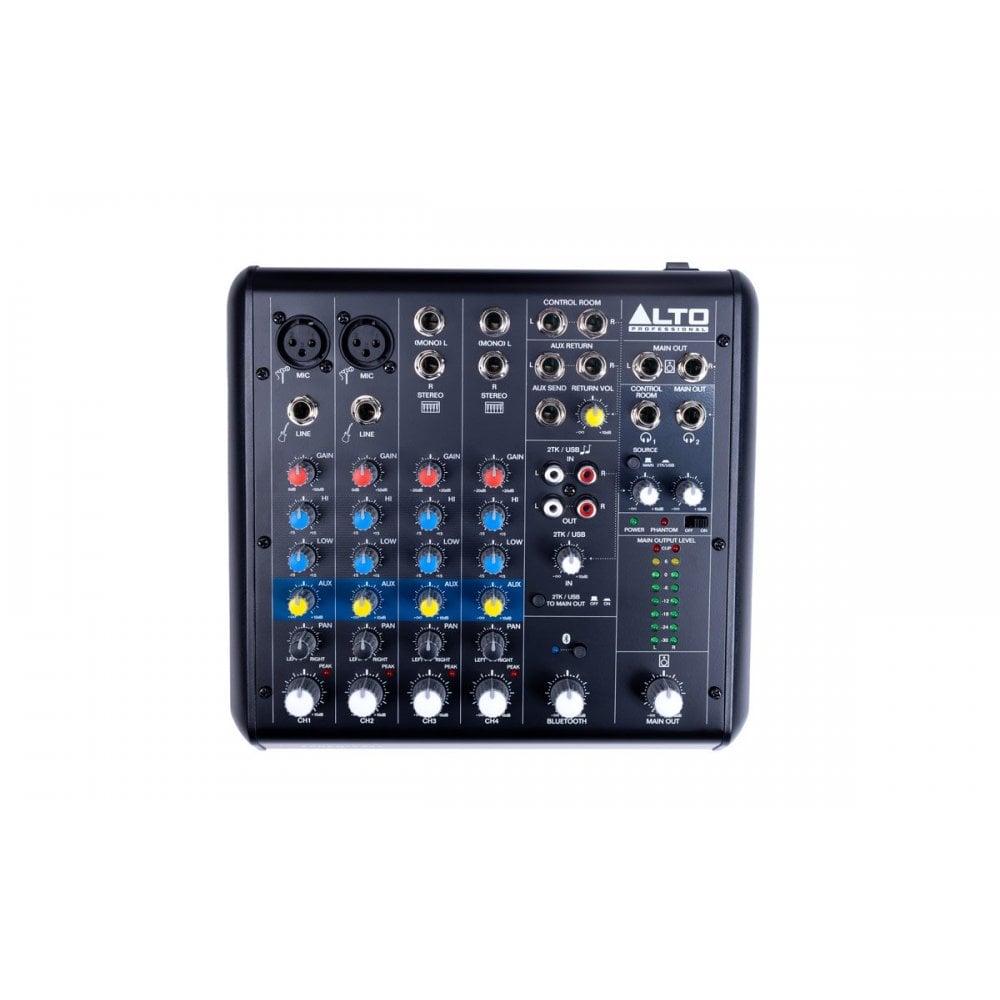

Alto True Mix 600

Whether you’re making music at home, recording a podcast, or livestreaming online, being able to hear yourself is essential. The TrueMix 600 features a variety of output and routing options to handle any scenario. There are two headphone outputs, each with their own independent volume control knob. If you need to send your audio signals to another destination like an external effects processor, there is an AUX send/return and individual AUX send controls on each individual channel so you can always dial in the perfect mix. For recording, the USB output sends a copy of the main outputs to your computer, or you can connect the 2-Track in/out to an external recorder which can also be sent directly to one of the headphone outputs. The TrueMix 600 delivers everything you need to take full control of your audio routing.

• USB I/O for audio playback and stereo recording
• Dedicated Bluetooth channel with mix-minus return for feedback-free phone pairing
• Dual headphone outputs with independent volume control
• 1/4” Main, Tape, Headphone, and AUX outputs
• Two mic input channels with phantom power and balanced line inputs
• Two stereo input channels with balanced 1/4” TRS jacks
• Two-band EQ on all channels
• 2-track inputs w/ assignable routing: Main Mix or Headphone Out
• Eight-segment LED VU meter for precise level monitoring

Technical Specifications

• Frequency Response All inputs: 20 Hz – 22 kHz (±1 dB)
• THD+N (Total Harmonic Distortion) All inputs: < 0.005% (@ 4 dBu, 1 kHz)
• Gain Range Mic inputs (Channels 1-2): 0 – 50 dB Line inputs (Channels 1-2): 15 dBu – 35 dBu Line inputs (Channels 3-6): -20 dBu – +20 dBu
• Max Voltage Gain 70 dB (MIC INPUT to MAIN MIX OUTPUT) 80 dB (MIC INPUT to CTRL ROOM / PHONES OUPTUT) 60 dB (MIC INPUT to AUX SEND)
• SNR (Signal-to-Noise ratio) All inputs: > 110 dBu
• Crossover Frequency Adjacent inputs: < -80 dB @ 1 kHz Inputs to outputs: < -75 dB @ 1 kHz (stereo L/R, Channels 1-2, panned hard left or right)
• Phantom Power +45 ~ +49V with switch control
• Impedance Mic inputs: 3.9 kΩ All other inputs: > 10 kΩ Aux outputs: 1 kΩ All outputs: 120 Ω
• Equalization High: ±15 dB @ 12 kHz Low: ±15 dB @ 80 Hz
• Bluetooth Profile: A2DP Module: Bluetooth 5.0 Operating Frequency: 2402 MHz – 2480 MHz Range: 100 ft. / 30.5 m
• Connectors (5) 1/4” (6.35 mm) TRS outputs (6) 1/4” (6.35 mm) TRS stereo L/R inputs (2) 1/4" (6.35 mm) TRS headphone output (2) 1/4" (6.35 mm) TRS mono input (1) Standard RCA L/R input (1) Standard RCA L/R output (2) XLR inputs (1) USB type-B input (1) DC power input
• Controls (1) Power switch (10) volume control knobs (1 per input, 1 aux return, 1 2TK In, 2 headphone out, 1 Bluetooth, 1 Main Out) (4) Stereo pan control knobs (1 per input) (4) Aux volume control knobs (1 per input) (4) EQ Low control knobs (1 per input) (4) EQ Hi control knobs (1 per input)
• (4) Gain control knobs (1 per input) (3) Locking switch buttons (2 source select, 1 Bluetooth) (1) Horizontal sliding switch
• Indicators (1) Power LED (4) Peak LEDs (1) Phantom LED (16) Main Out Meter LEDs (1) Bluetooth LED
• Power Connection: DC Voltage: 18V, 1A Consumption: 18W
• Dimensions
• (width x depth x height) 8.9” x 8.5” x 2.9” 225.5 x 217 x 74 mm
• Weight 3.2 lbs. 1.4 k
