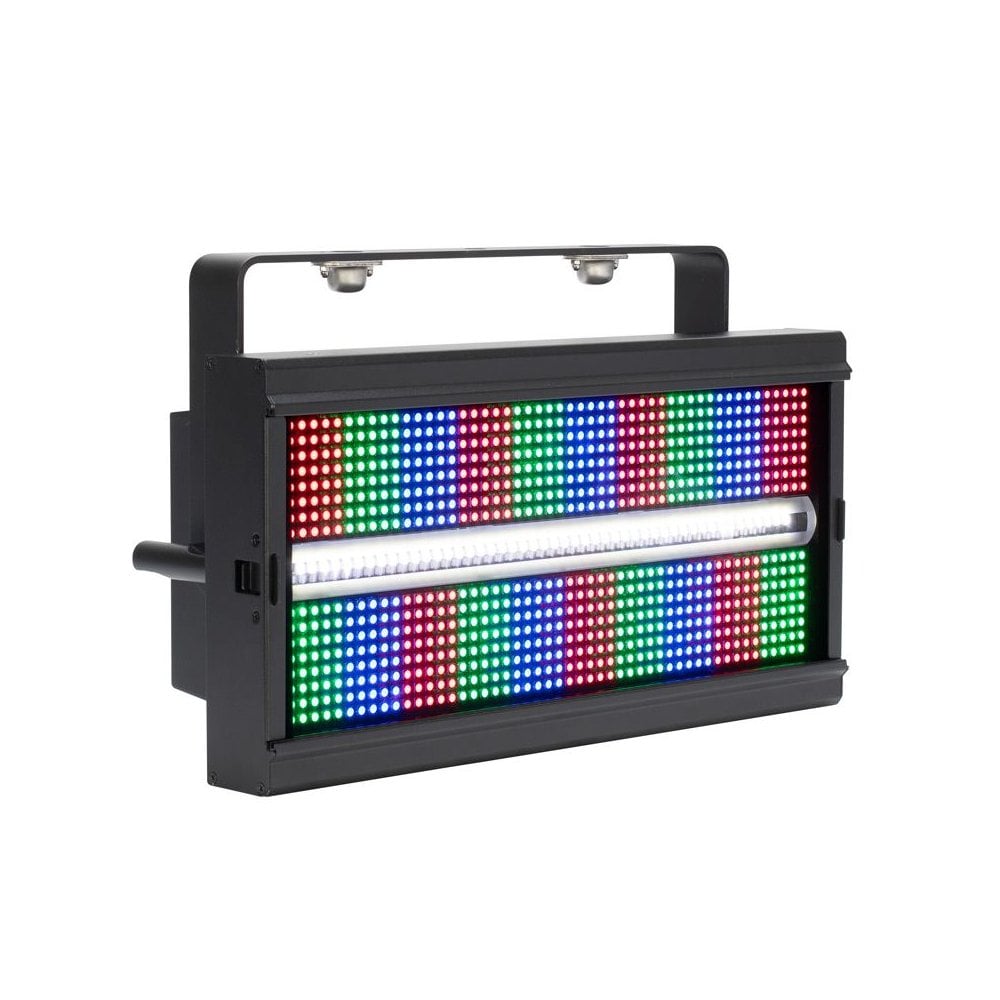

Jolt Panel FX 2 ** EX DISPLAY NO BOX **

*** EX DISPLAY NO BOX ***

Light Source:

• 800 x 0.5W RGB SMD LEDs + 48 x 5W Cool White SMD LEDs

• 73° Beam Angle

• 111° Field Angle

• RGB LED Specs: Red: 620-630nm; Green: 515-530nm; Blue: 460-470nm

• White LEDs CCT: Typical 7400K (Min 6900 - Max 8000), 472nm

• CRI: 69.4

• 50,000 Hour Average LED Life

Control:

• Control Protocol: DMX, Aria X2 and RDM

• 14 DMX Modes: 6, 9, 13, 18, 20, 36, 41, 43, 51, 81, 83, 126, 141 and 143 channel modes

• Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)

• Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law and S Curve)

• 0-100% Smooth Dimming

• Strobe: Ramp Up / Down, Lighting and Random

• Max Strobe Rate 20Hz. Min Strobe Rate: 1Hz.

• Selectable LED Refresh Rate: 900Hz - 25kHz

• With Wired Digital Communication Network

• Display: OLED display with 4-button touch menu

Connections:

• Data: IP65 Locking 5-pin DMX In/Out

• Power: IP65 Locking Power In/Out

Electrical:

• 100-240V 50Hz/60Hz (Auto Sensing)

• Max Power Consumption: 214W @120V., 208W @230V.

• Max Power Link: 6pcs @120V., 12pcs @230V.

• Fuse Protected: T5A/250V Glass Fuse (5*20MM)

Dimensions / Weight:

• Length: 5.28" (134.2mm)

• Width: 16.42” (417mm)

• Height: 10.26” (260.5mm)

• Weight: 13.67 lbs. (6.2 kg)

What’s Included:

• 1 x IP65 Locking Power Cable

• 1 x Frost Filter
