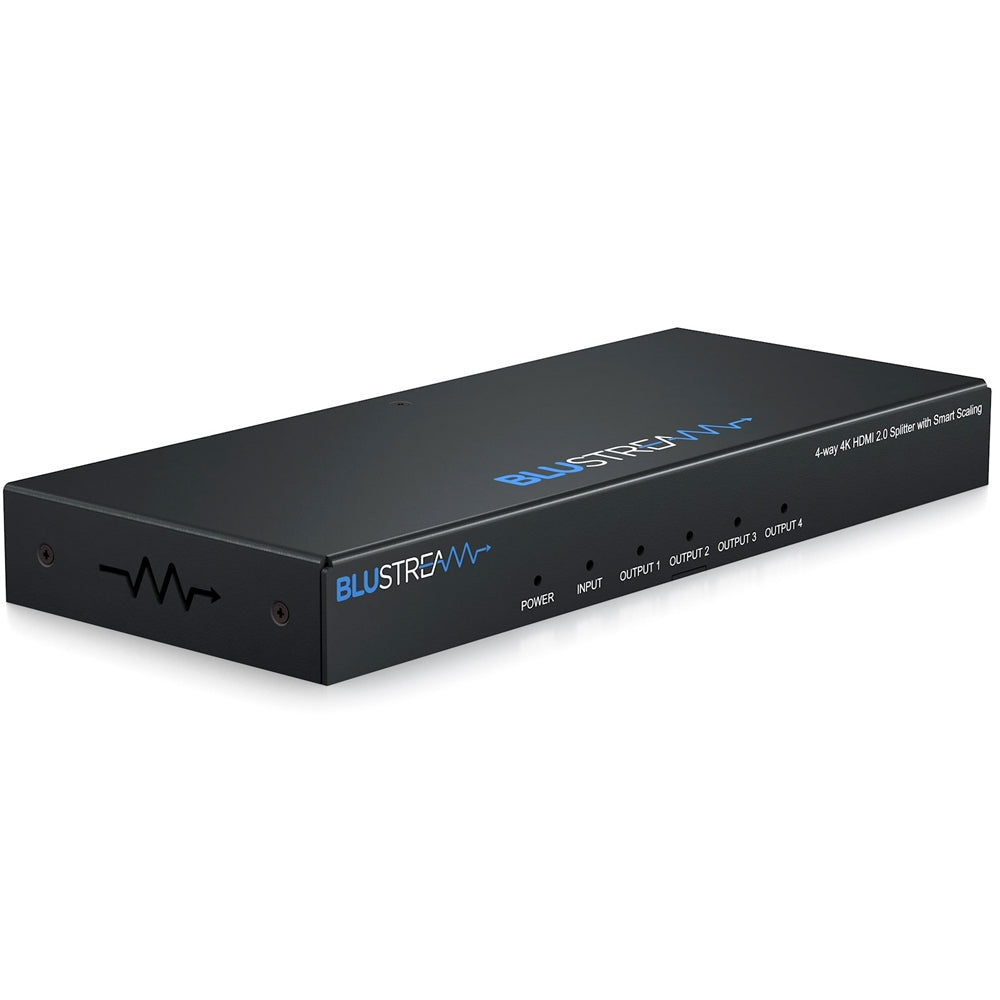

Blustream SP14CS HDMI Splitter, 4K, IN: 1x HDMI OUT: 4x HDMI / 1x Jack, HDCP, Downscaler

The Blustream SP14CS HDMI 2.0 splitter distributes a single HDMI source to four simultaneous outputs with digital (S/PDIF) and analog audio breakout. The splitter supports HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4. It offers automatic video down-conversion on each output, allowing all connected displays to operate at their maximum supported resolution.

Features

• 1 HDMI input distributed to 4 HDMI outputs
• Supports HDMI 2.0 18Gbps specification including HDR
• Supports up to 4K UHD 60Hz 4:4:4
• Video down-conversion on outputs
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio passthrough
• HDMI audio breakout to both analog L/R audio and optical digital outputs simultaneously
• Advanced EDID management
• HDCP 2.2 compliant

Technical Data

• Video input connections: 1x HDMI Type A
• Video output connections: 4x HDMI Type A
• EDID: 4-PIN DIP switch
• Smart scaling: 4-PIN DIP switch
• Audio output connections: 1x Digital (Optical), 1x Analog Audio L/R (3.5mm stereo jack)
• Operating temperature: 32°F to 104°F (0°C to 40°C)
• Storage temperature: -4°F to 140°F (-20°C to 60°C)
• Power supply: 5V/2A DC
• Dimensions (W x D x H): 203 x 84 x 23 mm
• Weight: 0.80 kg

Package Contents

• 1 x SP14CS
• 1 x 5V/2A DC power supply
• 1 x Mounting kit
• 1 x Quick start guide
