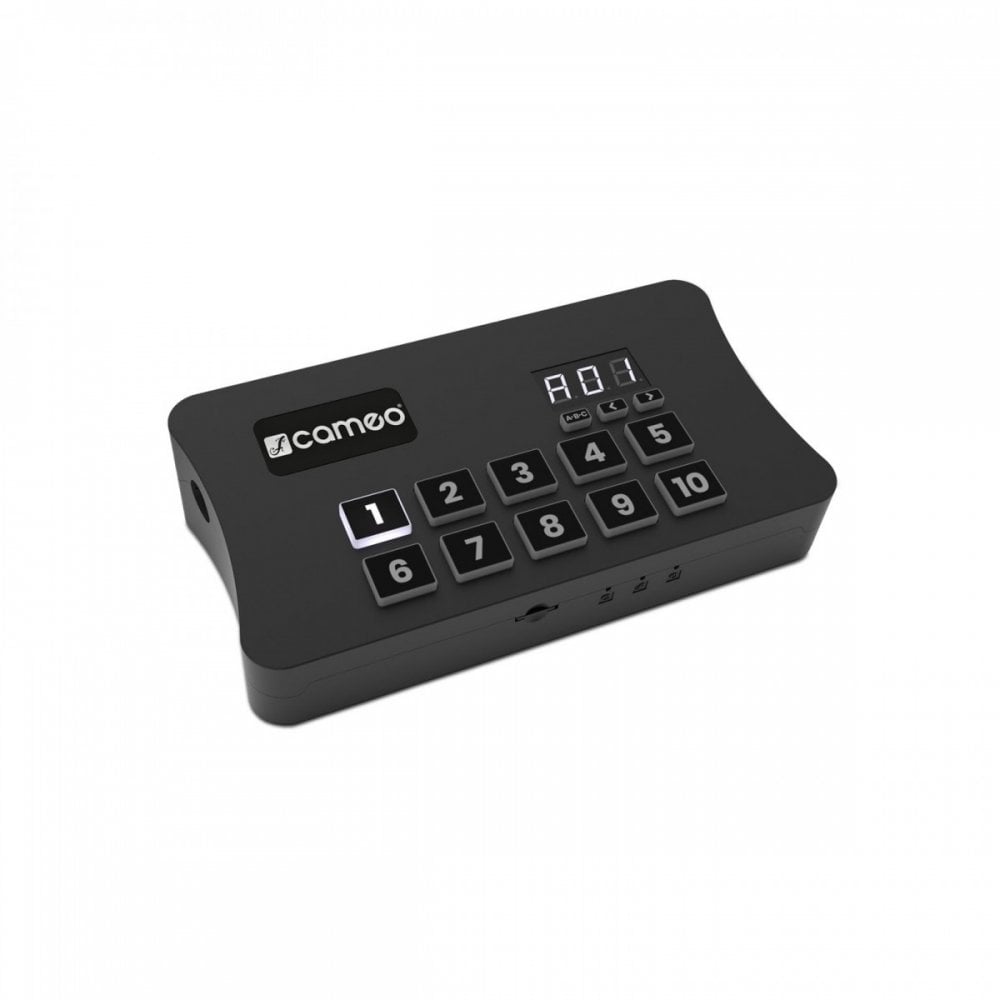

Cameo DVC Cue 1024 Channel DMX Interface

You can conveniently control DMX-compatible lighting devices from your PC and Mac with the Cameo DVC CUE Interface and the associated Cameo software powered by Daslight, In both live and standalone mode, the plug- and-play interface offers you two DMX512 universes, which can be extended to four universes and thus 2048 DMX channels. The interface has a USB-C port for power supply and computer connection, four 3-pin DMX outputs, and an Ethernet port for external control. To use as a stand-alone unit without a computer, you can save pre-programmed scenes on a microSD card and call them up directly on the interface via ten illuminated buttons. The ABC button navigates through five zones, while the arrow keys navigate through 99 scenes. Stand-alone operation requires a commercially available 5 V USB power supply.

Features

• Use your PC or Mac to control DMX-compatible lighting through the DVC CUE and Cameo software
• Two DMX512 universes make a total of 1024 DMX channels which can be extended to 2048 using Smart Upgrade Technology
• Navigate across five zones with a total of 99 scenes, using the ABC button and arrow buttons respectively
• Connect with your lighting rig using the 3-pin DMX inputs and outputs
• Control externally using the USB or ethernet ports
• Use in standalone mode by pre-loading your show on a microSD card and calling up scenes with the numbered buttons

Specifications

• Live Channels: 1024
• Stand Alone Channels: 512
• Software Mode: full Cameo D4, full Daslight D4
• Operating systems: Android, iOS, Mac OS, Windows
• Connections: ethernet In/Out, USB-C In
• Memory: microSD, SDHC (max 32gb)
• Housing Colour: grey
• Power: 5 - 5.5V DC 0.6A
• IP Class: IP20
• Dimensions(WxHxD): 160 x 90 x 45mm
• Weight: 0.3kg
