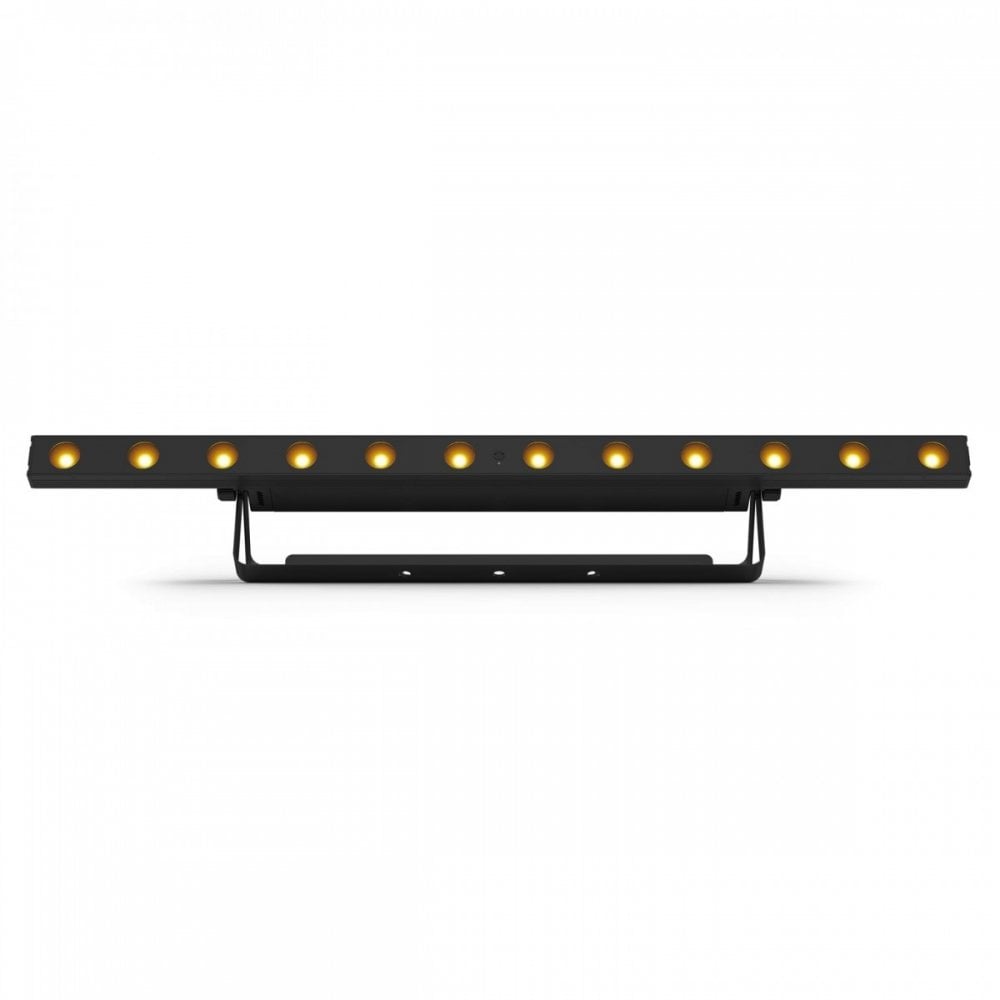

COLORband Q3BT ILS

New Integrated Lighting System (ILS)

DMX is daunting, but Chauvet DJ’s Integrated Lighting System (ILS) isn’t. Using the new GigBAR Move + ILS or ILS Command as its core, ILS enables advanced, coordinated shows across multiple fixtures. So you can get a complete lighting ecosystem, without the complications.

Any ILS fixture can slave to the GigBAR Move + ILS or be controlled by the new ILS Command. Lights and effects will then work together, without the need for any programming. Just use automatic, sound-to-light, or manual control modes. And you can make adjustments to colour, speed and more as you go.

Please note: ILS functionality requires either the GigBAR Move + ILS or ILS Command (not included)

Features

• Versatile RGBA wash light with a wide range of control options
• Twelve RGBA LEDs offer powerful, atmospheric wash effects to pair with any event
• Three distinct LED zones with individual control for unique, colourful effects
• Bluetooth connectivity offers standalone control from smartphone or tablet
• USB port for compatibility with Chauvet's D-Fi wireless DMX receivers
• Offers master/slave functionality and standard DMX control via D-Fi
• ILS compatibility for wireless control and programming using the Chauvet GigBAR Move
• Compatible with Chauvet's IRC-6 infrared remote control (sold separately)
• Power output for power linking multiple light fixtures together

Specifications

• DMX Channels: 4, 6, or 16
• DMX Connectors: 3-pin XLR
• Light Source: 12 LEDs (quad-colour RGBA), 4 W (1 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Beam Angle: 50°
• Coverage Angle: 108°
• Illuminance: 509 lux @ 2 m
• Power Linking: 10 units @ 120 V, 19 units @ 230 V
• Input Voltage: 100 to 240 V AC, 50/60 Hz (auto-ranging)
• Power and Current:
• 54 W, 0.8 A, @ 120 V, 60 Hz
• 52 W, 0.4 A @ 230 V, 50 Hz
• Weight: 6.6 lbs (3 kg)
• Bluetooth Version: 4.2
• Max. Unobstructed Distance: 150 ft (45.7 m)
• Operating Frequency: 2.4 GHz
• Dimensions: 39.3 x 3.8 x 5.5 in (1000 x 98 x 140 mm)
