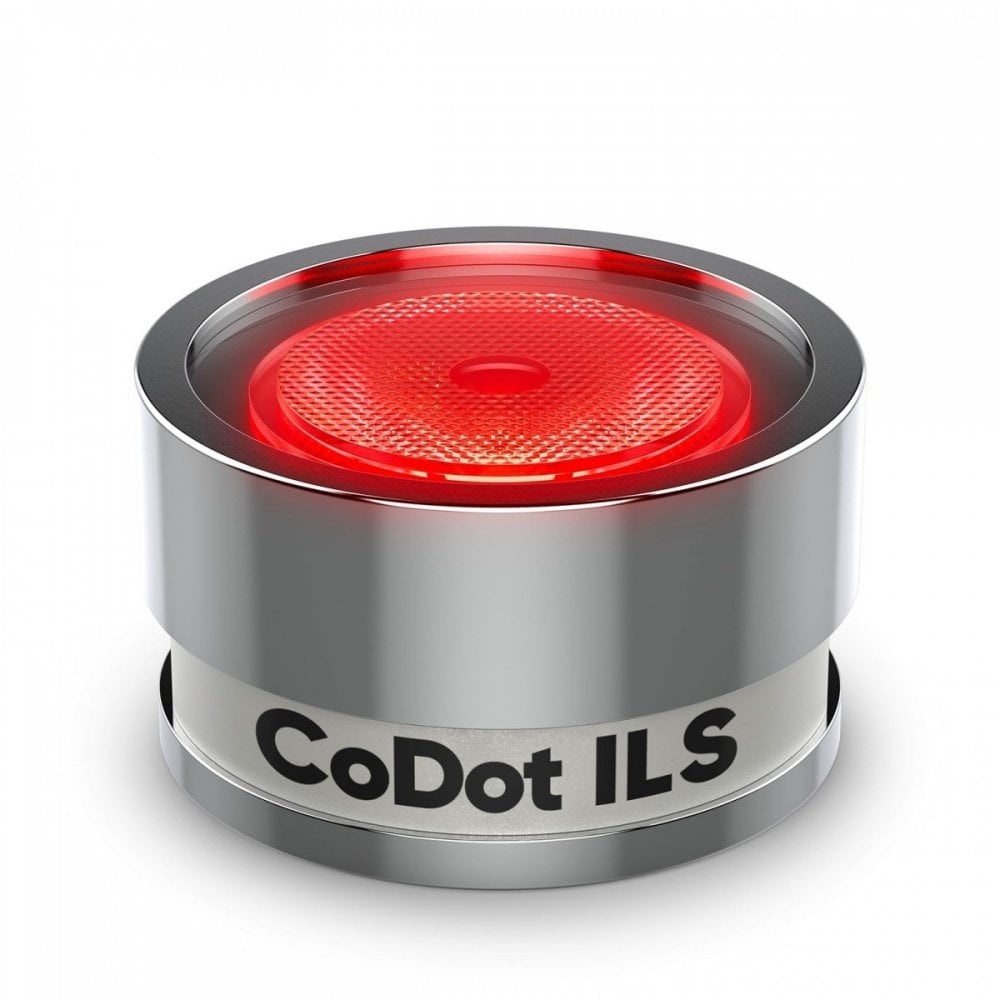

Chauvet DJ CoDot ILS LED Illuminators, Pack of 4

Compact design for tight spaces

The CoDot ILS illuminators are designed to fit in spaces where traditional fixtures can’t. Their coin-sized form makes them perfect for small or tricky applications, providing professional lighting solutions in areas that demand a more compact setup.

Interchangeable lenses for flexible lighting

Each CoDot illuminator comes with two lens options—clear and diffused. This allows you to switch between sharp, focused lighting or a softer, more even glow, depending on your project’s needs.

Magnetic mounting for quick installation

With a magnetic base, the CoDot illuminators can be mounted to metal surfaces in seconds, making setup simple and hassle-free. A threaded insert also allows compatibility with camera tripods for more customised placement.

Wireless control for ease of use

The built-in DFI transceiver and RF receiver allow you to control the CoDot illuminators wirelessly, whether through DMX or ILS signals. You can also use RFC or RFC-XL remotes, ensuring you can adjust the lighting easily from a distance.

Features

• Compact 4-pack of coin-sized LED illuminators ideal for tight spaces
• Includes over 15 accessories for versatile setups, such as a carrying case, 8 lenses (4 clear, 4 diffused), 3 short USB-C cables, 3 long USB-C cables, and an external power supply
• Two lens options for flexibility to match different lighting needs
• Magnetic base for quick and secure attachment to metal surfaces
• Threaded insert for compatibility with camera tripods and various accessories
• Fully integrated with ILS ecosystem for seamless use with other ILS devices
• Wireless DMX or ILS signal control via the built-in DFI transceiver
• Built-in RF receiver for remote control using optional RFC or RFC-XL remotes
• LED display for easy navigation and direct access to all functions
• Power linking capability through USB Type-C ports for efficient multi-unit setups

Specifications

• DMX Channels: 4 or 6
• Light Source: 1 LED (Quad-Colour RGBW) 3 W, (0.8 A), 50,000 Hours Life Expectancy
• Strobe Rate: 0 to 20 Hz
• Beam Angle (Installed Lens): 19°
• Beam Angle (Included Lens): 14°
• Illuminance (Installed Lens): 256 Lux @ 2 m
• Illuminance (Included Lens): 442 Lux @ 2 m
• Max Unobstructed Distance: 600 ft (183 m)
• Operating Frequency: 2.4 GHz
• Power Linking: 4 units @ 120 V; 4 units @ 230 V
• Input Voltage: 100 to 240 V AC, 50/60 Hz (Auto-Ranging)
• Power And Current: 7 W, 0.1 A @ 120 V, 60 Hz
• Power And Current: 7 W, 0.1 A @ 230 V, 50 Hz
• Optional Controllers: ILS Command, RFC, RFC-XL
• Approvals: CE, ROHS, UKCA, FCC
• Dimensions: 2.2 x 2.1 x 0.9 in. (57 x 54 x 24 mm)
• Weight: 0.2 lbs (0.1 kg)
