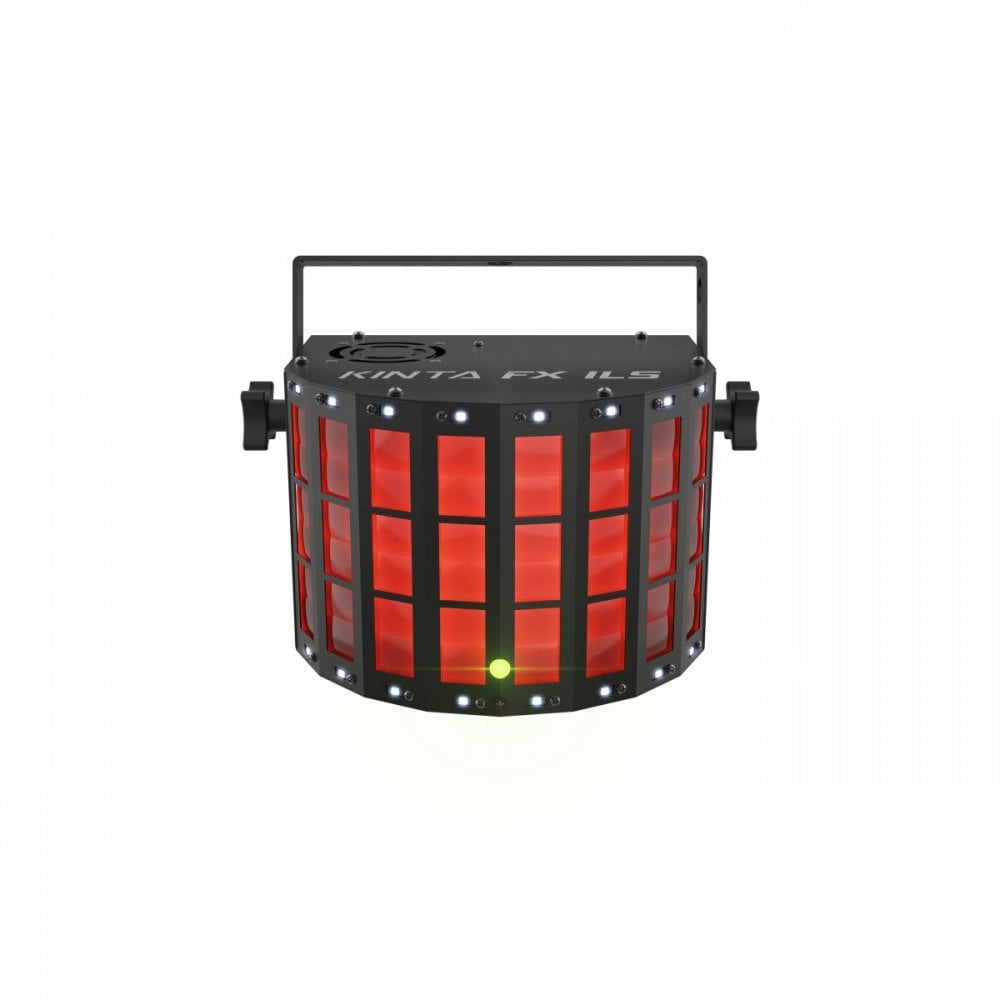

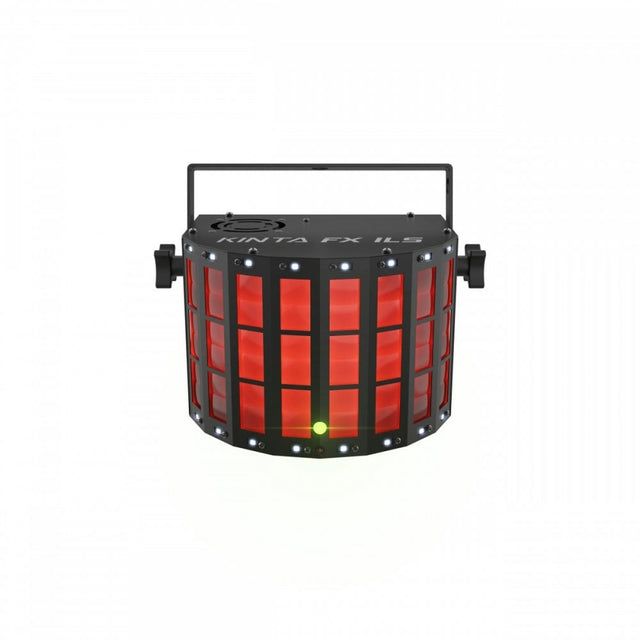

Chauvet DJ Kinta FX ILS

The Kinta FX ILS by Chauvet DJ combines an LED derby effect light, a laser and an SMD strobe in one compact unit. With the help of these effects, a variety of exciting looks can be achieved. Four powerful 7.5 watt LEDs in red, green, blue and white provide impressive multicolored derby beams, plus dynamic strobes with 16 white SMD LEDs and chaser lights and hundreds of razor-sharp laser beams in red and green. There are no limits to the possibilities here.

The versatile fixture is easily controlled by DMX with 2 or 9 channels or in master/slave mode, via the optional IRC-6 remote control as well as the digital display. Multiple units can be linked together to save time on wiring and extension cords. In addition, the multi-effect integrates easily with the new ILS system, which makes it easy to create coordinated light shows across different types of fixtures.

• DMX channels: 2 or 9
• DMX connectors: 3-pin XLR
• Light source (Kinta): 4 LEDs (1 red, 1 green, 1 blue, 1 white) 7.5 W, (2.4 A), 50,000 hours life expectancy
• Light source (strobe): 16 SMD LEDs (white) 5 W, (1.6 A), 50,000 hours life expectancy
• Light source (laser): 650 nm/100 mW (red) laser diode, 520 nm/30 mW (green) laser diode
• Strobe rate: 0 to 20 Hz
• Coverage angle: 118
• Current linkage: 17 units at 120 V; 33 units at 230 V
• Input voltage: 100 to 240 VAC, 50/60 Hz (with automatic switching)
• Power and amperage: 25 W, 0.5 A at 120 V, 60 Hz
• Power and amperage: 24 W, 0.2 A at 230 V, 50 Hz
• Weight: 1,7 kg
• Size: 187 x 261 x 187 mm
• Optional control units: IRC6
• Classified according to EN/IEC 60825-1:2014
• Meets FDA performance standards for laser products
• Products with the exception of deviations in accordance with Laser Notice No. 56, dated May 8, 2019.
• Approvals: CE, FDA, RoHS, UKCA
