Chord Passive Direct Injection Box
Pickup available at Electronic Centre
Usually ready in 1 hour
Description
Description
Passive DI box for converting high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console. Equipped with 3 pad settings, RF/mains filter and selector for ground lift with or without filter.
- Ground float option for ground lift with RF/mains filter
- Ground lift option isolates signal ground without filter
- 3 pad settings for level matching

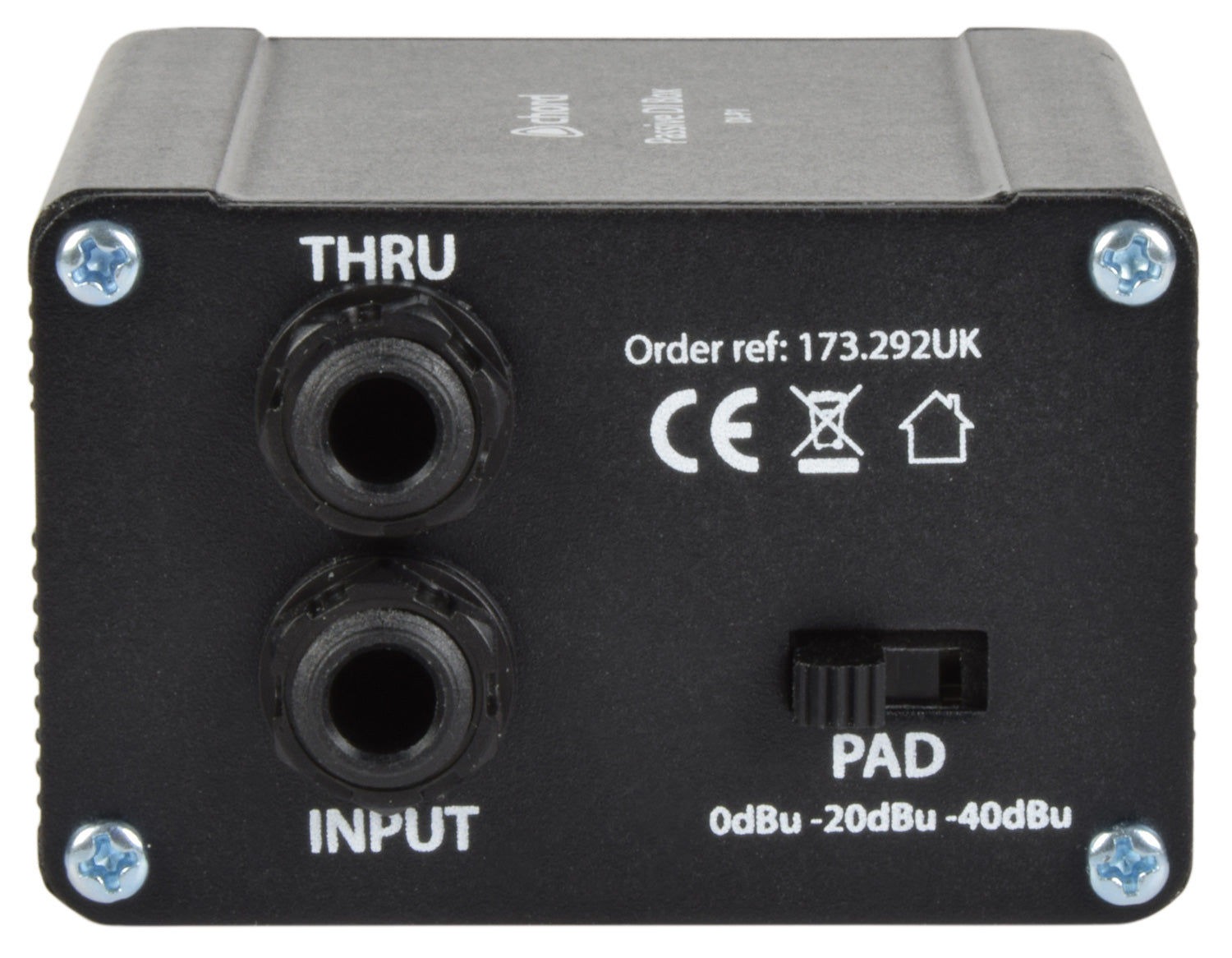

- Input - 6.3mm jack (unbalanced)

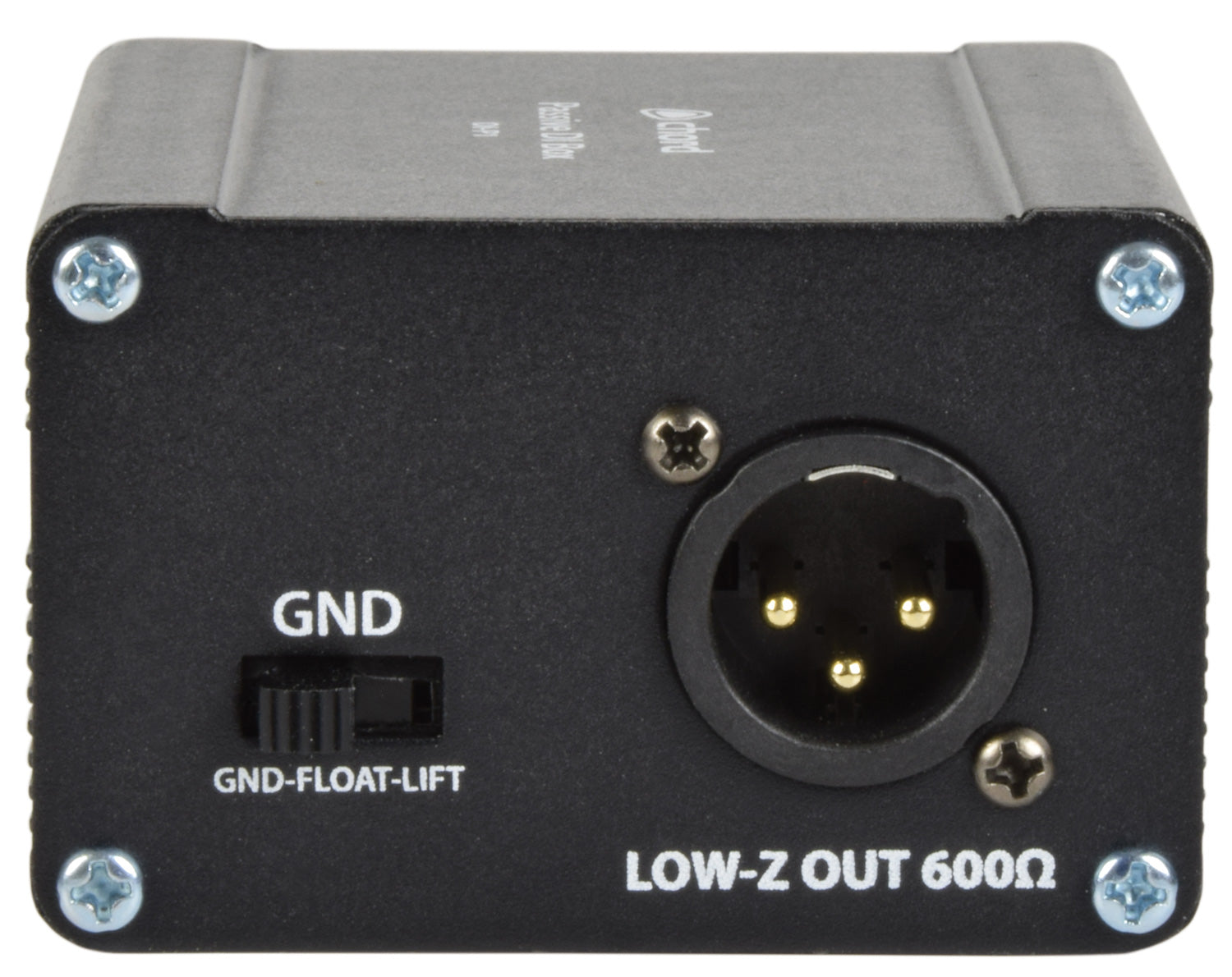

- Outputs - XLRM (balanced), 6.3mm jack through (unbalanced)
- Input impedance - >100k Ohms
- Output impedance - 600 Ohms
- Controls - 0/-20/-40dBu pad & Ground-Float-Lift switch
- Dimensions - 86 x 70 x 45mm
- Weight - 234g
