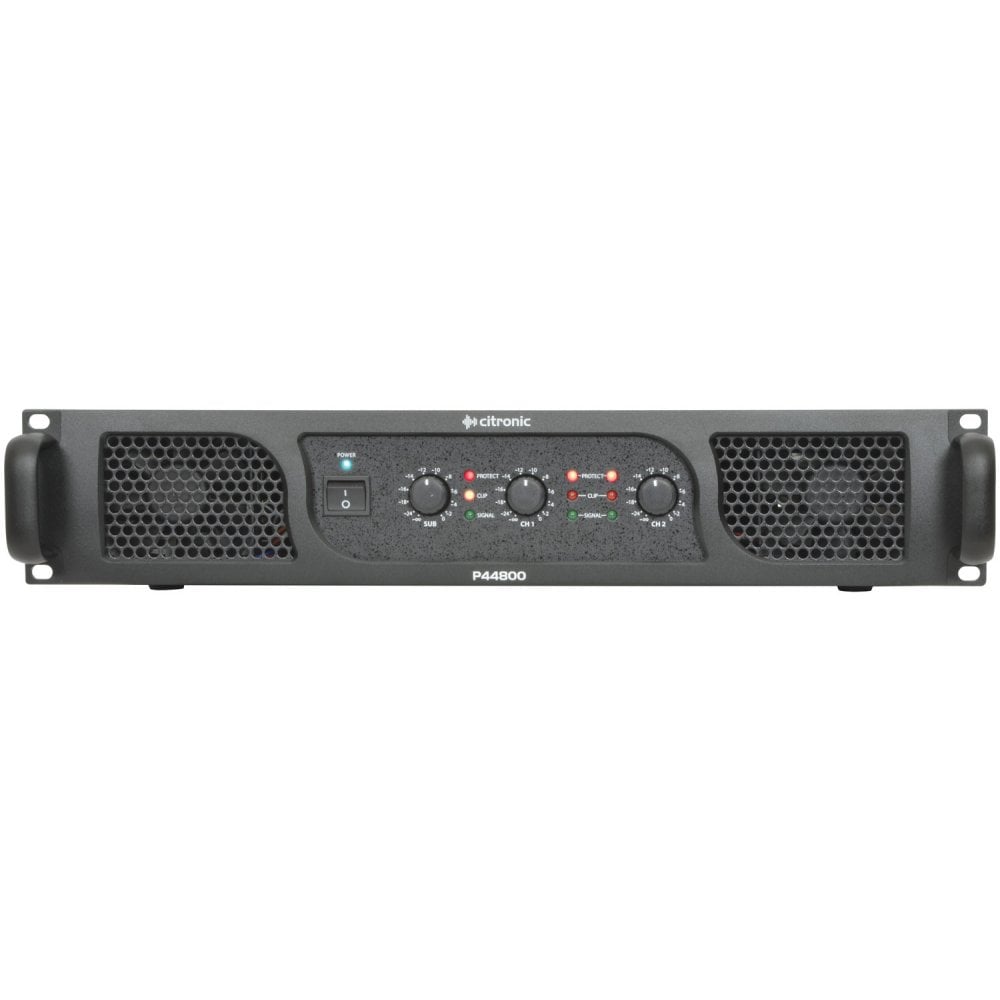

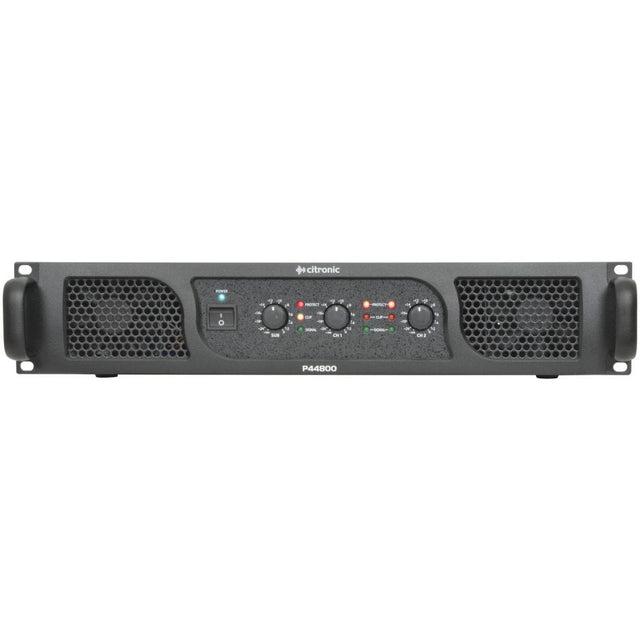

P44800 2 x 400W + 800W Stereo & Sub Power Amplifiers

2.1 power amplifiers with 2 channels for mid-top cabinets and a single high power sub output with integral active crossover. Designed as a cost effective and efficient solution for bi-amplified sound systems where subs and top cabinets are run together from this single amplifier.

• Stereo full range output
• Mono summed sub output (can be full range)
• Active crossover with variable frequency

Weight

• 21kg

Power rms @ 4 Ohms

• 400 + 400 + 800W (sub)

Power rms @ 8 Ohms

• 250 + 250 + 500W (sub)

Power supply

• 240Vac, 50Hz (IEC)

Input impedance (balanced/unbalanced)

• 40k Ohms / 20k Ohms

Controls

• 3 x channel level + crossover frequency

Connections

• 3 x XLRF, 3 x jack, 3 x SPK

Cut-off frequency

• 50 - 250Hz (12dB/oct)

Damping factor

• >250 (20-400Hz @ 8 Ohms)

Slew rate

• 6.5V/us

Frequency response

• 10Hz - 50kHz (-2dB)

THD +N

• 0.04%

Signal to noise ratio

• 86dB

Low-cut filter

• 30Hz fixed (12dB/oct)

Dimensions

• 483 x 439 x 88mm
