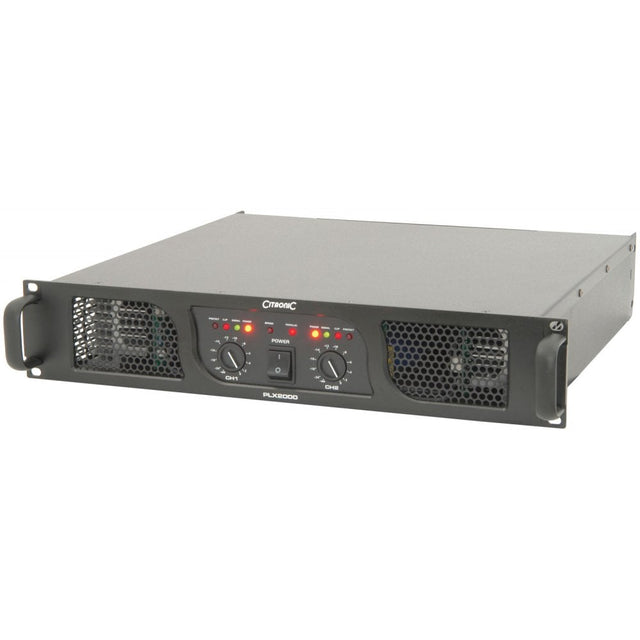

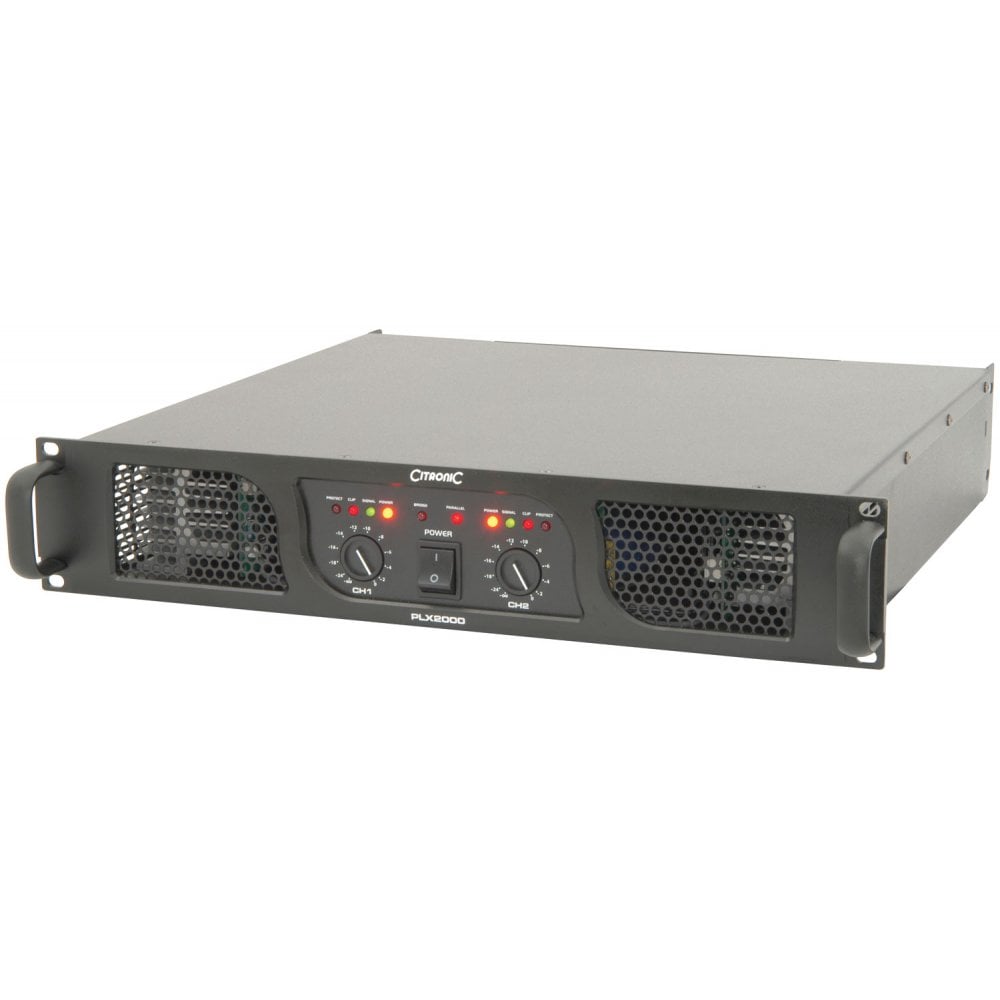

PLX2000 2 x 1000Wrms 2 ohms Powered Amplifier

19" rackmount 2U power amplifiers with dual fan cooling and class H architecture for safe, reliable power delivery. Balanced inputs via XLR sockets, speaker outputs on 2 SPK connectors or 4mm binding posts. High power output stable down to 2 Ohms load per side can also be bridged mono to 4 Ohms. Switchable ground lift, bridge mode and clip limiter.

• Bridge mode for high power mono operation
• Output stable down to 2 Ohms
• Switchable clip limiter

Weight

• 22.5kg

Power rms bridge @ 8 Ohms

• 1250W

Power rms bridge @ 4 Ohms

• 1700W

Power rms @ 8 Ohms

• 2 x 400W

Power rms @ 4 Ohms

• 2 x 700W

Power rms @ 2 Ohms

• 2 x 1000W

Amplifier : construction

• Class-AB

Power supply

• 230Vac, 50Hz (IEC)

Controls

• Level channel 1, level channel 2, ground, mode, clip limiter

Input impedance

• 20k ohms

Frequency response

• 5Hz - 50kHz

Total harmonic distortion

• 0.05%

Slew rate

• 40V/us

Damping factor

• >400

Protection

• Short-circuit, overload, D.C. and thermal protect

Dimensions

• 482 x 453 x 88mm (2U)
