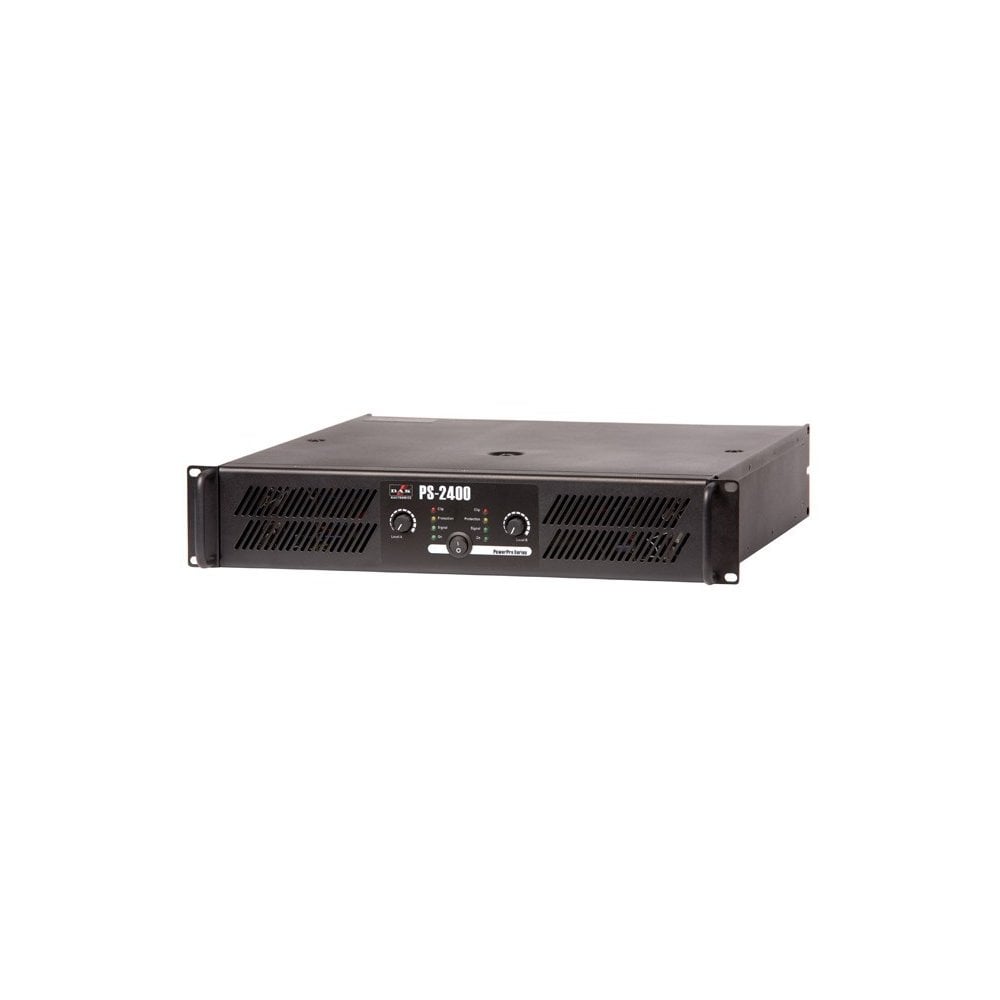

DAS PS2400 Amplifier

The PS-2400 is a high power stereo amplifier which incorporates a rugged 2 unit all-steel chassis ensuring structural rigidity and protecting components. The low-noise fans offer both quiet and cool operation while the high energy toroidal transformer saves weight. The amplifier incorporates rear located switches which permit ground lift, operational mode selection (bridge, stereo or parallel) and input sensitivity selection.

Stereo Mode (both channels driven)
8 ohms EIA 1 kHz 1% THD    800 W
4 ohms EIA 1 kHz 1% THD    1200 W
2 ohms EIA 1 kHz 1% THD    1800 W
Bridge Mono Mode
8 ohms EIA 1 kHz 1% THD    2200 W
Frequency Response    20 Hz-20 kHz +/- 1 dB
Signal to Noise Ratio (20 Hz-20 kHz)    -90 dB
Distortion (SMPTE-IM)    Less than 0.5%
Bridge Mono Mode
140V or 240V    Less than 0.5%
Damping Factor @ 8 ohms    Greater than 100
Input Sensitivity @ 4 ohms    0.775 V/1.0 V/1.44 V
Voltage Gain (input 0.775 V)    39 dB
Output Circuitry    Class G
AC Requirements    230 VAC 50 Hz
Current Draw (1/3 power @ 230 V)    9.6 A
Dimensions (H x W x D)    8.8 x 48.2 x 38.6 cm
3.5 x 19 x 15.2 in
Weight    27.2 kg (60 lb)
