Diamond X-200 2m/70cm Dualband Base Antenna

2m/70cm Dual band Base Antenna

Diamond Original base antenna-Japan double band.

Key Features

• Fiberglass construction
• Overlapping outer shells for added strength
• Strong waterproof joint couplings
• Stainless steel hardware
• Wide band performance
• Factory adjusted no tuning required
• Highest gain
• High wind rating
• DC grounded

Specification

• Frequency: 144/430 MHz
• VHF gain: 6.0 dB
• UHF gain: 8.0 dB
• Maximum Power: 200 W
• Impedance: 50 Ohms
• Wind speed: 50 m / sec
• VSWR: Less than 1.5: 1
• Maximum accepted diameter: 30 mm to 62 mm

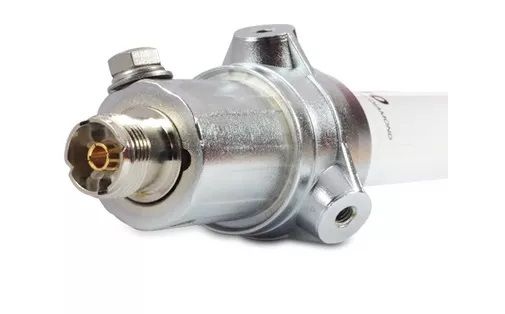

• Connector: SO239
• Length: 2.5m
• Weight: 1.2 kg
• Wavelength: 2 x 5/8 (144 MHz) 4 x 5/8 (430 MHz)
