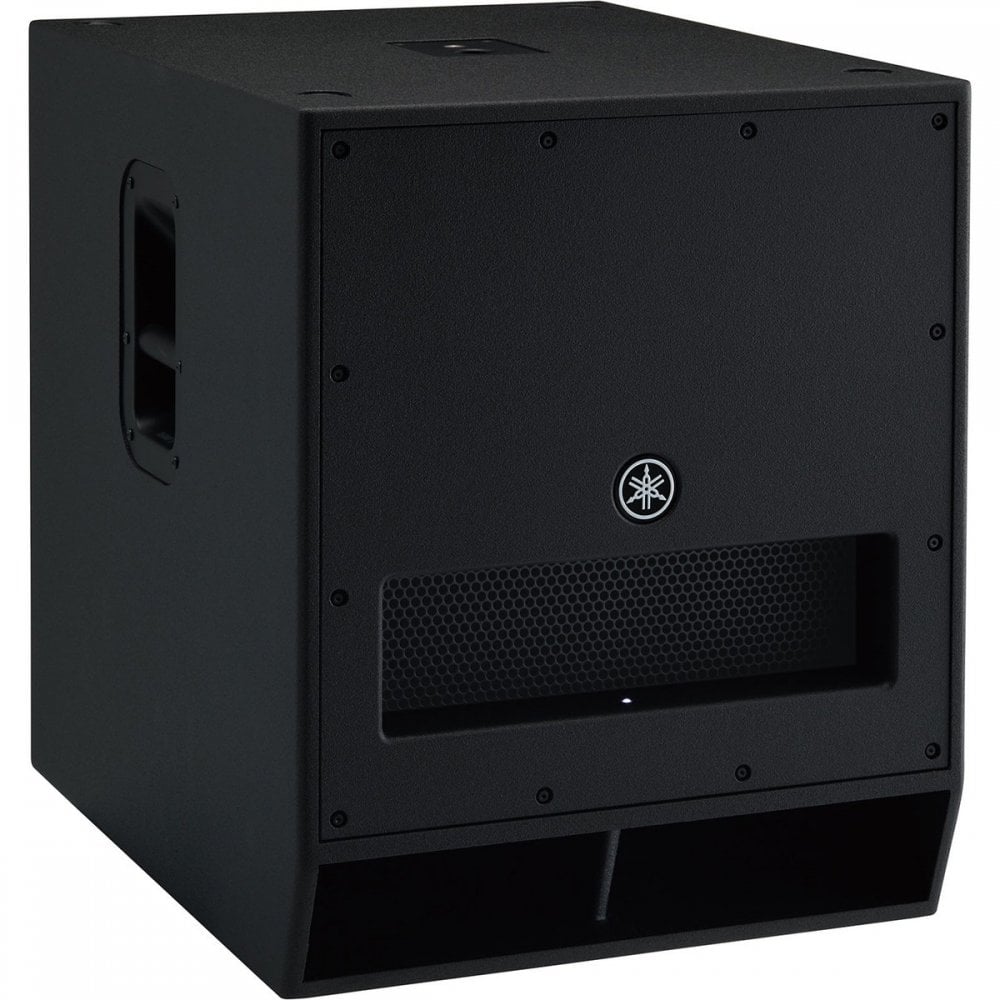

Yamaha DXS18 18" Active PA Subwoofer

Unparalleled Sound Quality

With its Class D Amplification and premium quality design work from Yamaha, the DXS18 delivers optimal sound quality whilst not compromising on portability. Yamaha's D-XSUB processing allows you to extend the frequency response even lower, and in-turn, providing a more powerful, thicker bass sound. The acoustically optimised wooden enclosure is designed to minimise distortion at high output levels, which is ideal for nightclub and live performance environments where the unit can be pushed to its limits.

Easy Integration

The DXS18 is designed to combine with other powered speaker systems for added versatility. The subwoofer includes a dual pole socket that's designed for 35mm diameter speaker poles and M20 screws, allowing you to easily mount this unit. The dual XLR inputs let you connect multiple pieces of equipment such as mixers, crossover systems and more. The parallel XLR outputs let you add additional DXS subwoofers for even more power.

Features

• High-efficiency 1020W Class-D Amplifiers
• Custom designed transducer
• Band-pass type enclosure
• Durable wooden enclosures with LINE-X coating
• Selectable X-OVER
• D-XSUB bass processing
• Cardioid mode
• Dual pole socket

Specifications

• Speaker Type: 18" Powered Subwoofer, Band-Pass Type
• Frequency Range: 32Hz - 120Hz
• Components (LF): 18" Cone, 4" Voice Coil
• Output Power
  • Dynamic: 1020W
  • Continuous: 800W
• Maximum Output Level: 136dB SPL
• Connectors
  • Input: XLR3-31 x 2
  • Thru: XLR-3-32 x 2 (Through Or HPF Post)
• Processors: D-XSUB: Boost, XTD LF, Normal
• Cooling: Nautral Convection
• Power Requirements: 100V - 240V, 50Hz/60Hz
• Power Consumption: 100W
• Pole Socket: 35 mm
• Material: Plywood (LINE-X, Black)
• Net Weight: 49.7 kg
• Dimensions
  • Height: 683 mm
  • Width: 563 mm
  • Depth: 721 mm
