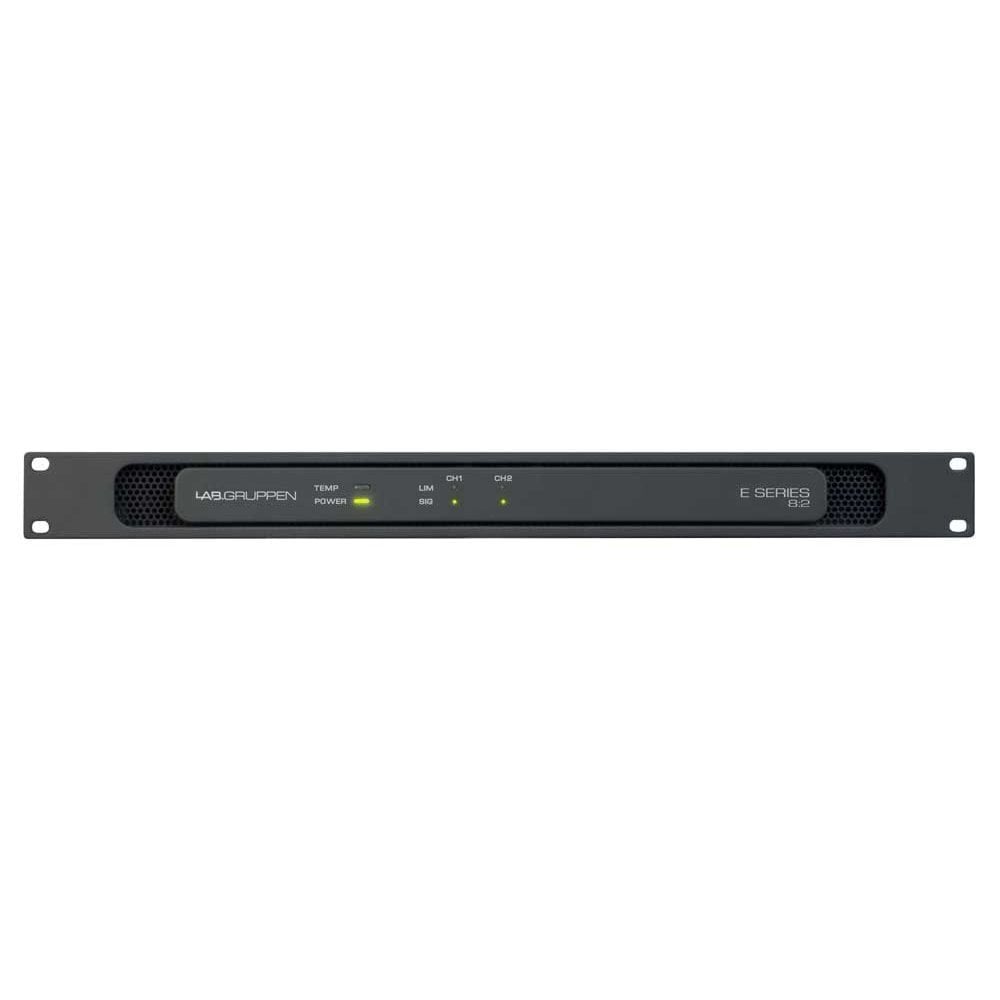

Lab Gruppen E Series 12:2 Amplifier REFURBISHED

REFURBISHED UNIT

When designing the E Series, Lab.gruppen drew upon the cutting-edge design philosophies developed for the flagship PLM™ 20000Q Powered Loudspeaker Management system, evolving these to create new circuit topologies and control features to meet the demands of 21st century AV installations.

The result is a platform called IDEEA: IntelliDrive Energy Efficient Amplifier. The principal design challenge was maintaining Lab.gruppen’s impeccable sonic performance and robust power output while meeting – or exceeding – the rigorous efficiency requirements of Energy Star 2.1 certification.

• High power density – 1200 W across 2 channels (eg. 2 × 600 W) in 1U
• Certified Energy Star 3.0 compliant
• Flexible – IntelliDrive delivers similar power per channel at 70 V, 2, 4, 8 and 16 ohms
• Asymmetric loading allows “mixing and matching” of loads with different impedances to maximize both overall system efficiency and inventory utilization
• Patented IDEEA output stage based on Class D topology
• High efficiency – Extremely low power consumption and heat output
• Exceptionally low cost of ownership over lifetime
• RSL switch circuit senses rail voltage and optimizes output for instantaneous load conditions
• Efficient cooling – One temperature-controlled fan
• Comprehensive circuit protection and fault indication
