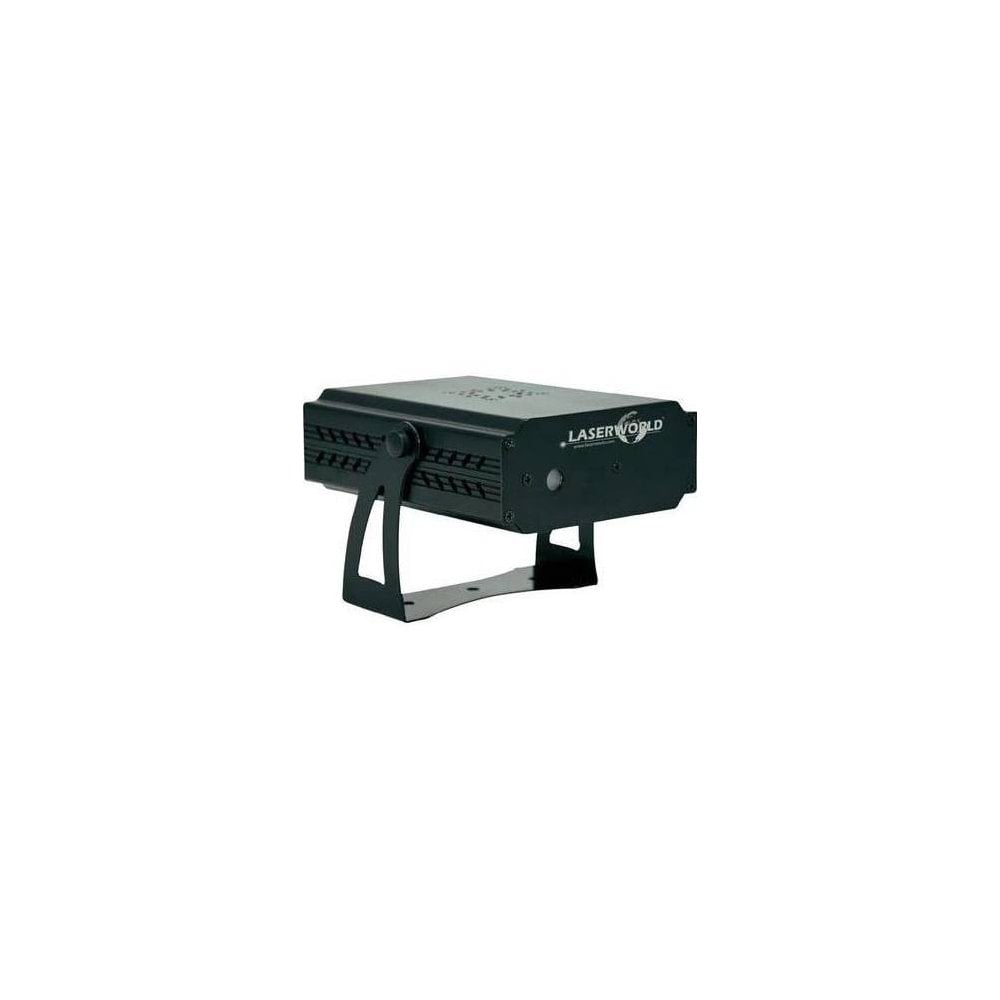

Laserworld EL-160RGB Cluster

The Laserworld EL-160RGB Micro is a RGB star effect laser with a total output power of up to160mW. It is great for use in bars or smaller clubs, but also for private parties or hobby/home use, as it shines a multitude of small dots to walls and ceiling or, if used with fog or haze, projects hundreds of laser beams in different colors. As the Laserworld EL-160RGB Micro comes in a very compact housing, it can easily be mounted even in places where there is not so much space to install technical equipment.
The versatile Sound-to-Light mode provides different options on how the effect is shown. The full automatic mode is especially made for rooms, where there is no music playing and the laser is used as ambient effect.

The Laserworld EL-160RGB Micro is a RGB laser, meaning that is has three different laser sources included:  A red diode laser module with an wavelenght of 650nm, a green DPSS laser module with a wavelength of 532nm and a blue diode laser module with a wavelength of 445nm.
The beams have a diameter of about 3mm and a beam divergence of about 2mrad. Due to the rotating grating wheel a wide deflection angle of up to 90° is possible. The sound-to-light and the stand-alone mode can be switched. For the sound-to-light mode the sensitivity of the integrated microphone can be adjusted.

Technical Specifications:
min. typ.
total power: 110mW 160mW
power red: >50mW / 650nm
power green: >10mW / 532nm
power blue: >50mW / 445nm

beam specs (full angle): ca. 3mm / 2mrad
laser source: Diode, DPSS Laser
laser class: 3b
operation modes: auto, music
scanner: rotating grating wheel
scan angle: 90° max.
basic patterns: star effect
accessories: power cable, manual
power supply: 100 - 250V AC
power consumption: 20 W
dimensions: 155/120/52 mm
weight: 0,6 kg
