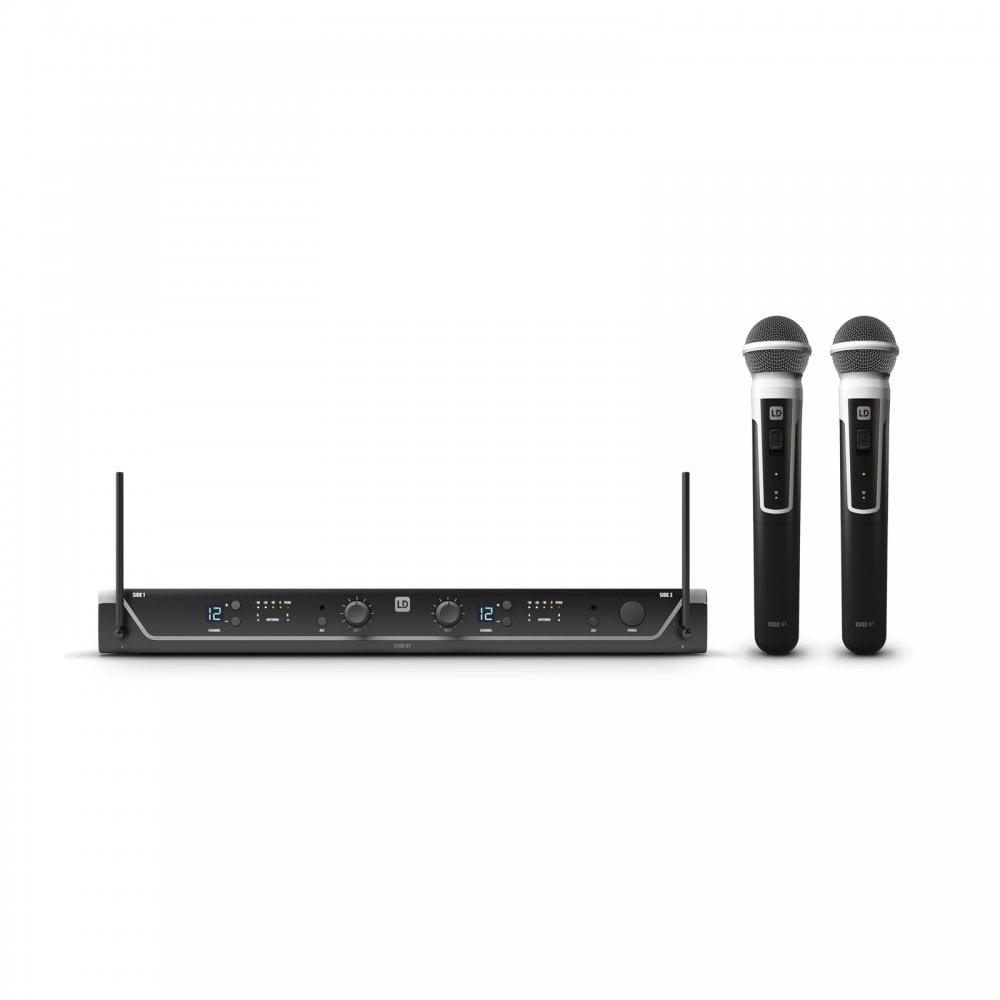

LD Systems U305 HHD 2

Developed in Germany, the UHF diversity wireless systems from the U300® series deliver excellent audio performance. They achieve a range of 100 metres in ideal conditions and are available in five frequency bands: 584–608 MHz, 655–679 MHz, 823–832 MHz + 863–865 MHz, 470–490 MHz or 514–542 MHz. Up to six U300® systems can be used simultaneously in each frequency band. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection between the transmitter and receiver, while a squelch with pilot tone ensures disruption-free operation.

U300® transmitters have a 10 mW output and an operating time of 10 hours on two AA batteries. The handheld microphone’s frequency response ranges from 55 Hz to 16 KHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The bodypack’s input level can be adjusted to both active and passive guitars and basses over three levels. The power switch features a handy standby mode for temporary muting. The U300® receiver is fitted with a bright LCD channel display, an LED chain for displaying audio signal strength and both two balanced XLR and two unbalanced 6.35 mm audio outputs. The audio output can also be switched to instrument level for directly connecting to guitar and bass amplifiers.

The U300® Series wireless systems have a fresh, modern look and are available with receivers and two cardioid dynamic handheld microphones (HHD2) or with two bodypacks and two headsets (BPH2). The microphone characteristic can be changed using U500®-series replaceable heads.

Specifications:

Transmission frequency range 584 - 608 MHz

Weight 1,5 kg

Items in this set

LD Systems U305 MD Dynamic handheld microphone

Transmission frequency range 584 - 608 MHz

Channels 12

Groups 1

Microphone type Dynamic

Directivity Cardioid

Frequency response 55 - 16000 Hz

Rated HF output power 10 mW

Signal-to-noise ratio 104 dB

Operating voltage 2 x AA battery

Operating time >10 h

Length 257 mm

Diameter 50 mm

Controls Power On/Off

Indicators ASC IR Sync (Green/Amber Blinking LED), Battery (low battery: red), Power LED (Power ON: green)

Weight 0,235 kg

Other features IR frequency synchronisation, Pilot tone

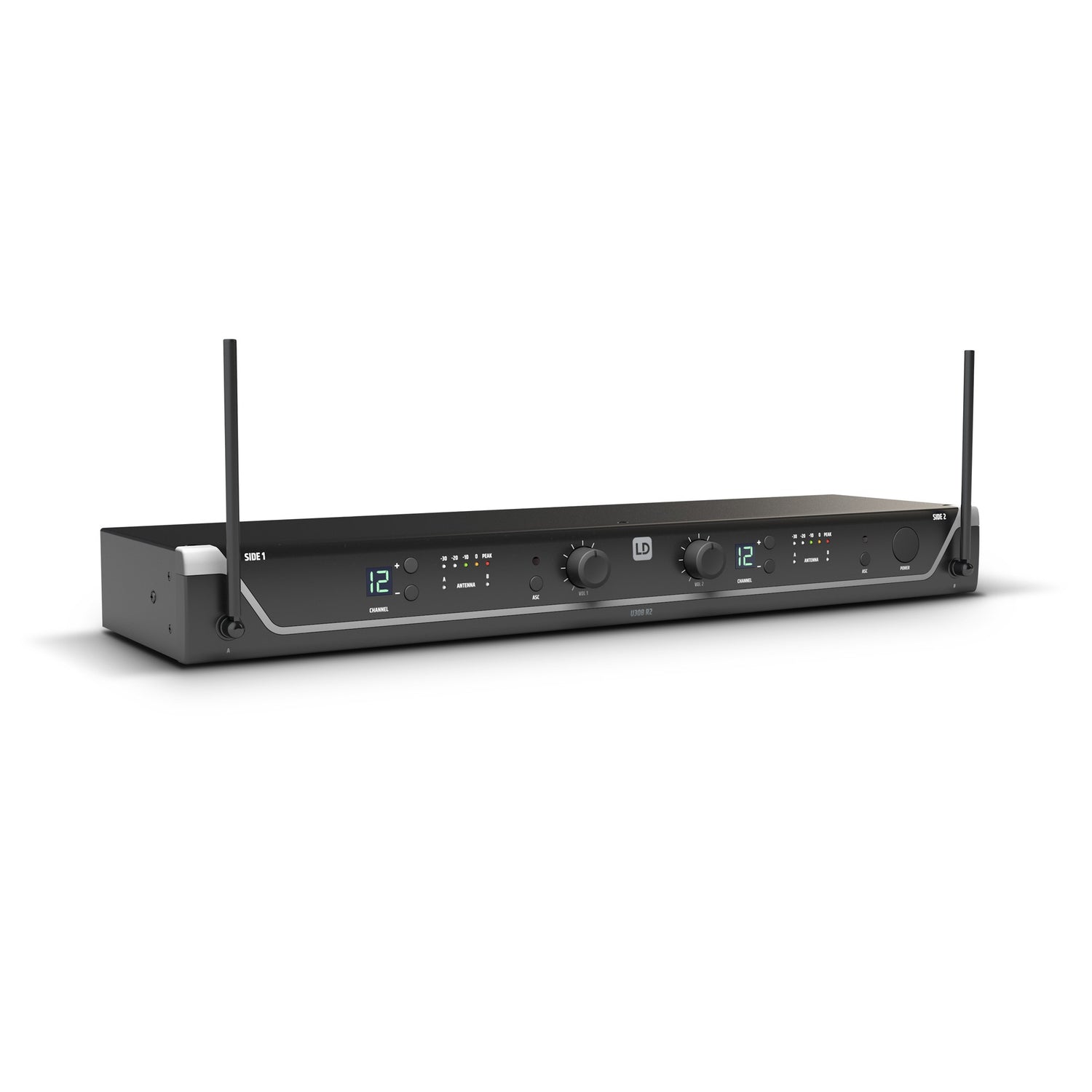

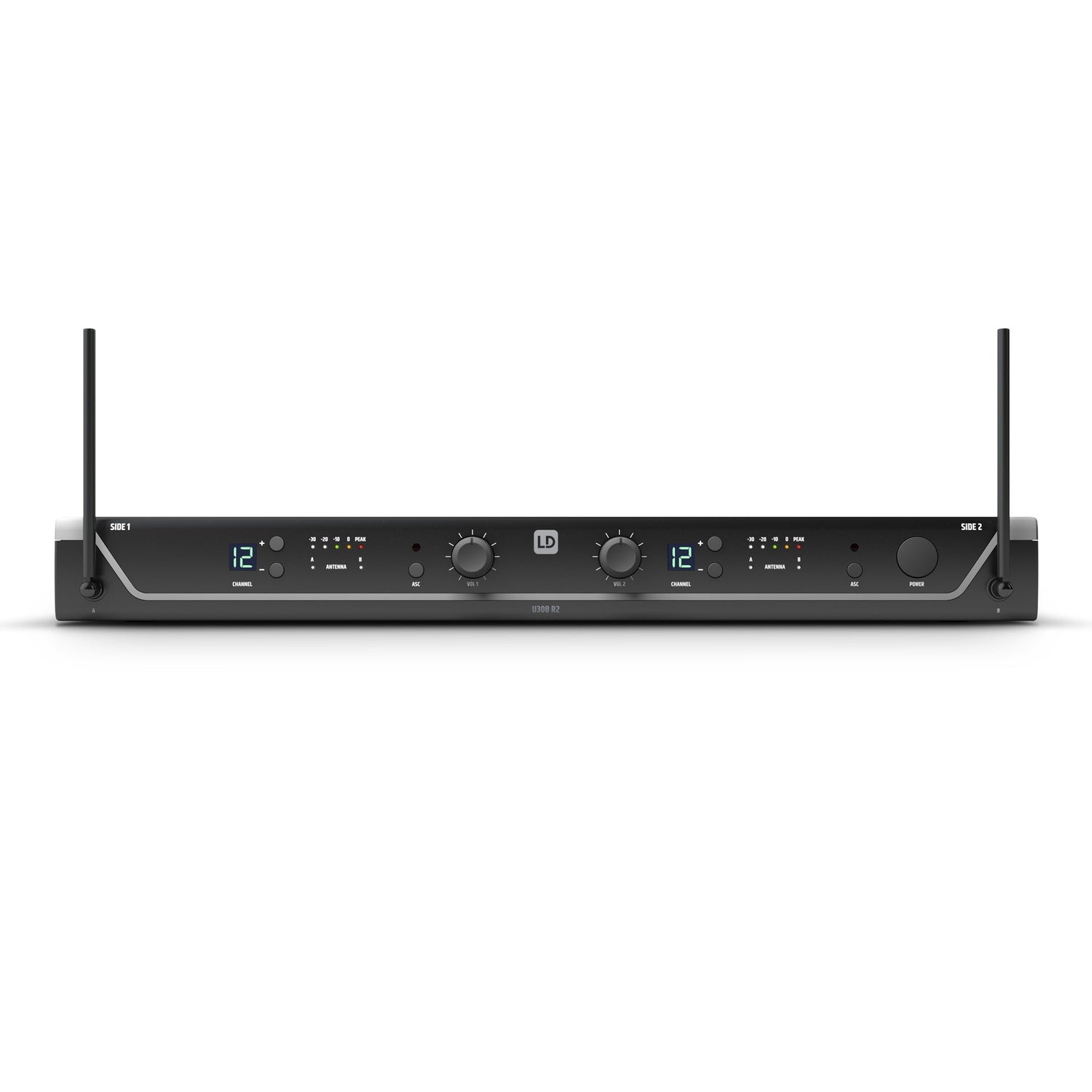

LD Systems U305 R2 Dual Receiver- 584 - 608 MHz

Modulation Type FM

Transmission frequency range 584 - 608 MHz

Channels 12

Groups 1

Antenna inputs 2 x fixed

Frequency response 35 - 16000 Hz

Noise reduction Squelch

Transmission optimization Pilot tone

Total Harmonic Distortion (THD) < 0.3 %

Signal-to-noise ratio 104 dB

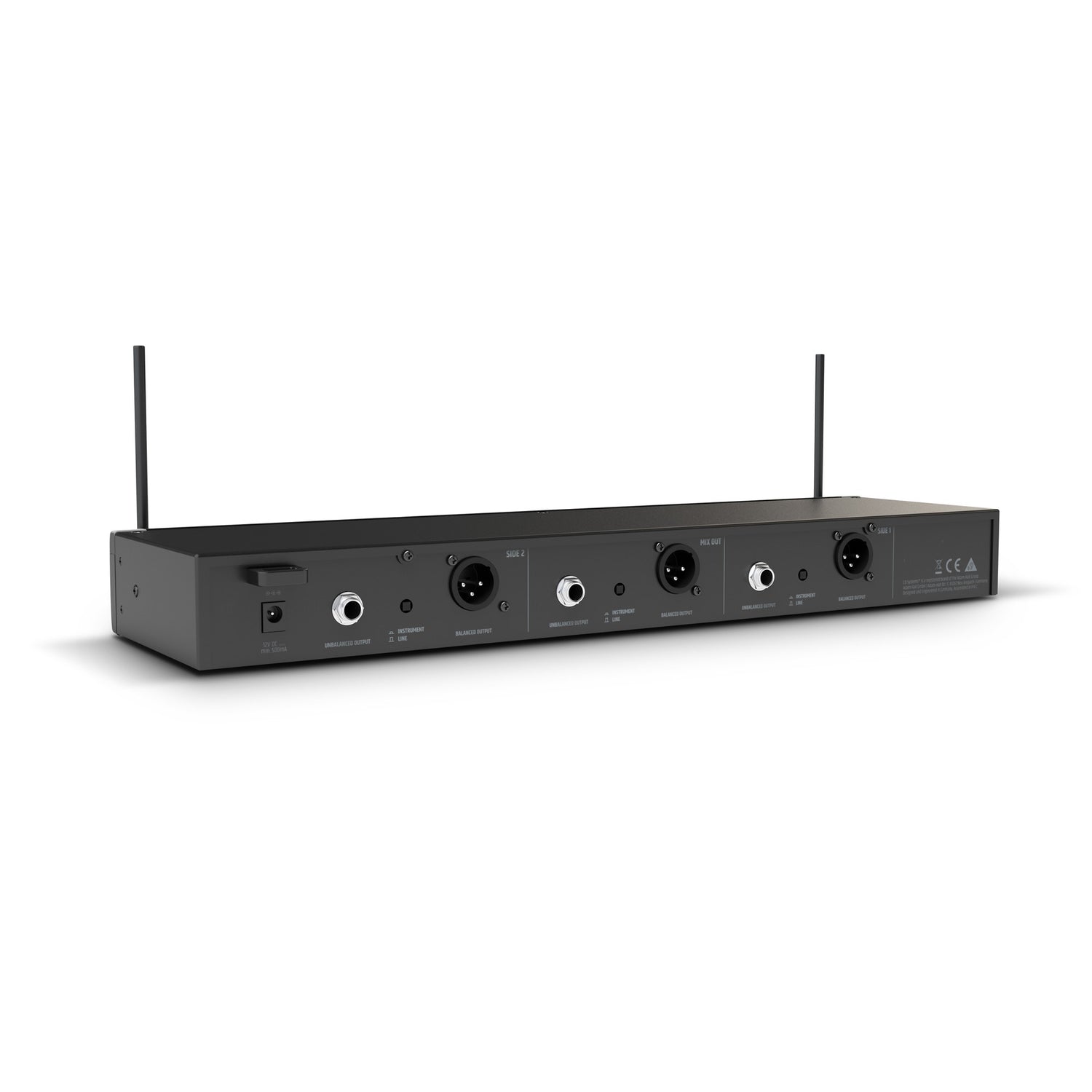

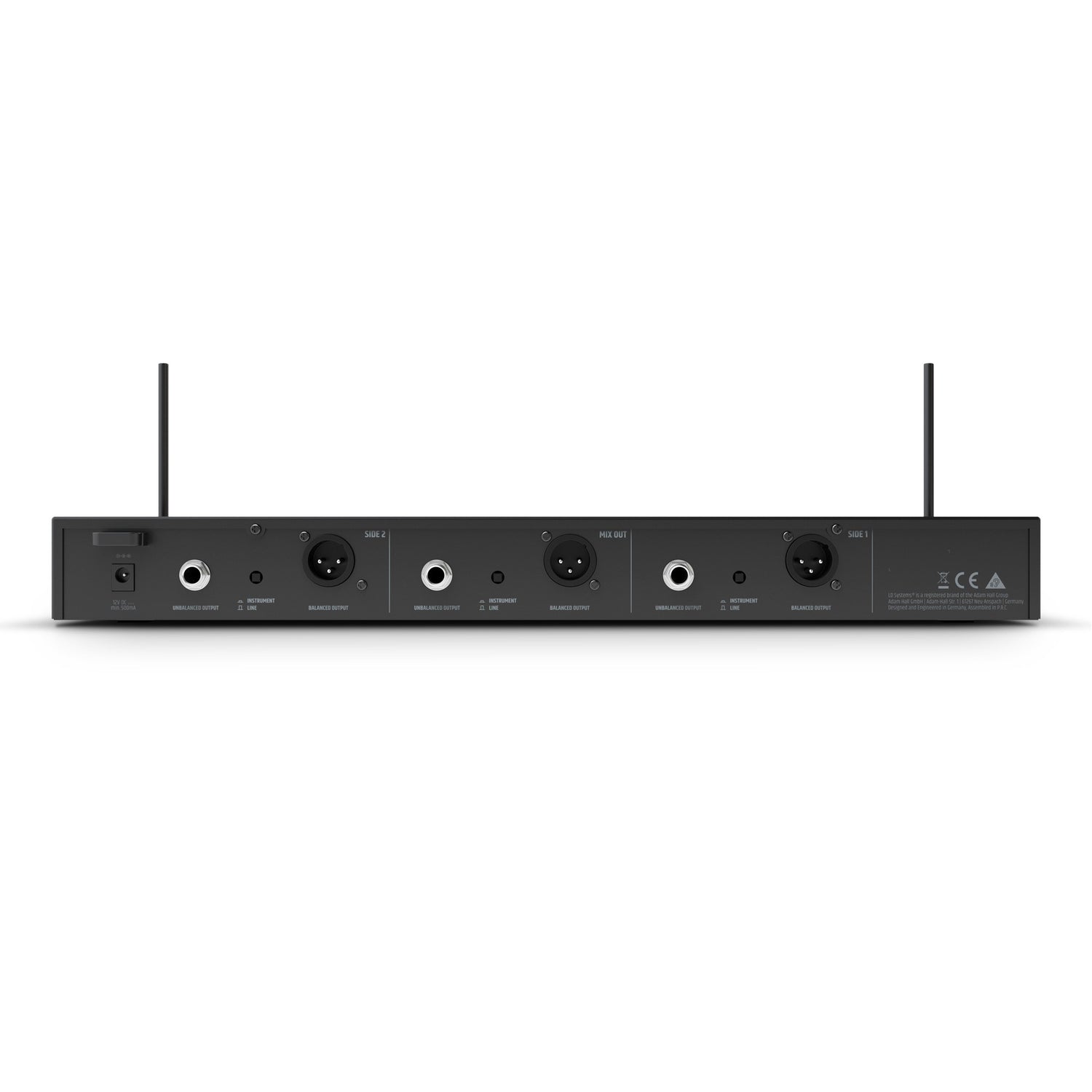

Audio output, balanced 3 x XLR

Audio output, unbalanced 6.3 mm jack, switchable unbalanced output level ( Line/Instrument )

Audio mix output, balanced XLR

Audio mix output, unbalanced 6.3 mm jack

Max. output level +10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu

Controls 2 x Volume, Channel down, Channel up, Line/Instrument Level, Power On/Off

Indicators 5-LED VU-Meter, Antenna A/B, LC display

Operating voltage 12 V DC, 500 mA

Width 410 mm

Height 43 mm

Depth 120 mm

Weight 1,265 kg

Accessories (included) 2 x AA batteries, Power supply
