Legamaster EXPLORE 2 touch monitor EXP-7510 UK

Display

• Display diagonal 75 inch
• Display technology LCD
• Panel type IPS
• Backlight type Direct LED
• Display resolution 3840 x 2160 px | 4K Ultra HD
• Display brightness 400 cd/m²
• Display number of colours 1.073 billion colours
• Contrast ratio (static) 1200:1
• Contrast ratio (dynamic) 5000:1
• Aspect ratio 16:9
• Display refresh rate 60 fps
• Response time 8 ms
• Viewing angle H: 178° / V: 178°
• Display control IR remote controller, Keypad, RS-232C, Touch OSD
• Lifespan 50000 hour
• Durability 18/7
• Screen orientation Landscape

Touch system

• Touchscreen technology High Precision Advanced Infrared
• Number of touch points 40
• Touch accuracy 2 mm
• Touch system response time 5 ms
• Touch resolution 32768 x 32768 px
• Touch interface 2x USB 3.0 Type-B
• Touch operation Finger, Glove, Palm, Stylus

Glass

• Glass type Heat tempered safety glass
• Glass treatment technology Coated
• Glass surface treatment Anti-glare
• Glass bonding type Zero gap bonding
• Glass hardness Mhos 7
• Glass thickness 3 mm

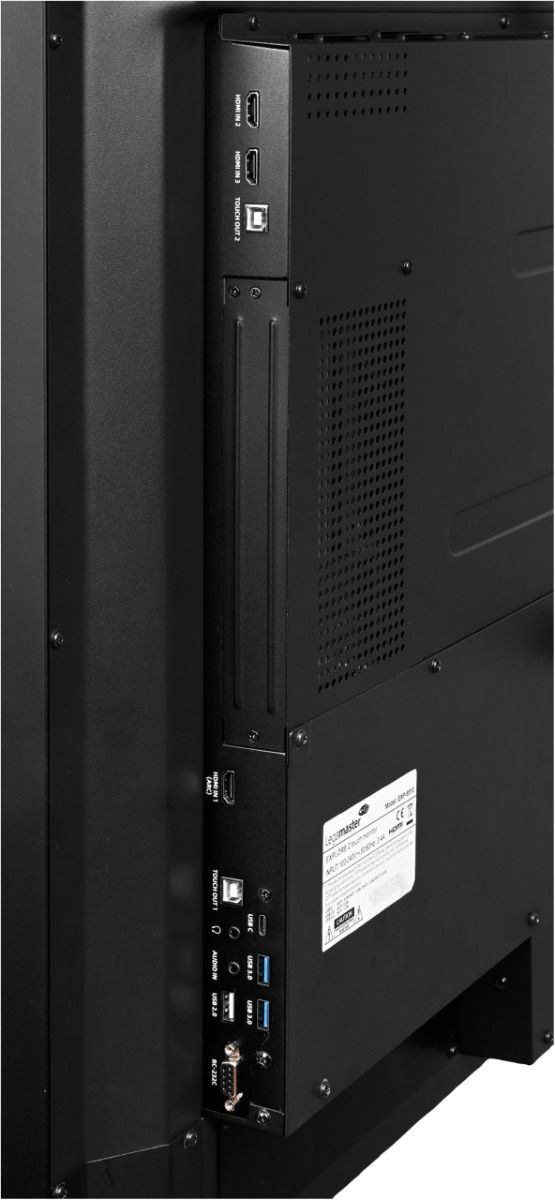

Ports & Interfaces

• HDMI input ports 3x 2.0 Type-A
• USB ports 1x USB 2.0 Type-A, 2x USB 3.0 Type-A, 1x USB 3.1 Type-C (DP1.2 | 100W)
• Audio input ports 1x Jack 3.5 mm
• Audio output ports 1x Jack 3.5 mm
• Serial port type RS-232

Audio & Video

• Built-in camera No
• Built-in microphone No
• Built-in speakers Yes
• Number of speakers 2
• Speaker specifications 2x15W (30 - 90 dB)

Power

• Power supply AC | 100 - 240 V | 50/60 Hz
• Power consumption (sleep mode) 0.5 W
• Power consumption (standby) 0.5 W
• Energy efficiency class (HDR) C
• Energy efficiency scale A to G

Operational conditions

• Operating relative humidity 20 % - 80 %
• Storage relative humidity 10 % - 60 %
• Operating temperature 0 °C - 40 °C
• Storage temperature -20 °C - 60 °C

Mounting

• VESA mounting interface 800 x 600
• Suitable screw M8
• Dimensions & Logistics
• Dimensions of product (W x H x D) 83.9 x 1005.4 x 1714.4 mm
• Dimensions of package carton (W x H x D) 1839 x 230 x 1167 mm
• Gross weight 64.34 kg
• Net weight 49.33 kg

Packaging data

• Package contents e-Screen, Power cable 1.8m, 2x passive stylus, Pen holder, Remote control unit, 2x battery (AAA)

Warranty

• Product warranty 5 year
• Warranty extension 3 year
