Legamaster EXPLORE 2 touch monitor EXP-8610 UK

• EXPLORE 2 operates without an Operating System (OS), ensuring absolute security with no apps, accounts, or stored data on the device
• Zero-gap bonding adds accuracy by eliminating the traditional gap between glass and display
• The high precision touch system with up to 40 touchpoints detects everything, from the tiniest tip of our ECO stylus to fingers and handpalms making writing, moving objects and erasing as intuitive as it can be
• Incredible quality and value for an affordable price
• A full line of accessories is available to complement the device's line-up. From mounting systems, cameras, OPS computers and our Google certified NAVIGATOR OPS
• EXPLORE 2 offers a winning combination of simplicity, flexibility and exceptional value, ensuring it meets the needs of both corporate and educational environments
• 1% for the Planet certified: you are choosing a very energy-efficient and durable screen and contributing to sustainability projects and environmental protection across the world

Display

• Display diagonal 86 inch
• Display technology LCD
• Panel type IPS
• Backlight type Direct LED
• Display resolution 3840 x 2160 px | 4K Ultra HD
• Display brightness 400 cd/m²
• Display number of colours 1.073 billion colours
• Contrast ratio (static) 1200:1
• Contrast ratio (dynamic) 5000:1
• Aspect ratio 16:9
• Display refresh rate 60 fps
• Response time 8 ms
• Viewing angle H: 178° / V: 178°
• Display control IR remote controller, Keypad, RS-232C, Touch OSD
• Lifespan 50000 hour
• Durability 18/7
• Screen orientation Landscape

Touch system

• Touchscreen technology High Precision Advanced Infrared
• Number of touch points 40
• Touch accuracy 2 mm
• Touch system response time 5 ms
• Touch resolution 32768 x 32768 px
• Touch interface 2x USB 3.0 Type-B
• Touch operation Finger, Glove, Palm, Stylus

Glass

• Glass type Heat tempered safety glass
• Glass treatment technology Coated
• Glass surface treatment Anti-glare
• Glass bonding type Zero gap bonding
• Glass hardness Mhos 7
• Glass thickness 3 mm

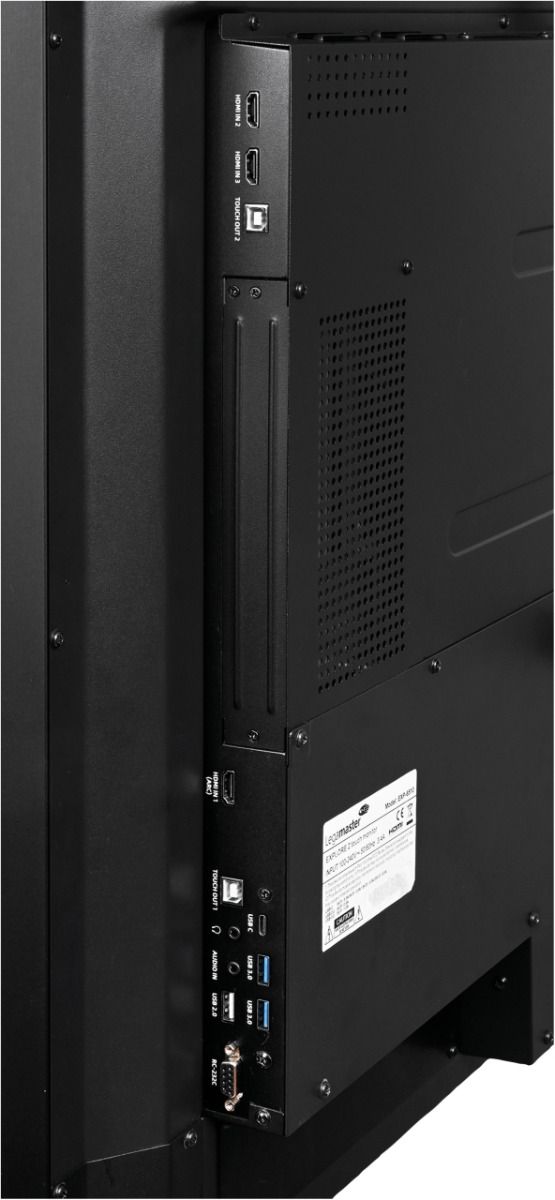

Ports & Interfaces

• HDMI input ports 3x 2.0 Type-A
• USB ports 1x USB 2.0 Type-A, 2x USB 3.0 Type-A, 1x USB 3.1 Type-C (DP1.2 | 100W)
• Audio input ports 1x Jack 3.5 mm
• Audio output ports 1x Jack 3.5 mm
• Serial port type RS-232

Audio & Video

• Built-in camera No
• Built-in microphone No
• Built-in speakers Yes
• Number of speakers 2
• Speaker specifications 2x15W (30 - 90 dB)

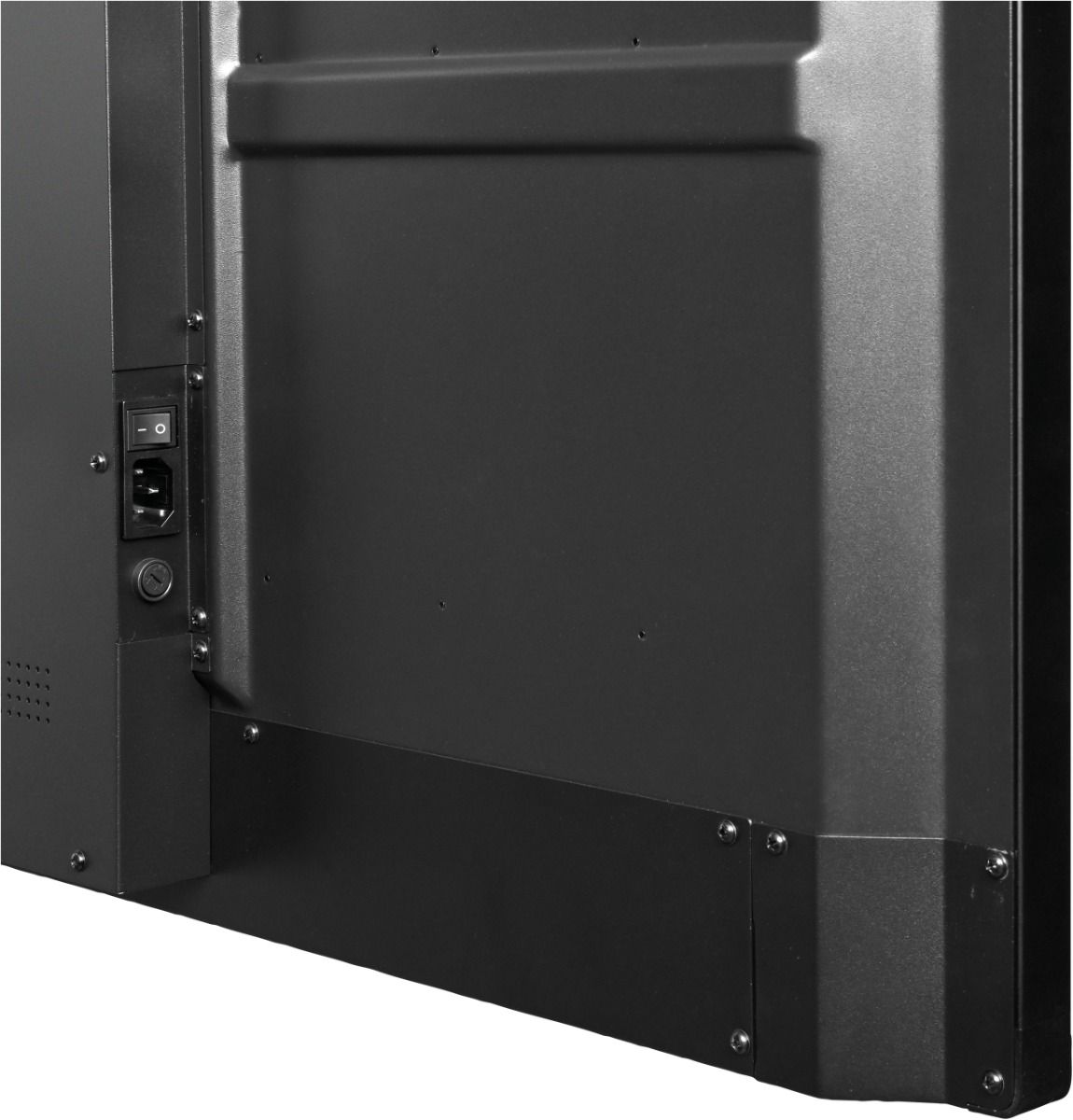

Power

• Power supply AC | 100 - 240 V | 50/60 Hz
• Power consumption (sleep mode) 0.5 W
• Power consumption (standby) 0.5 W
• Energy efficiency class (HDR) D
• Energy efficiency scale A to G

Operational conditions

• Operating relative humidity 20 % - 80 %
• Storage relative humidity 10 % - 60 %
• Operating temperature 0 °C - 40 °C
• Storage temperature -20 °C - 60 °C

Mounting

• VESA mounting interface 800 x 600
• Suitable screw M8

Dimensions & Logistics

• Dimensions of product (W x H x D) 83.9 x 1142.8 x 1959.2 mm
• Dimensions of package carton (W x H x D) 2084 x 230 x 1304 mm
• Gross weight 75.34 kg
• Net weight 59.33 kg

Packaging data

• Package contents e-Screen, Power cable 1.8m, 2x passive stylus, Pen holder, Remote control unit, 2x battery (AAA)

Warranty

• Product warranty 5 year
• Warranty extension 3 year
