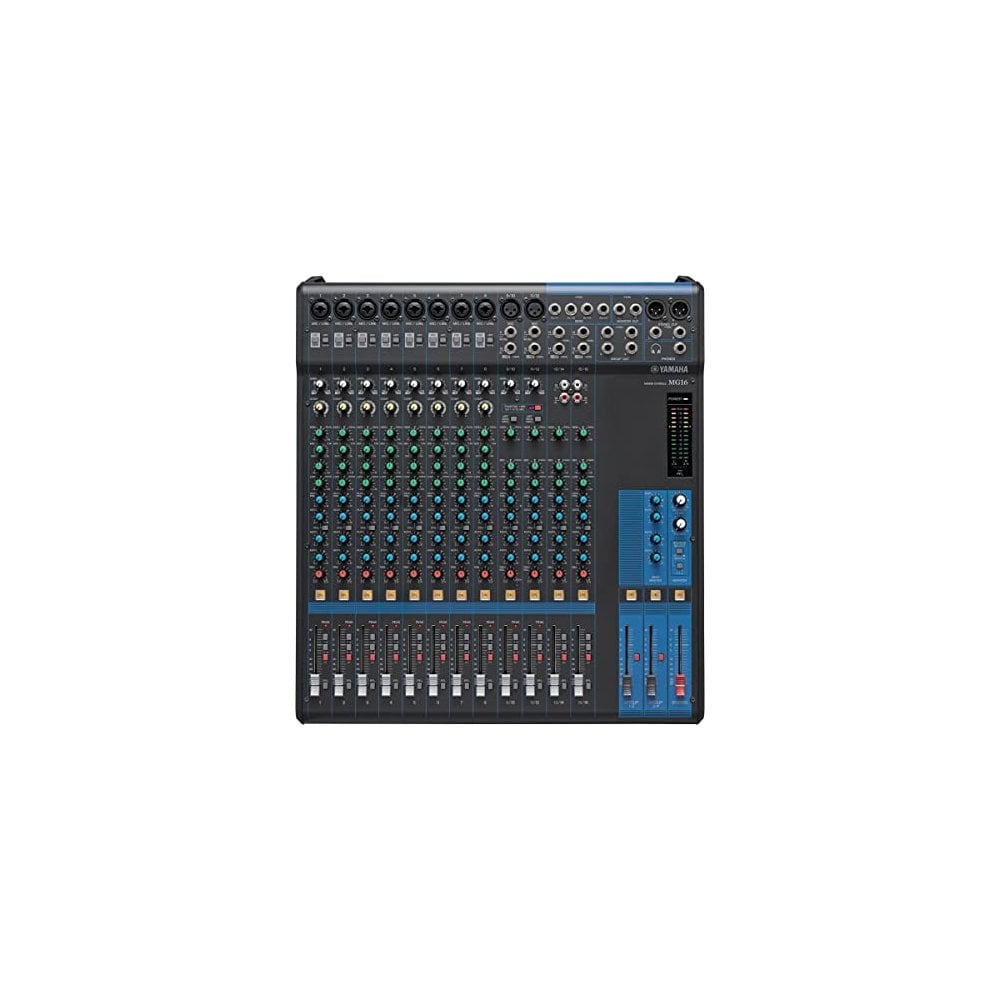

Yamaha MG16 Studio Live Mixer

Yamaha MG16

Completely redesigned for the 3rd Generation of MG mixers, the MG16 features 10 class leading Class A D-PRE microphone preamps.
16-Channel Mixing Console
Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
4 GROUP Buses + 1 Stereo Bus
4 AUX (incl. FX)
“D-PRE” mic preamps with an inverted Darlington circuit
1-Knob compressors
PAD switch on mono inputs
+48V phantom power
XLR balanced outputs
Internal universal power supply for world-wide use
Rack Mount Kit Included
Metal chassis
444 mm x 130 mm x 500 mm (17.5" x 5.1" x 19.7")
6.6 kg (14.6 lbs.)
Outline

• I/OPhantom power+48 V
• Input Channels
  Mono[MIC/LINE]8
  Mono/Stereo[MIC/LINE]2
  Stereo[LINE]2
• Output Channels
  STEREO OUT2
  MONITOR OUT1
  PHONES1
  AUX SEND4
  GROUP OUT4
• BusStereo: 1, GROUP: 4, AUX: 4
• Input Channel Function
  PAD26 dB (Mono)
  HPF80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
  COMP1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
  EQ HIGHGain: +15 dB/-15 dB, Frequency: 10 kHz shelving
  EQ MIDGain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking
  EQ LOWGain: +15 dB/-15 dB, Frequency: 100 Hz shelving
  PEAK LEDLED turns on when post EQ signal reaches 3 dB below clipping

• Total harmonic distortion0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
• Frequency response+0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
• Hum & noise level
  Equivalent input noise-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
  Residual output noise-102 dBu (STEREO OUT, STEREO master fader: Min)
• Crosstalk-78 dB
• Power requirementsAC 100 – 240 V, 50 / 60 Hz
• Power consumption30 W
• DimensionsW444 mm (17.5")
• H130 mm (5.1")
• D500 mm (19.7")
• Net weight6.6 kg (14.6 lbs.)
• Accessories
  Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Rack-mount kit
• OthersOperating Temperature: 0 to +40ËšC
