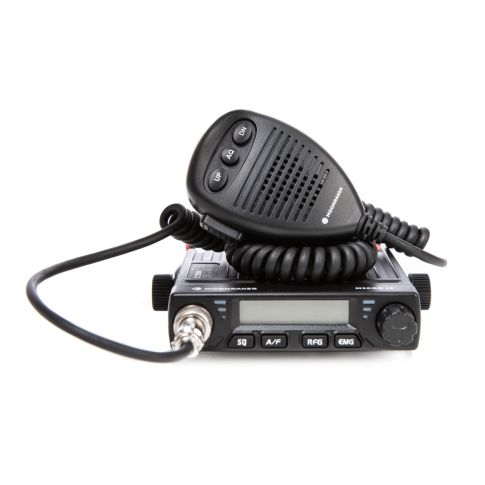

MICRO II Multi Standard CB Transceiver

A great Micro sized CB radio, complete ready to go with cigar power lead for 12v supply, microphone and bracket all at a budget price!

Specificaton

• Modulation Mode: AM/FM
• Frequency Range: 26.330 to 27.99125 MHz (Multistandard)
• Frequency Set: UK 40ch 27.60125 to 27.99125 MHz
• Frequency Control: P.L.L.
• Frequency Tolerance: ±5.0ppm
• Operating Temperature: -20°/+50°C
• DC Input Voltage: 13.2V
• Dimensions: H-104mm × W-108mm × D-25mm
• Weight: 416g
• Antenna Connector: UHF,SO-239
• Current drain Transmit: 2A MAX /Receive: Squelched 0.3A /VOL Max: 0.8A

Transmitter

• Power Output: 4 Watt AM/FM
• Transmission Interference: inferior to 4nW (-54dbm)
• Frequency Response: 300-3000Hz
• Modulation Signal Distortion: inferior to 5% Output
• Impedance: 50 ohms

Receiver

• Sensitivity: Less than 1uV for 10dB(S+N)/N
• Image Rejection: 70dB
• Adjacent Channel Rejection: 60dB
• IF Frequencies: 1st 10.695MHz 2nd 455KHz
• AGC: Less than 10dB change in audio
• Squelch: Output for inputs from 10 to 50000uV /Less than 1uV
• Audio Output Power: 1 Watt
• Frequency Response: 300-3000Hz
