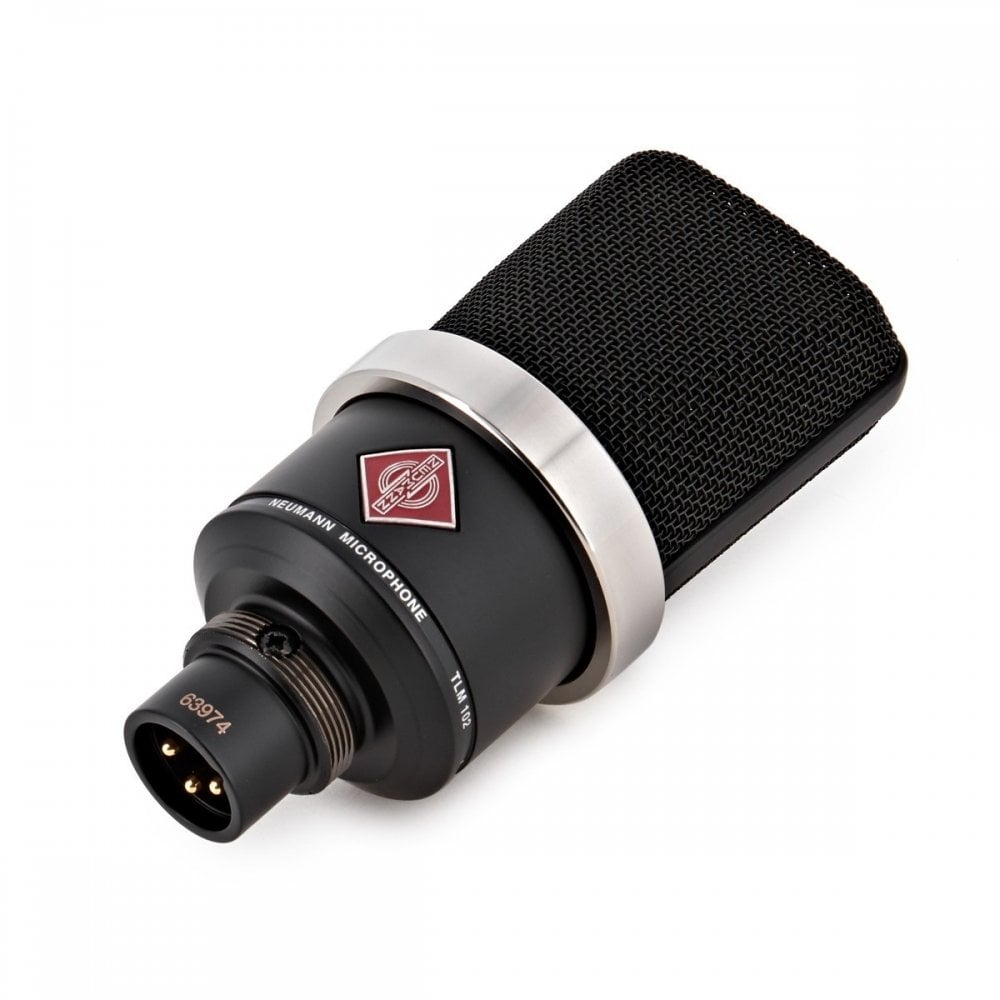

Neumann TLM 102 Microphone Studio Set, Black

Professional-quality components

Constructed with pure quality in mind. The Neumann TLM 102 is a transformerless microphone that features an electronic circuit instead of a traditional output transformer. This innovative design ensures excellent rejection and prevents interference that commonly influences the balanced audio output. Capable of handling sound pressure levels up to 144dB without distortion, the TLM 102 microphone delivers a dynamic range of 132dB (A-weighted).

Natural and accurate reproduction

The innovative design of the Neumann TLM 102 delivers a slight boost above 6kHz which allows vocals to cut through the mix with increased presence and clarity. Up to 6kHz, the frequency response is extremely linear, ensuring minimal colouration and a clearly defined bass range.

The capsule is elastically suspended to reduce and suppress structure-borne noise. Additionally, the TLM 102 is equipped with an integrated pop screen within the grille which suppresses plosives during vocal and speech recording.

Reviews

"A lovely vocal mic that also seems to manage just about anything else you throw at it" - read more at Sound on Sound

Features

• Large-diaphragm microphone with cardioid directional characteristic (pressure gradient transducer)
• Compact, characteristic but smaller-scale Neumann design
• Very high maximum sound pressure level
• Slight presence boost above 6 kHz
• Transformerless circuitry
• "Plug and play" microphone for professional studios, musicians and home recording applications
• Includes a swivel mount

Specifications

• Acoustic Operating Principle: Pressure Gradient Transducer
• Directional Pattern: Cardioid
• Frequency Range: 20Hz - 20kHz
• Sensitivity: 11mV/Pa @ 1kHz into 1 Ohms
• Rated Impedance: 50 Ohms
• Rated Load Impedance: 1 kOhms
• Equivalent Noise Level, CCIR: 73dB
• Equivalent Noise Level, A-Weighted: 12dB-A
• Signal-to-Noise Ratio, CCIR: 73dB
• Signal-to-Noise Ratio, A-Weighted: 82dB
• Maximum SPL: 144dB
• Maximum Output Voltage: 13dBu
• Supply Voltage: 48V, ±4V
• Current Consumption: 3.5mA
• Connector: 3-Pin XLR
• Weight: 210g
• Dimensions: 52mm x 116mm (D x L)
