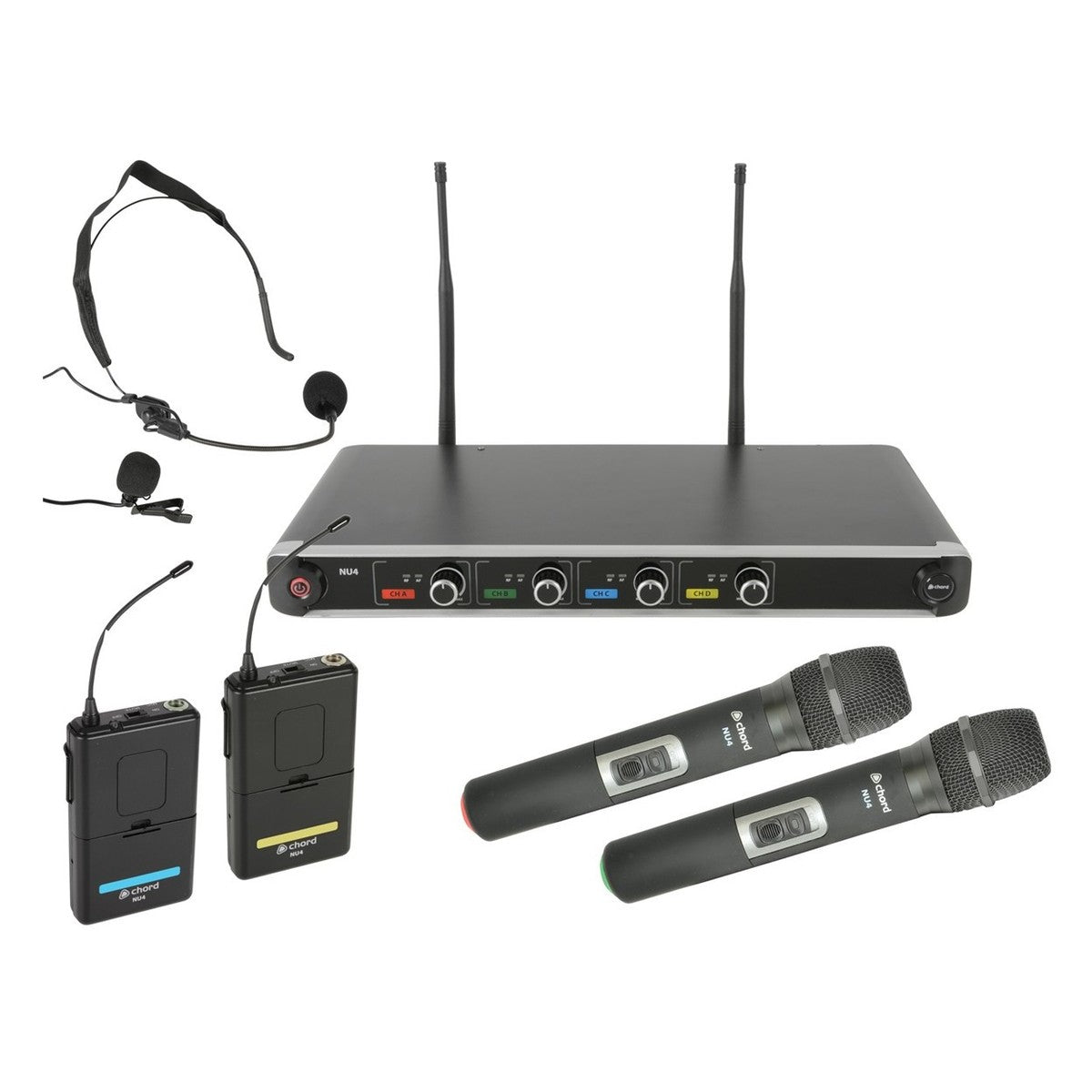

NU4 Quad UHF Wireless System, Combo

• NU4 1U Quad UHF Rack-Mountable Wireless Receiver
• 2 x NU4-H Handheld Transmitters
• 2 x NU4-N Beltpack Transmitters
• 2 x Neckband Microphones
• 2 x Lavalier Microphones
• 2 x UHF Antennas
• 2 x BNC Antenna Extension Leads
• 2 x 19'' Rack-Mount Ears for Receiver
• DC Power Adaptor
• 8 x 1.5V AA Batteries

Features

• UHF wireless system with four independent channels
• 19'' rack-mountable receiver with four separate XLR outputs
• Receiver also features a mixed 1/4'' jack output
• Comes complete with two beltpack transmitters and two handheld transmitters
• Also includes two neckband microphones, and two lavalier microphones
• Four license-free UHF frequencies with pilot tone
• Perfect for a wide variety of applications

Specifications

• Wireless Operating Frequency: 863MHz - 864.8MHz, Channel 70
  • Red: 863.10MHz
  • Green: 854.80MHz
  • Blue: 864.30MHz
  • Yellow: 863.42MHz
• Stability: 10PPM
• Signal-to-Noise Ratio: >80dB
• THD: <0.5 Percent @ 1kHz
• Image Rejection: >85dB
• Wireless Range: 60-metres (max.)
• Output Impedance: 2.2 k Ohms
• Output Level:
  • Balanced: 400mv
  • Unbalanced: 200mv
• Connectors:
  • DC IN
  • 4 x XLR, Male
  • 6.3mm / 1/4'' Jack
  • 2 x BNC Antenna
• Receiver Power Supply: 12-18V DC 500mA adaptor (included)
• Transmitter Power Supply: 2 x AA batteries per transmitter (8 included)
• Dimensions:
  • Receiver: 482mm x 225mm x 44mm (including rack ears)
  • Handheld Transmitter: 243mm x 48mm
  • Beltpack Transmitter: 205mm x 68mm x 25mm
  • Neckband Microphone: 180mm x 140mm x 60mm
  • Lavalier Microphone: 27mm x 12mm
• Weight:
  • Receiver: 3kg
  • Handheld Transmitter: 238g (no battery) (each)
  • Beltpack Transmitter: 76g (no battery) (each)
  • Neckband Microphone: 20g (each)
  • Lavalier Microphone: 20g (each)
