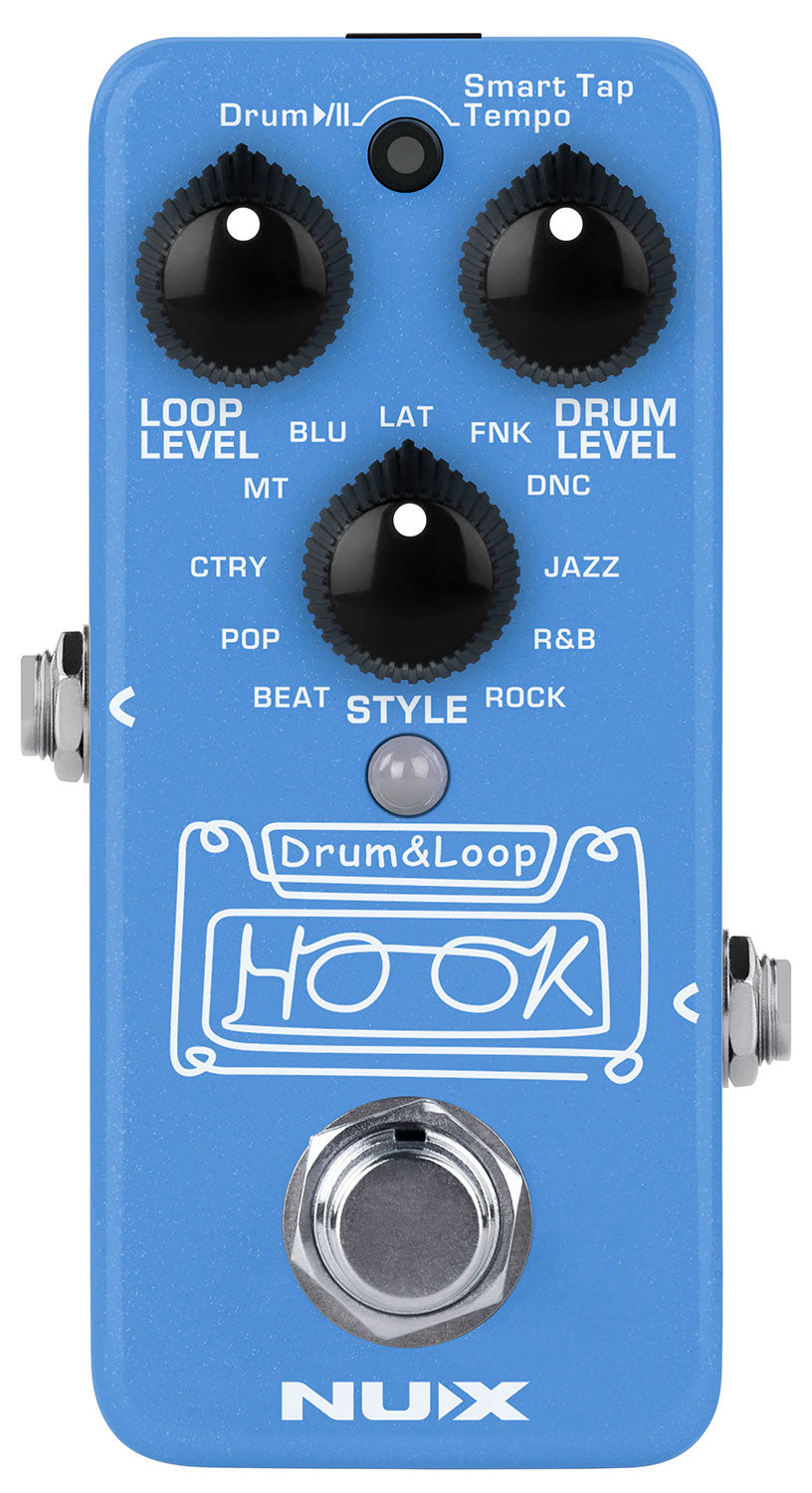

NUX NDL-3 Hook Drum & Loop Looper Effect Pedal

• 24-bit phrase looper with automatic tempo-detection in a mini-housing
• 11 beat styles with smart tap tempo
• max. 6 minutes recording, unlimited overdubs
• drum and loop volumes can be adjusted independently
• independent loop and drum playback
• controls: loop level, drum level
• switches: bypass, style

drum styles:

• beat
• pop
• country
• metal
• blues
• latin
• funk
• dance
• jazz
• R&B
• rock

connections:

• 6.35mm mono-jack input
• 6.35mm mono-jack output
• 3.5mm mini-jack headphone output
• USB-C
• LED indicator for drum play/pause/smart tap tempo
• power: 9V DC power supply, < 100mA (not included)
• input impedance: 1MΩ
• output impedance: 10KΩ
• headphone output impedance: 10 Ω
• true bypass
• analogue dry-through signal for low noise and zero latency
• USB-C port supports file import/export and firmware updates
• dynamic range: 103dB
• DSP processing: 44.1kHz / 32 bit
• A/D D/A sampling rate: 48kHz / 24 bit
• dimensions: 94 x 53 x 51mm
• weight: 175g
