Optimum Electronic Boost Timer Universal 15 Mins - 2 Hour Immersion Heater Energy Saving

Product information

Optimum Electronic Boost Timer Universal 15 Mins - 2 Hour Immersion Heater Energy Saving

• Manufacturer guarantee-6 months

Features and benefits

Optimum Universal 2 Hour Electronic Boost Timer Electronic boost timer for immersion & room heaters from OPTIMUM, part of the Tower / Grasslin Group. Simply press the button to increase the ON time for up to 2 hours. Product Features: Two hour electronic, one button boost timer with visual indicator Provides 4 pre-set delay-to-off outputs Allows timed control of any mains electrical load up to 16 Amps resistive rating 4 pre-set timed outputs: 15 minutes, 30 minutes, 1 hour or 2 hours Suitable for installation on a surface or in-wall pattress box Simply press up to 4 times to select boost output Dimensions: 85 x 85 x 30mm Connections: 4 x wire-protect screw terminals & earth park Resistive Load: 16A Temperature Rating: T45 IP Rating: IP20 Rating: 16A resistive Accuracy: Quartz regulated Mounting: Standard socket box Power Supply: 220 - 240V AC 50HzFor fixed supply wiring only Class II Control / Protection Class IP20 Complies with European Norm EN 60730-1: 2011 Automatic Electrical Controls for Household & Similar Use Complies with European Directives: LVD, EMC, RoHS Not suitable for direct switching of lighting types: Fluorescent, HID, SON, LED Use a contactor for discharge lamps

• Optimum Universal 2 Hour Electronic Boost Timer
• Electronic boost timer for immersion & room heaters from OPTIMUM, part of the Tower / Grasslin Group. Simply press the button to increase the ON time for up to 2 hours.
• Two hour electronic, one button boost timer with visual indicator, Provides 4 pre-set delay-to-off outputs, Allows timed control of any mains electrical load up to 16 Amps resistive rating
• 4 pre-set timed outputs: 15 minutes, 30 minutes, 1 hour or 2 hours

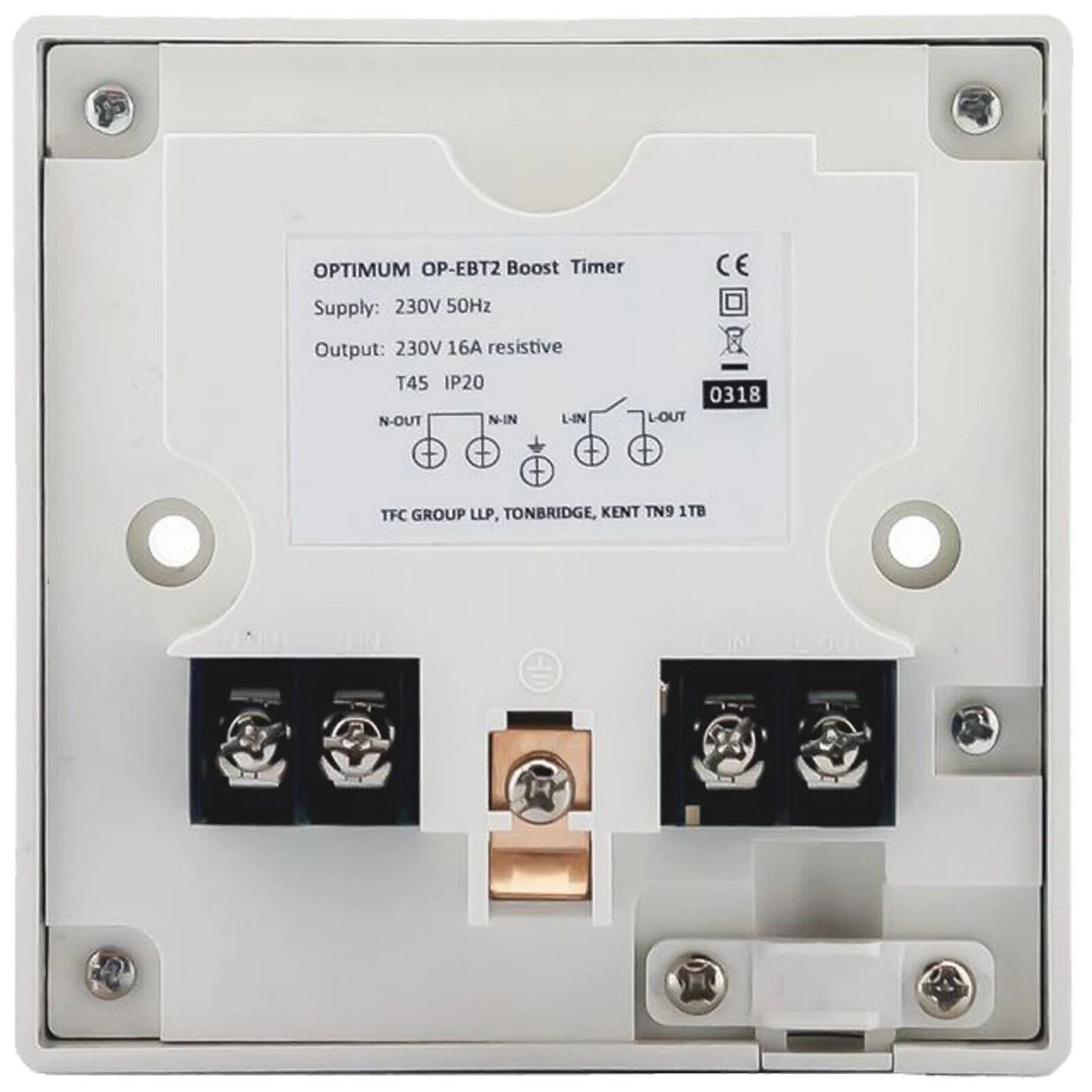

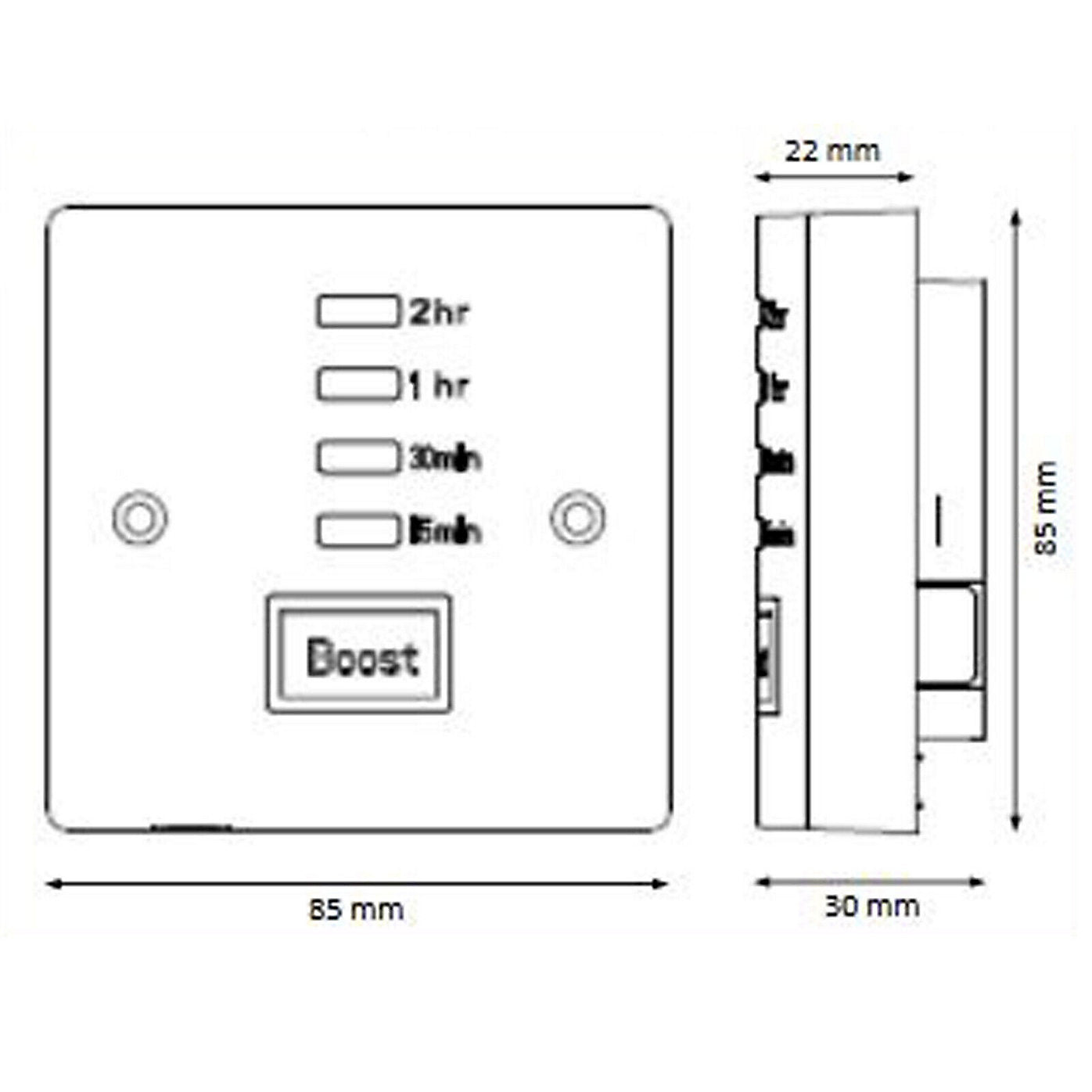

• Suitable for installation on a surface or in-wall pattress box, Simply press up to 4 times to select boost output, Dimensions: 85 x 85 x 30mm, Connections: 4 x wire-protect screw terminals & earth park, Resistive Load: 16A, Temperature Rating: T45, IP Rating: IP20, Rating: 16A resistive
• Accuracy: Quartz regulated, Mounting: Standard socket box, Power Supply: 220 - 240V AC 50HzFor fixed supply wiring only, Class II Control / Protection Class IP20, Complies with European Norm EN 60730-1: 2011 Automatic Electrical Controls for Household & Similar Use, Complies with European Directives: LVD, EMC, RoHS
• Not suitable for direct switching of lighting types: Fluorescent, HID, SON, LED
• Use a contactor for discharge lamps
