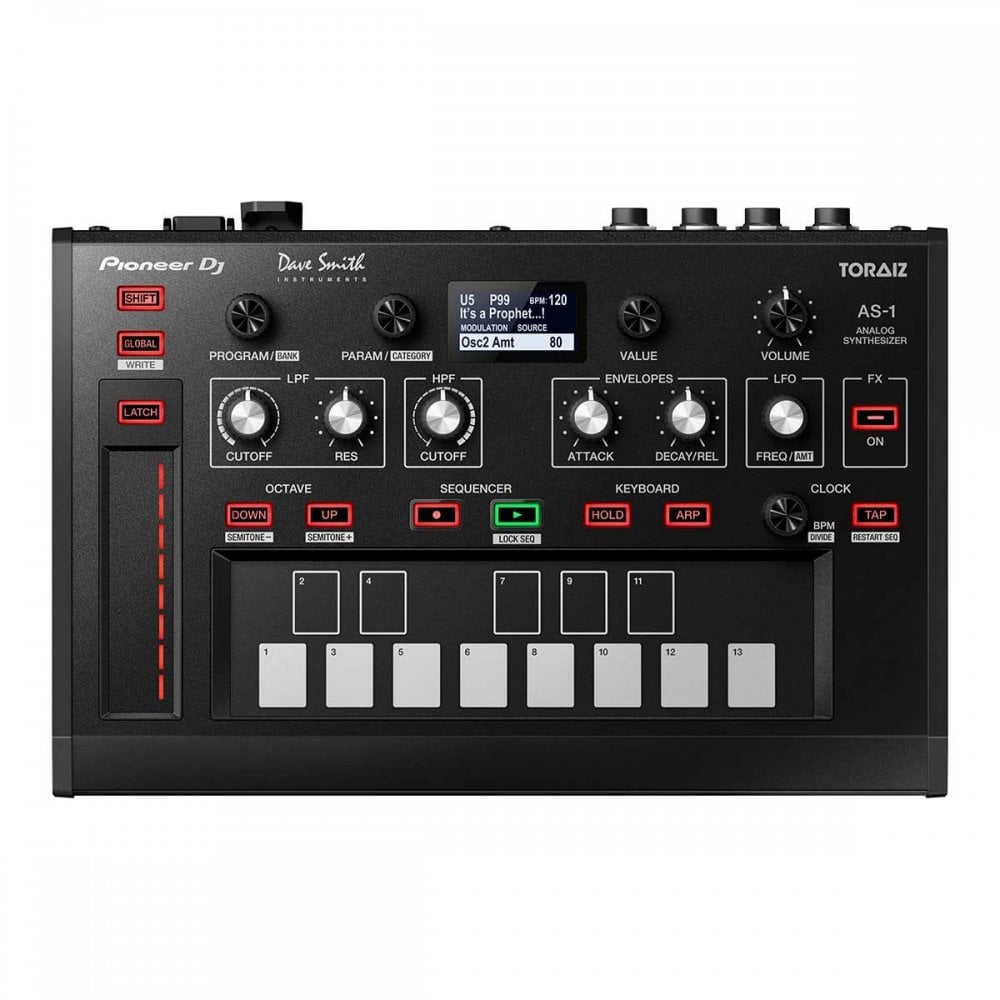

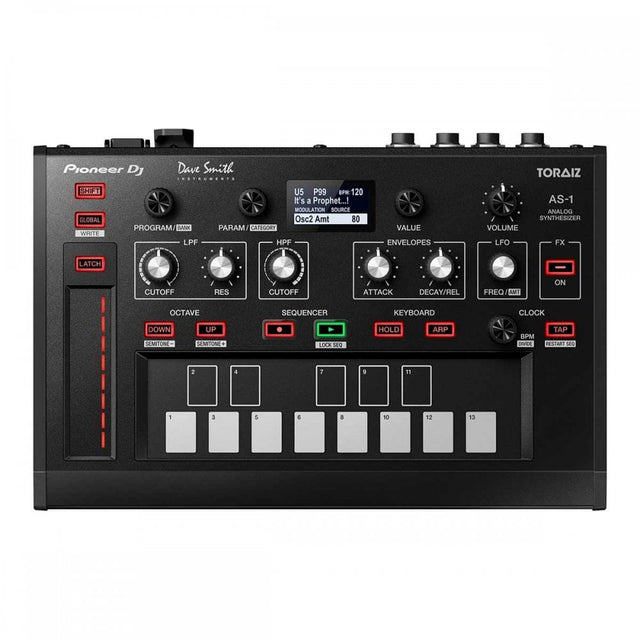

Pioneer Toriaz AS-1

The Pioneer Toraiz AS-1 analog monophonic synthesiser has been designed as the perfect partner for the Toraiz SP-16 sampler in both live performance and studio environments.

Pioneer’s AS-1 uses a true analog synthesis engine based upon the discrete circuitry of the DSI Prophet-6 synth delivering a powerful sound perfect for bass and lead parts. The AS-1 is simple and intuitive to use with 495 presets to provide either inspiration or the perfect sound for your next track.

With two analog VCOs (voltage controlled oscillators), two filters (again voltage controlled) and two FX engines from the Prophet 6 the sound of the Pioneer AS-1 is easily played thanks to the touchpad-style keypad. For those with little or limited knowledge of music theory the AS-1 is equipped with a powerful scale mode that offers 21 on-board scales. There’s also a built in arpeggiator and 64-step sequencer that can be combined with the slider control to create dynamic evolving patterns.

In addition to the powerful sound engine the AS1 can be linked to the SP-16 using MIDI to unlock advanced patterns. Adding loops to your analog sound palette is simple with the SP-16 and thanks to Pro DJ Link the Toraiz system can be synced to your live set with ease.

The main features of the Pioneer AS-1 analog monophonic synthesiser include:

• True analog sound from Dave Smith Instruments’ Prophet-6
• Full programmability and 495 presets
• FX from the Dave Smith Instruments Prophet-6 synthesizer
• FX1: Bucket Brigade Delay, Distortion, Ring Modulation
• FX2: Chorus, High-resonance Phaser, Low-resonance Phaser, Maestro Phaser
• Intuitive user interface and performance features:
• Keyboard and Scale Mode
• Slider
• Arpeggiator
• 64-step sequencer
• Bright OLED display displays parameter information
• USB-B port and MIDI terminals (IN, OUT/THRU) for easy connection to a PC/Mac or an external MIDI device
• Robust metal chassis suitable for use in the studio or on stage

• Sound generation: Analog synthesis
• Input / Output Terminals:
• Outputs: AUDIO OUT L/R ((¼-inch TS jacks), PHONES (¼-inch stereo phone jack)
• MIDI: MIDI IN (5P DIN), MIDI OUT/THRU (5P DIN)
• USB: USB (Type B)
• Others: TRIGGER IN (¼-inch TS jack)
• Power supply: AC adaptor (DC 5V)
• Power consumption: 1,500 mA
• Maximum dimensions (WxDxH) :267.4 mm x 177.7 mm x 68.6 mm / 10.5” × 7.0”× 2.7:
• Weight: 1.4 kg
• Accessories: AC adaptor, Power cord, Quick Start Guide
