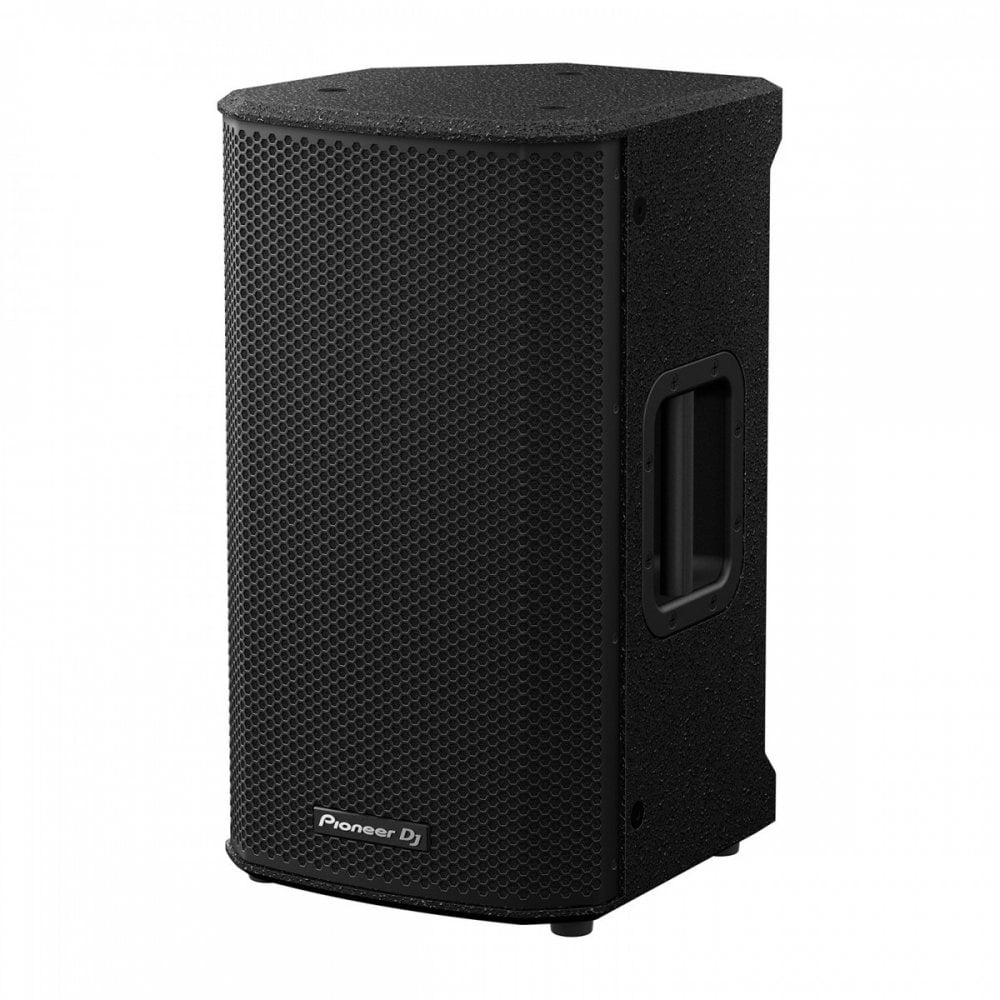

Pioneer DJ XPRS102

Powerful Pioneer PA

Pioneer by name, pioneer by nature. Leaders in research and development for DJ and live sound equipment, Pioneer products are renowned as industry standard. Presenting the powerful XPRS2 PA system range, Pioneer's answer to your need for a dynamic, versatile and portable sound system to broadcast your performances to your crowd. To provide a clear sonic picture, the XPRS102 Full range active speaker is fitted with a 10-inch woofer and a one-inch exit compression driver. A 2.5 inch voice coil for the woofer and a 1.75 inch voice coil for the compression driver enable the XPRS102 to have an impressive frequency response of 50Hz to 20kHz. Powered by a class D amplifier producing 2000W, and a max SPL of 129 dB, the XPRS102 speaker can easily fill your gig space with clear sound.

A versatile design, built to last

Four different DSP pre-sets are available to utilise for your acoustic space, you can choose between Live, Music, Speech, and Floor Monitor depending on the role you're using it for. If you need to EQ the XPRS102 for a certain venue, you can save up to 16 custom user DSP modes for reoccurring places and applications. Housed in a robust, black exterior, reinforced plywood cabinet with a hexagonal mesh speaker grille, the XPRS102 is extra sturdy. With a carry handle attached, the speaker unit is extremely portable and can be taken anywhere, it also features rubber feet for isolation when it its placed on the floor. The XPRS102 active loudspeaker is part of the Pioneer XPRS2 range and it integrates exceptionally with the Pioneer DJ XPRS1152S Active Subwoofer as a whole PA system. This Speaker is a cutting-edge Pioneer PA device, ideal for any event organisers with the need for a dynamic, customisable, and portable PA speaker.

Features

Powerful full range Pioneer PA loudspeaker with a range of innovations

Powerful 2000W output class D amplifier drives the speakers

10inch woofer with a 2.5-inch voice coil and a one-inch compressor tweeter

Frequency response of 50Hz to 20kHz provides a clear and detailed sonic picture

Maximum SPL of 129 dB allows the speaker to provide loud output for big spaces

DSP EQ with four pre-set modes that allow you to tailor the speaker to your space

16 custom EQ settings can be saved by the user to suit reoccurring applications

Housed in a robust, all black plywood cabinet with a carry handle for portability

seamlessly integrates with other Pioneer XPRS2 models to create a full PA system

Specification

• Model: XPRS102
• System Type: Multi-purpose, 2-way active loudspeaker with DSP controls
• Transducer Low: 10” woofer, 2.5” voice coil
• Transducer Driver: 1” exit compression driver, 1.75” voice coil
• Frequency Response (-6 dB): 50Hz – 20kHz
• Max SPL: 129dB
• Power Rating: Class D 2000 W (peak)
• Pre-set DSP modes: Live / Music / Speech / Monitor
• Customizable User DSP Modes: 16
• Electronic Protection: Thermal / Overload / Digital Limiter / Compressor
• Connectors: Input: MIC / LINE (Combo) / HI-Z / LINE (Combo) / 3.5 mm STEREO MINI
• Output: MIX (XLR)
• Power Supply: 110 V – 240 V (50 Hz / 60 Hz)
• Power Consumption: 800 W
• Enclosure Construction: Plywood cabinet, black paint, rubber feet, metal handle
• Mounting: One standard metal pole-mount. 10 x M10 threaded inserts plus integrated pull-back cover
• Dimensions: (W x H x D) 11.77” (299 mm) x 20.5” (520 mm) x 12.2” (310 mm)
• Net Weight: 15.5 kg (34.2 lb)
