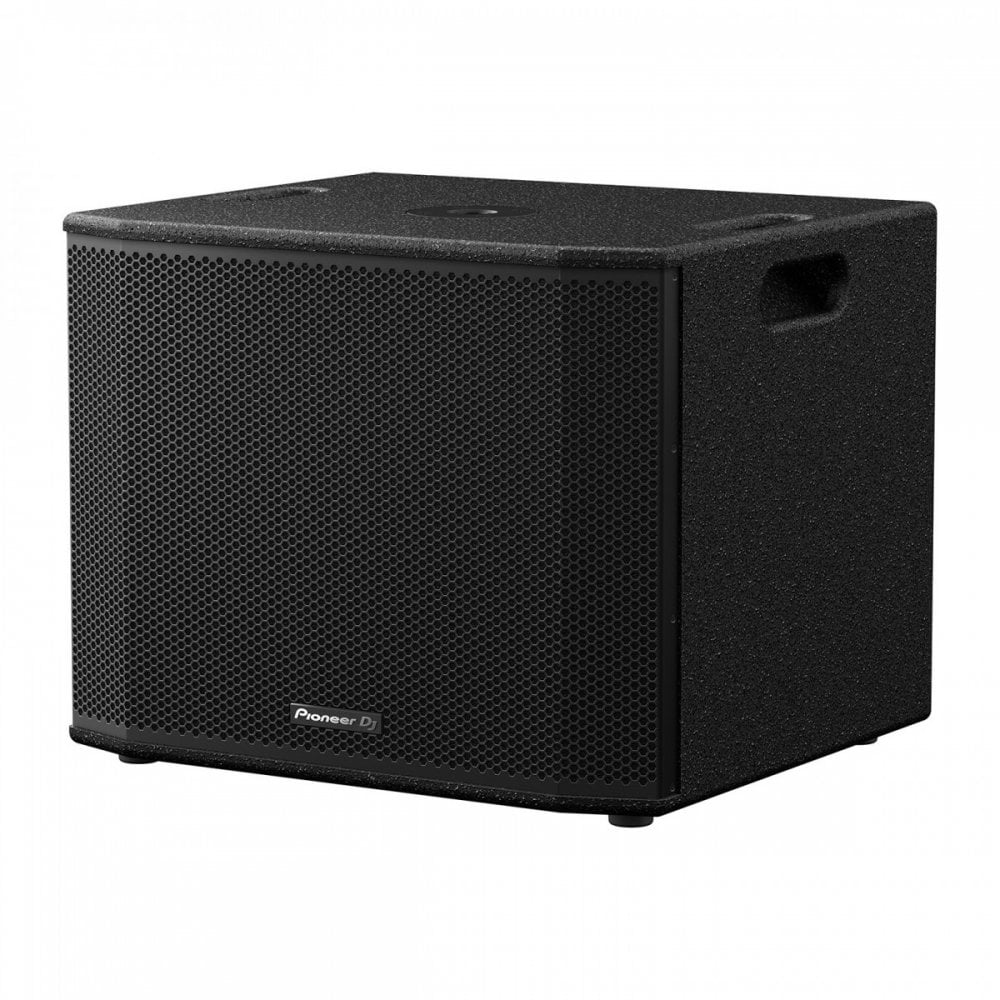

Pioneer DJ XPRS1152S

Powerful Pioneer PA

Pioneer by name, pioneer by nature. Leaders in research and development for DJ and live sound equipment, Pioneer products are renowned as industry standard. Presenting the powerful XPRS2 PA system range, Pioneer's answer to your need for a dynamic, versatile, and portable sound system to broadcast your performances to your crowd. To provide a clear sonic picture, the XPRS1152S full range active subwoofer is fitted with a 15-inch woofer that has a three-inch long excursion voice coil, enabling the XPRS1152S to have a frequency response of 45Hz to 120Hz. Powered by a class D amplifier producing 4000W, and a max SPL of 129 dB, the XPRS1152S subwoofer can easily fill your gig space with bass.

A versatile design, built to last

Four different DSP pre-sets are available to utilise for your acoustic space: Boost, Extended LF, and Normal, you can choose between them depending on the acoustic space or the role you're using it for. Housed in a robust, black exterior, reinforced plywood cabinet with a hexagonal mesh speaker grille, the XPRS1152S is extra sturdy. With a carry handle attached, the sub unit is extremely portable and can be taken anywhere, it also features rubber feet for isolation when it is placed on the floor. The XPRS1152S active loudspeaker is part of the Pioneer XPRS2 range and it integrates exceptionally with the Pioneer DJ XPRS1152S Active Subwoofer as a whole PA system. This Speaker is a cutting-edge Pioneer PA device, ideal for any event organisers with the need for a dynamic, customisable, and portable PA speaker.

Features

• Powerful full range Pioneer PA subwoofer with a range of innovations
• Powerful 2000W output class D amplifier drives the speakers
• 15-inch ferrite woofer with a three-inch excursion voice coil creates detailed bass
• Frequency response of 50Hz to 20kHz provides accurate low frequencies
• Maximum SPL of 129 dB allows the subwoofer to provide loud output for big spaces
• DSP EQ with three pre-set modes that allow you to tailor the speaker to your space
• Housed in a robust, all black plywood cabinet with a carry handle for portability
• seamlessly integrates with other Pioneer XPRS2 models to create a full PA system
• Specification
• Model: XPRS1152S
• System Type: 15” active vented subwoofer
• Power Rating: Class D 4000 W (Peak)
• Transducer Low: 15” ferrite woofer, 3” (76 mm) voice coil with long excursion
• Frequency Response (-6 dB): 45 Hz – 120 Hz
• Max SPL: 129 dB
• 3 DSP Modes: Boost / Extended LF / Normal
• Crossover Frequency: 80 Hz / 100 Hz / 120 Hz Low Pass Filter
• Electronic Protection: Over Heat Protection / Short Circuit Protection / Digital Compressor
• Cooling: Temperature-controlled fan
• Connectors:
• Input: Left Mono (Combo) / Right (Combo),
• Output: Left Mono (XLR) / Right (XLR)
• External Controls: Volume Control / Phase Switch / Switch for EQ Mode Selector / Switch for LPF / Power On With Green LED / Limiter With Red LED
• Power Supply: 100 V – 240 V (50 Hz / 60 Hz)
• Power Supply Consumption: 800 W
• Enclosure Construction: Plywood cabinet, black paint, metal grille with foam, rubber feet, double handles
• Mounting: One standard metal pole-mount
• Dimensions (W x H x D): 22.83” (580 mm) x 17.72” (450 mm) x 19.80” (503 mm)
• Net Weight: 26.3 kg (57.9 Ib)
