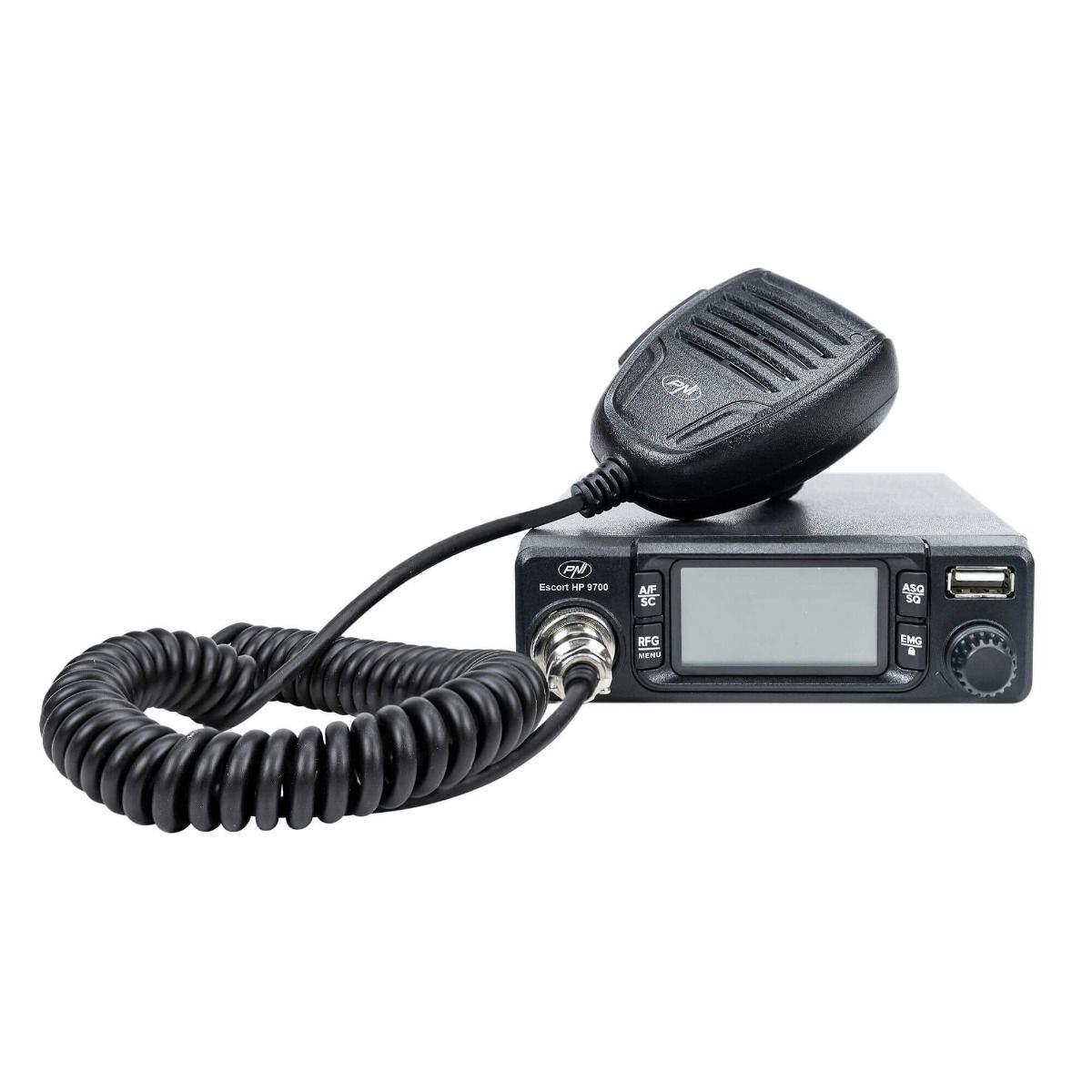

Escort HP9700 - Mobile CB Transceiver with USB

The HP 9700 PNI Escort is a station that easily meets the basic needs of any CB band user. The channel scan function, key lock and immediate access to emergency channels (9/19) via the dedicated button make the HP 9700 an accessible.

The RFG / MENU key on the front panel allows direct access to the additional settings menu: RF Gain level setting, ANC function on / off, brightness level setting and screen contrast.

Specification

• Broadband Type: AM / FM
• Channels: 40
• Frequency: 26.965MHz – 27.405 MHz
• Microphone Type: 6 pin
• Sensitivity (20dB SINAD): >1µV AM / FM
• Emission Power: 4W
• Modulation: 70% -90% (AM) / 1.9KHz (FM)
• Feeding: 12V / 24V
• Operating Temperature: -26°C ~ +80°C
• Dimensions (W x H x H): 115mm x 150mm x 38mm
• Weight: 0.8 kg

Features

• Channel Scan
• RF Gain - 9 levels
• ASQ - 5 levels
• Keypad Lock
• Montage 1DIN
• Urgent Channel
• Noise Filter - ANC (Automatic Noise Cancelling)
• Manual Squelch - 28 levels
• LCD Display
• Channel Monitoring
• Rear panel connections - Additional speaker connection
• Front panel connections - USB port

Included in Box

• Radio Station
• Microphone
• Mounting Bracket and Screws
• Microphone Holder and Screws
• Power Cord
• Lighter Plug
• User Manual
