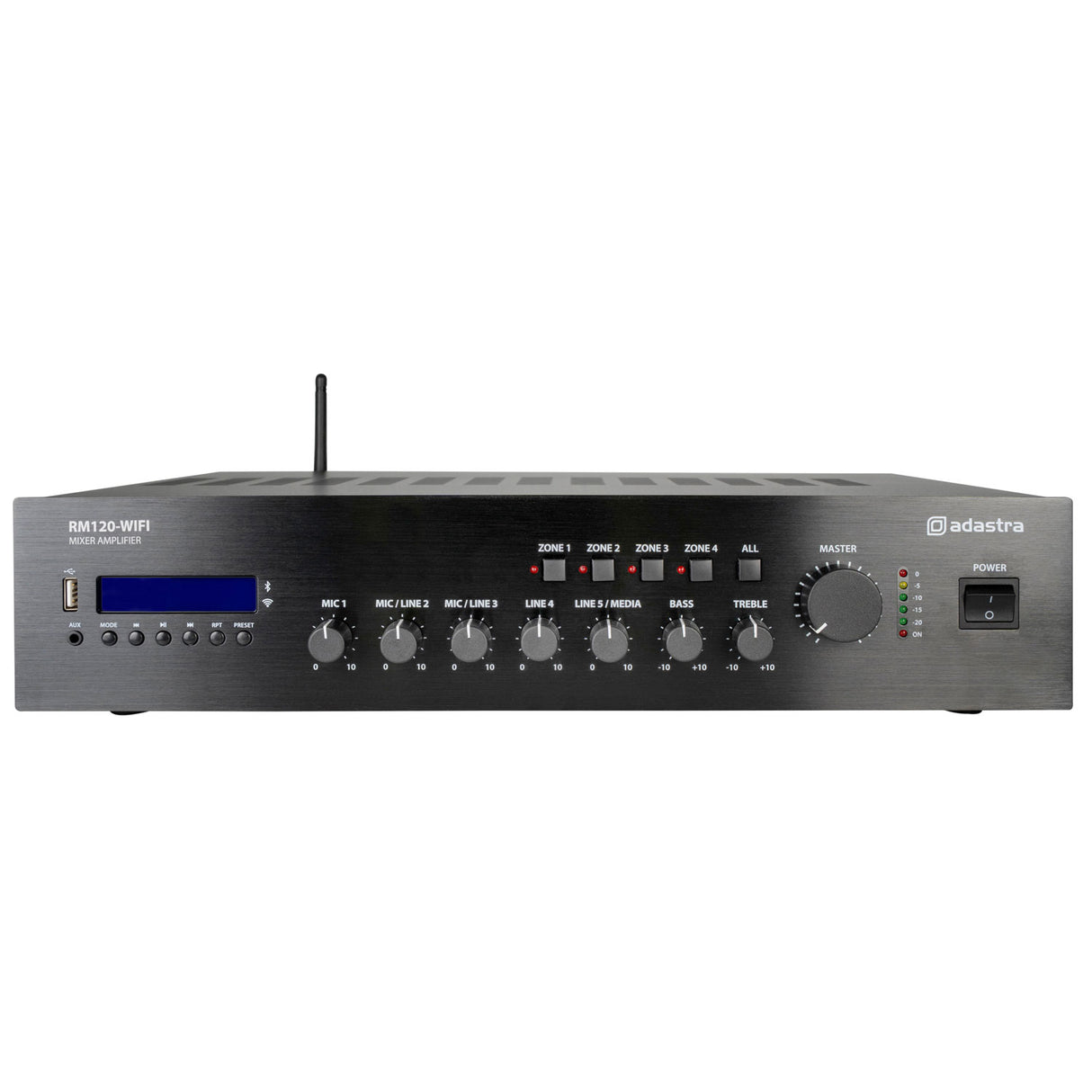

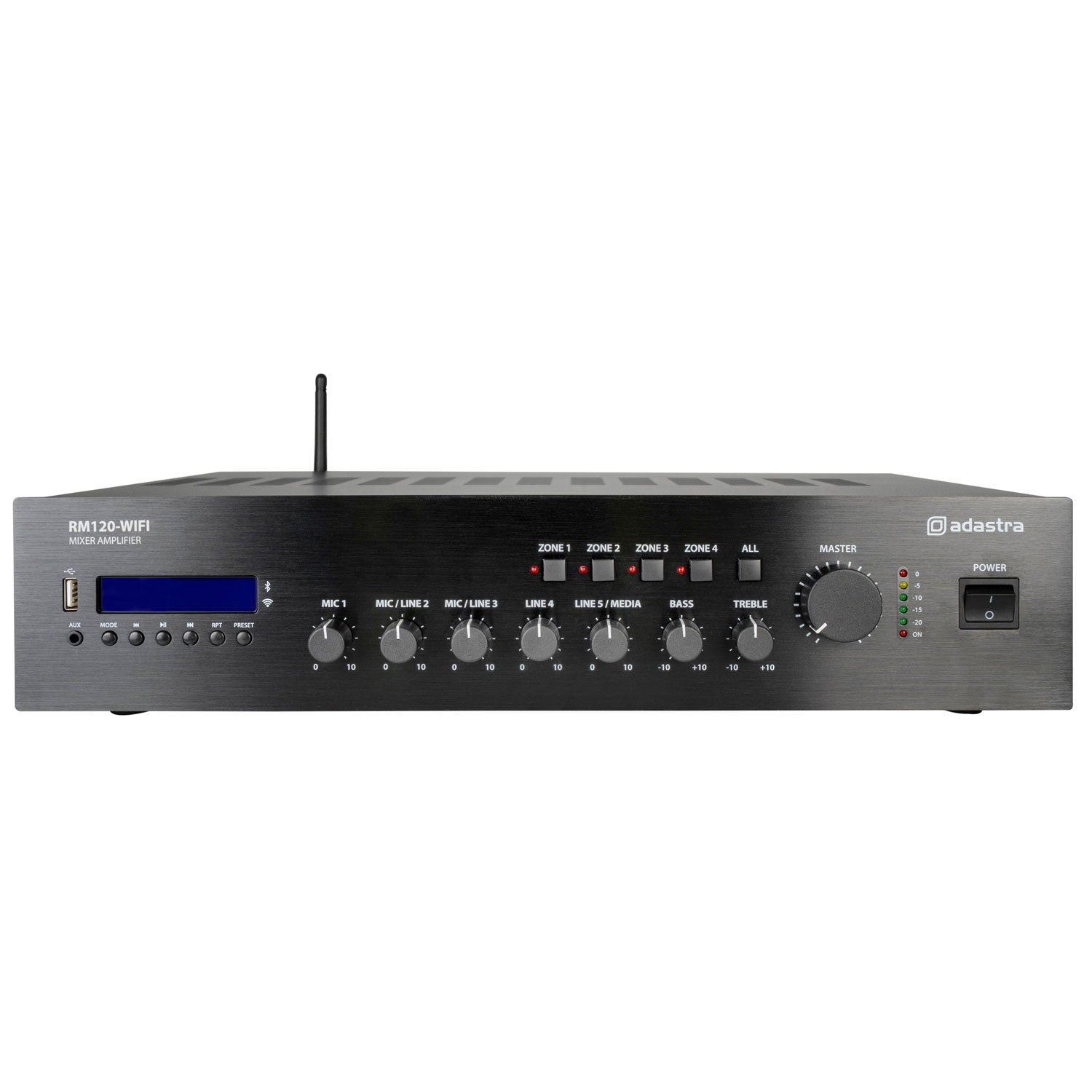

RM-series 100V Mixer-Amplifier with WiFi 120W

RM-series 100V Mixer-Amplifier with WiFi

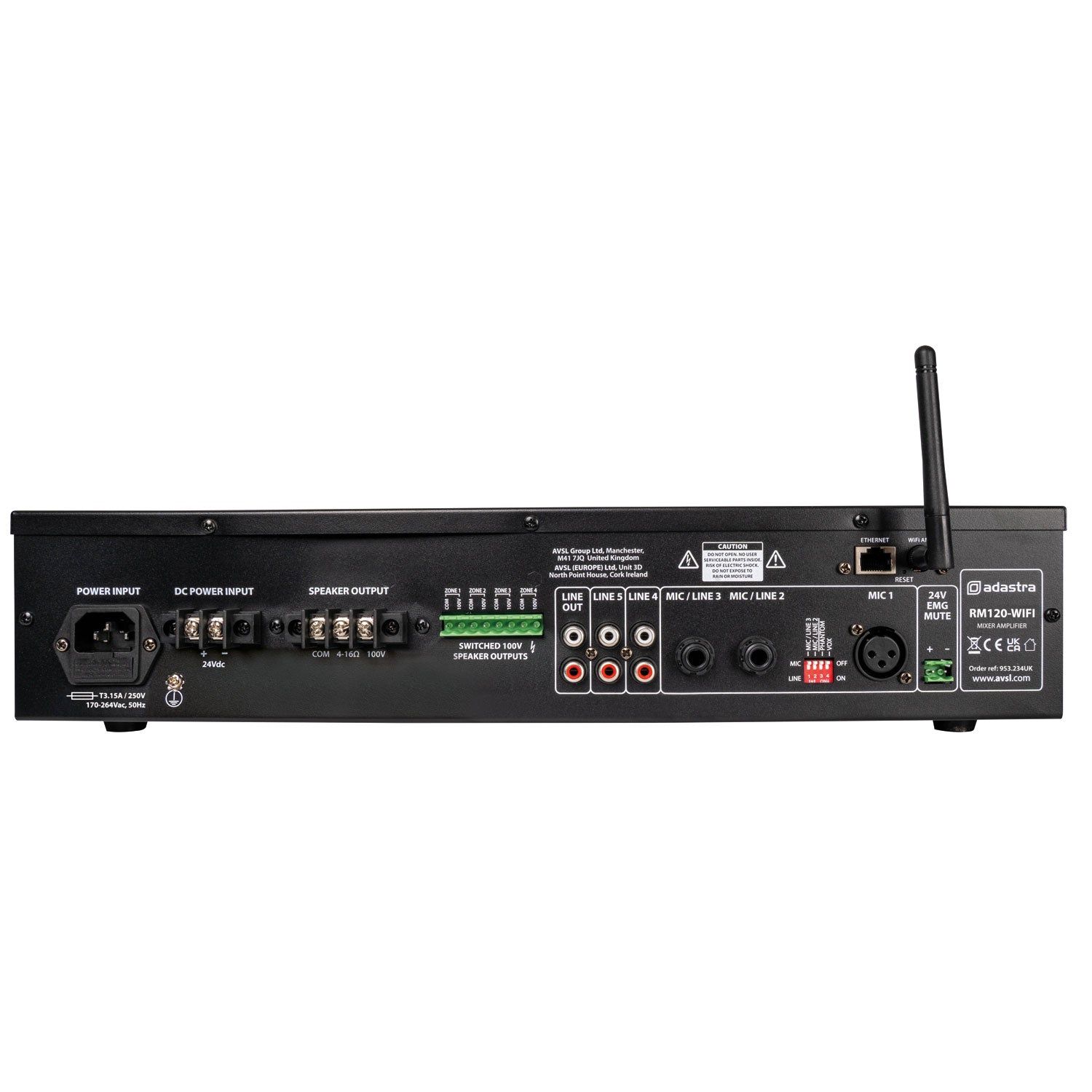

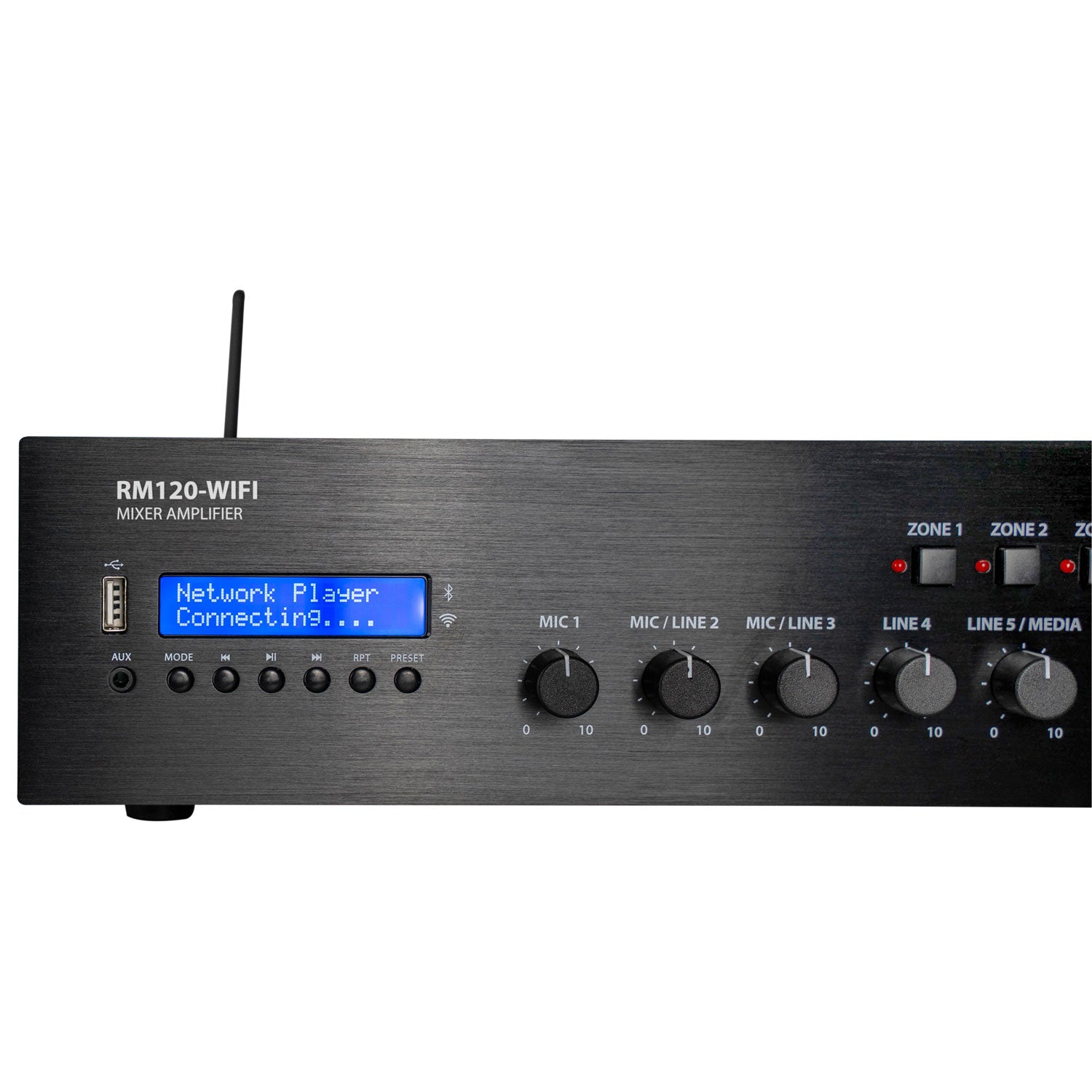

5-channel 19" rack-mountable mixer-amplifier, designed for commercial sound installations to power 100V line speakers or standard low impedance speakers. Input options include XLR (with switchable phantom power), mic/line jack, and RCA line. A switchable ‘voiceover’ feature automatically lowers the background music volume when a signal is detected via mic input 1, and rear panel 24V contacts can mute all except mic input 1 when triggered. A built-in audio player section can play mp3 files from a USB or stream audio wirelessly from Bluetooth®. A main feature of the RM-WIFI models is the ability to connect to a wired or wireless network for streaming audio from internet radio, playback services or even from a local NAS drive. Setup and control for this function is entirely via the WiiM Home­­ smart phone app with a choice of streaming services embedded. Outputs on screw terminal are via 4 switchable zones with a separate "always on" output for priority alert speakers.

• Internet radio or audio streaming from WiFi or LAN connection
• Free WiiM Home Player app for Android or iOS
• USB player and Bluetooth receiver
• 4 switchable 100V outputs and 1 unswitched output
• Optional 4-16 Ohm output
• XLR input with switchable +20V phantom power
• 2 x mic/line inputs, 2 x RCA line inputs, 1 x RCA line output

• Weight6.36kg
• FuseT3.15A
• Output power : rms120W
• Power supply170-264Vac, 50Hz (IEC)
• DC power24Vdc (screw terminals)
• InputsMic XLR, 2 x mic/line jack, 2 x RCA line
• Input sensitivity : mic 1 (balanced)-53dBV
• Input impedance : mic 15k Ohms
• Input sensitivity : line (unbalanced)-15dBV (-18.5dBV line 5)
• Input impedance : inputs 2-51k Ohms
• Line outputRCA
• Speaker outputs4 switched + 1 non-switched 100V / 4-16 Ohms / COM
• Bluetooth version5.0
• Network connectionRJ45 (LAN) or 2.4GHz WiFi (802.11 b/g/n)
• Remote controlvia WiiM Home app for iOS or Android
• ControlsMic1, mic/line2+3, line4+5, bass, treble, master volume
• Equaliser : bass100Hz ±10dB
• Equaliser : treble10kHz ±10dB
• Rear panel switchesPhantom, Vox, Mic/Line (2 + 3)
• Phantom power+20V (mic 1 XLR, switchable)
• Audio sourceNetwork audio, USB player, Bluetooth receiver
• Emergency control24V contacts - mute all except Mic.1 when triggered
• THD<1.0%
• Dimensions433 x 320 x 88mm
