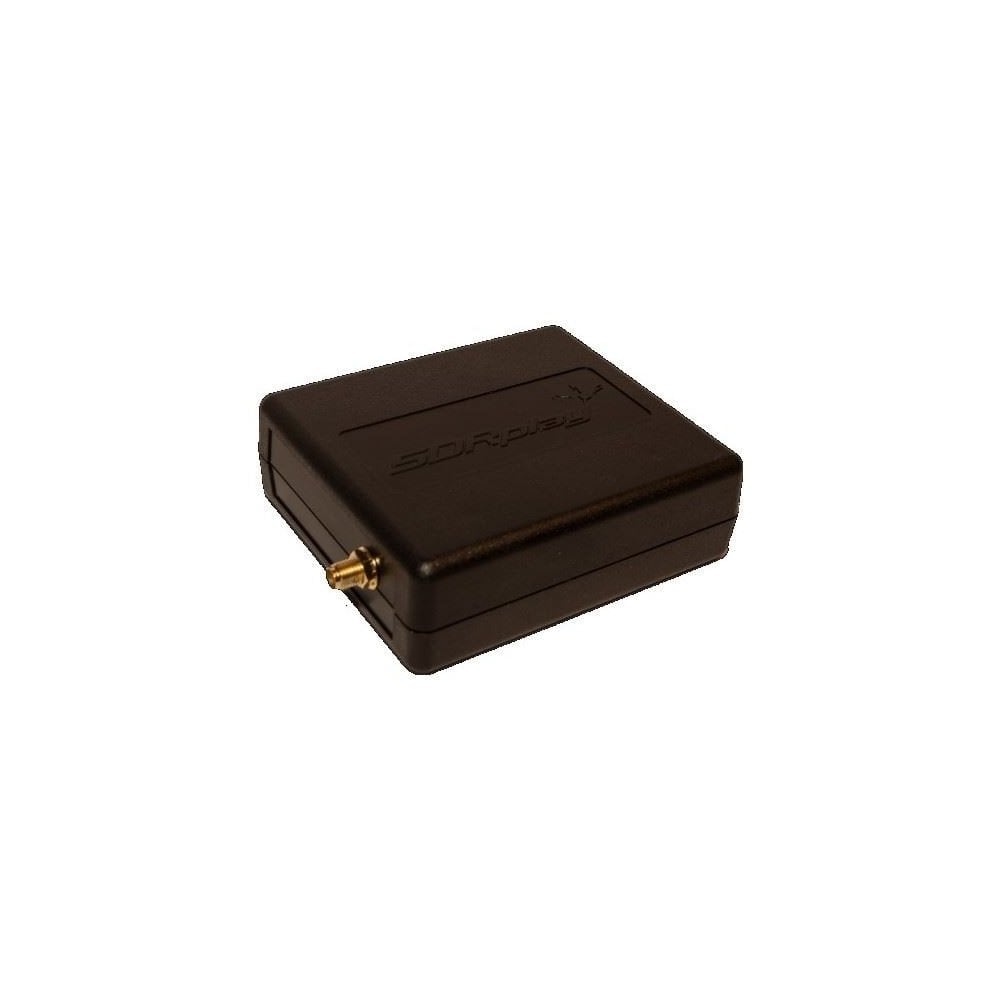

SDRPLAY RSP1A SDR RECEIVER

• Covers all frequencies from 1kHz through LF, MW, HF, VHF, UHF and L-band to 2GHz, with no gaps • Excellent dynamic range for challenging reception conditions • Low levels of spurious responses • Works with all the popular SDR software (including HDSDR, SDR Console, Cubic SDR and SDRuno) • ExtIO based plugin available • Software upgradeable for future standards • Strong and growing software support network • API provided to allow demodulator or application development • Multiplatform driver and API support including Windows, Linux, Mac, Android and Raspberry Pi 2/3 • Up to 16 individual receivers in any 10MHz slice of spectrum using SDRuno • Calibrated S meter and power measurements with SDRuno • Ideal for monitoring of ISM/ IoT/ Telemetry bands

General • Weight 110g • Size: 98mm x 88mm x 34mm (case only) • Low Current: 185 mA (excl bias T) Connectivity • Single 50Ω RF connector (SMA) • USB 2.0 (high speed) type B socket Frequency Range • Continuous coverage 1kHz – 2GHz ADC Characteristics • Sample frequency 2 – 10.66MSPS • 14 bit native ADC (2 – 6.048MSPS) •12-bit (6.048- 8.064 MSPS) •10-bit (8.064- 9.216MSPS) • 8-bit (> 9.216 MSPS ) Bias T • Software Selectable 4.7V @ 100mA Reference • High Temperature Stability (0.5ppm) TCXO • In-field trimmable to 0.01ppm. Maximum recommended input power • 0dBm continuous, 10dBm for short periods Typical Noise Figures • 18dB @ 2MHz • 15dB @ 12MHz • 15dB @ 25MHz • 15dB @ 40MHz • 3.3dB @ 100MHz • 3.3dB @ 200MHz • 7.7dB @ 386MHz • 3.6dB @ 660MHz • 5.0dB @ 1500MHz • 6.3dB @ 1800MHz IF Modes • Zero IF, All IF bandwidths • Low IF, IF bandwidths ≤ 1.536MHz IF Bandwidths (3dB) • 200kHz • 300kHz • 600kHz • 1.536MHz • 5.0MHz • 6.0MHz • 7.0MHz • 8.0MHz Front End Filtering Automatically configured front end filtering: Low Pass • 2MHz Band Pass • 2-12MHz • 12-30MHz • 30-60MHz • 60-120MHz • 120-250MHz • 250-300MHz • 300-380MHz • 380-420MHz • 420-1000MHz High Pass • 1000MHz Notch Filters • FM Filter: >50dB 85 – 100MHz • MW Filter: >30dB 660 – 1550kHz • DAB Filter: >30dB 165 – 230MHz

Requires sma scanner antenna and usb lead
