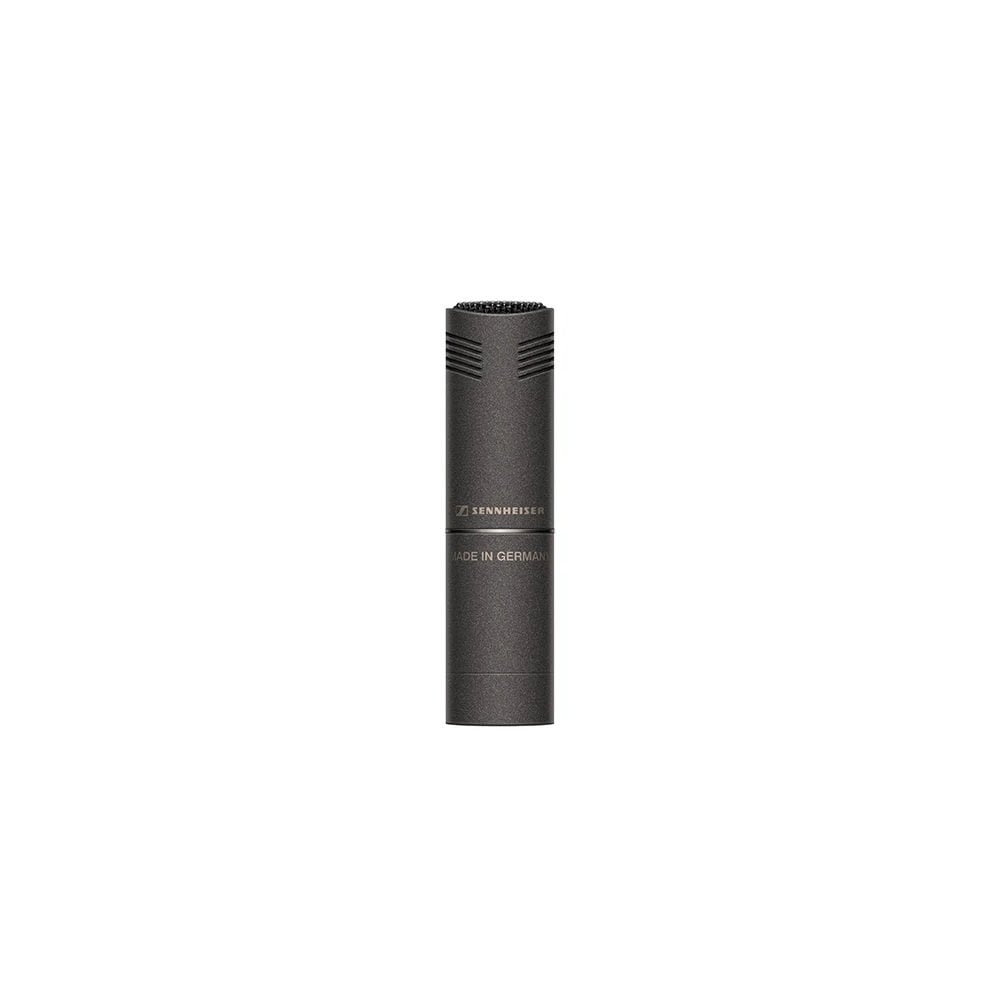

Sennheiser MKH 8040 Microphone

Product features

Microphone connectionXLR 3p

Microphone sensitivity (dBV/PA)-34

Microphone impedance0-49 ohms

Low-cut filter

Maximum SPL140 dB - 149 dB

Maximum frequency40 - 50 kHz

Microphone accessoriesmicrophone clip, windshield, case

Minimum frequency30 - 34 Hz

Pad switchno

Polar patterncardioid

Especially foruniversal

Stereono

Interchangable capsulesyes

Weight and dimensions including packaging

Weight (incl. packaging)858 gr

Dimensions (incl. packaging)24.5 x 17.0 x 8.2 cm

Product specifications

Sennheiser MKH 8040

Small-Diaphragm Condenser Microphone

transducer: RF condenser

frequency response: 30 Hz - 50 kHz

output: 3-pin XLR

pickup pattern: cardioid

sensitivity: 20 mV/Pa, (-34 dBV/Pa)

nominal impedance: 25 Ohms

min. terminating impedance: 1000 Ohms

phantom power supply: 48 V +/- 4 V

equivalent sound level: 13dB

equivalent sound level CCIR 468-3 weighted: 22dB

max. sound pressure level (passive): 142dB SPL

Power consumption: 3.3mA

dimensions: (Ø x L): 1.9 x 4.1cm

weight: 25g
