BLX24/SM58 Wireless Handheld System

The Industry-Standard Microphone

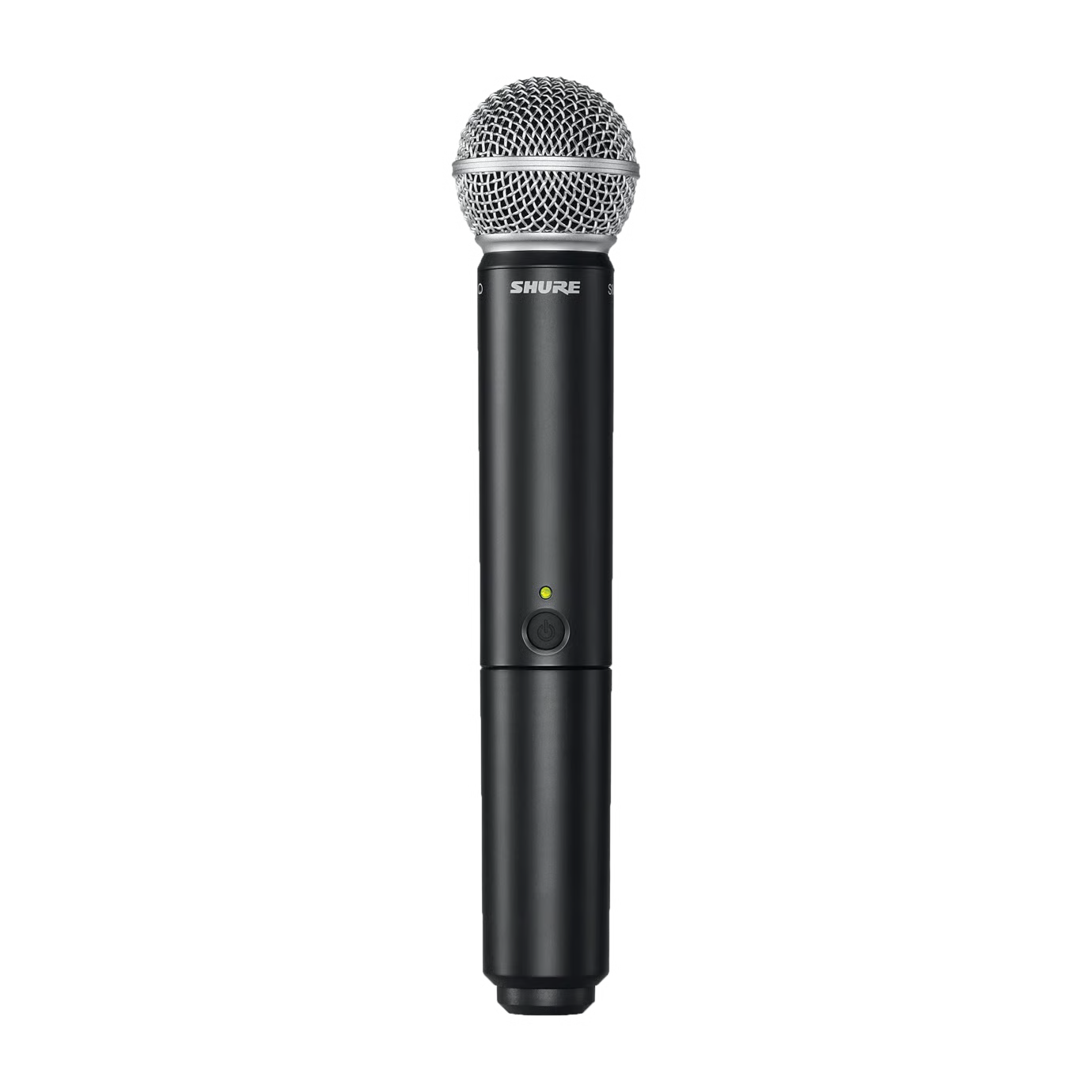

Included in this system is the Shure SM58 microphone, an industry-standard cardioid dynamic microphone with exceptional versatility, engineered to deliver warm and clear vocal reproduction. The SM58 features a shock-absorbing grille that is designed to dent upon impact, protecting the cartridge from damage and ensuring reliable performance.

Internally, the SM58 utilises calculated porting within the capsule to deliver a uniform cardioid polar pattern across the frequency range for maximum gain-before-feedback. Additionally, an adhesive compound secures the transformer and prevents both moisture and temperature changes from entering the handle while also producing an airtight chamber to enable proper shock mounting and low-end frequency response.

The Shure SM58 is equipped with a highly effective built-in spherical filter which minimises wind, breath and vocal 'pop' noises. The cardioid pickup pattern isolates the main sound source while minimising unwanted background and handling noise.

Throughout its 50 years within the music industry, the quality of the SM58's vocal performance attracts the legendary attention from the likes of Henry Rollins, Patti Smith, Sheryl Crow, Cage The Elephant and The Derek Trucks Band. The latter even flattened the microphone under their tour bus, yet the SM58 still remained completely functional.

The iconic Shure microphone offers durable construction with a refined shock-mount system that guarantees consistent high-quality performance both indoors and outdoors.

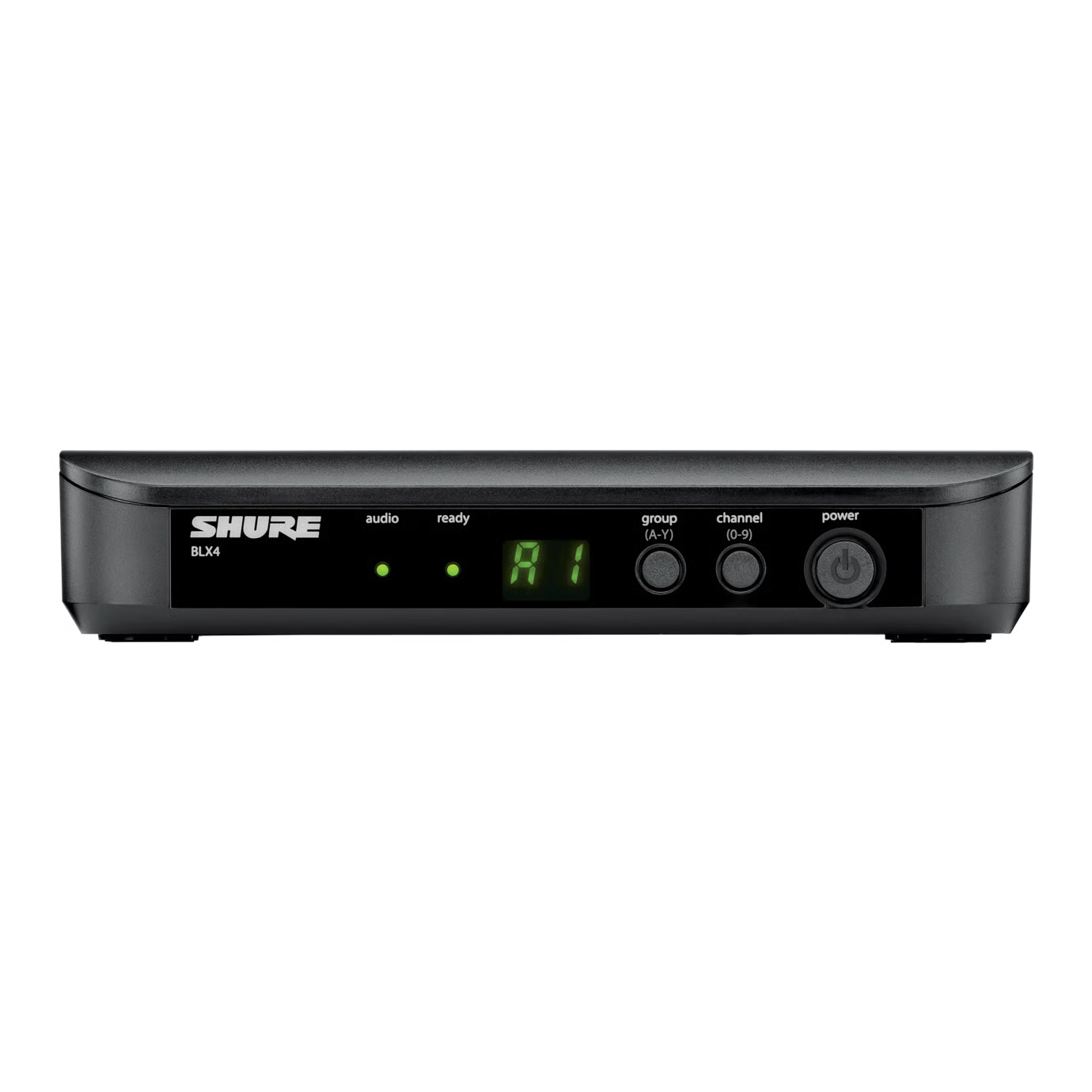

Rack Mount Analogue Receiver

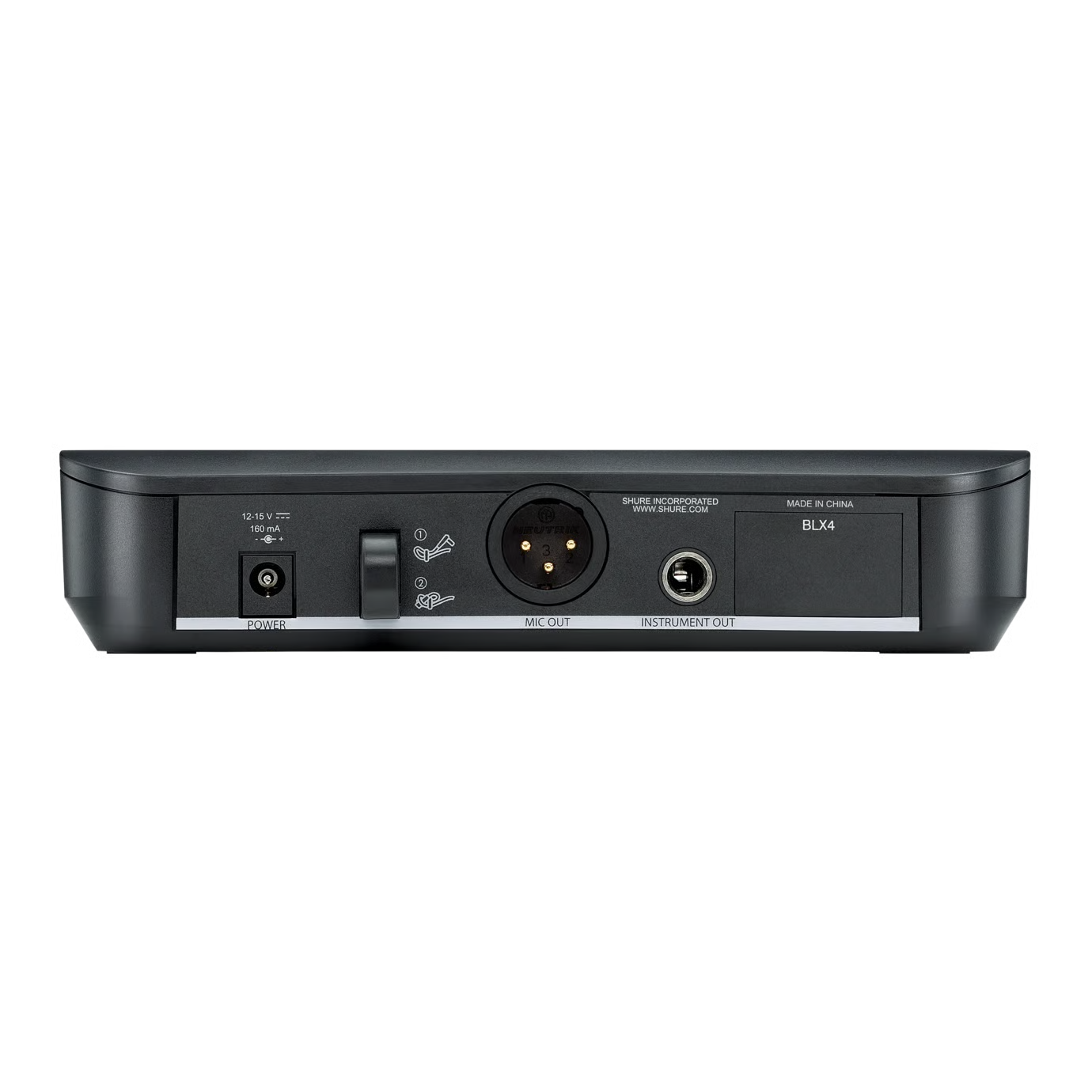

The BLX4R offers users up to 12 compatible systems per frequency band with an easy-to-use QuickScan frequency selection. The receiver features both XLR and 1/4" jack output connectors, with removable antennas for quick antenna distribution. A two-colour audio status indicator provides users with the ability to identify when audio levels are too high as the light will show red. Included with the system is a rack-mount kit so you can setup and install the BLX4R for performance purposes.

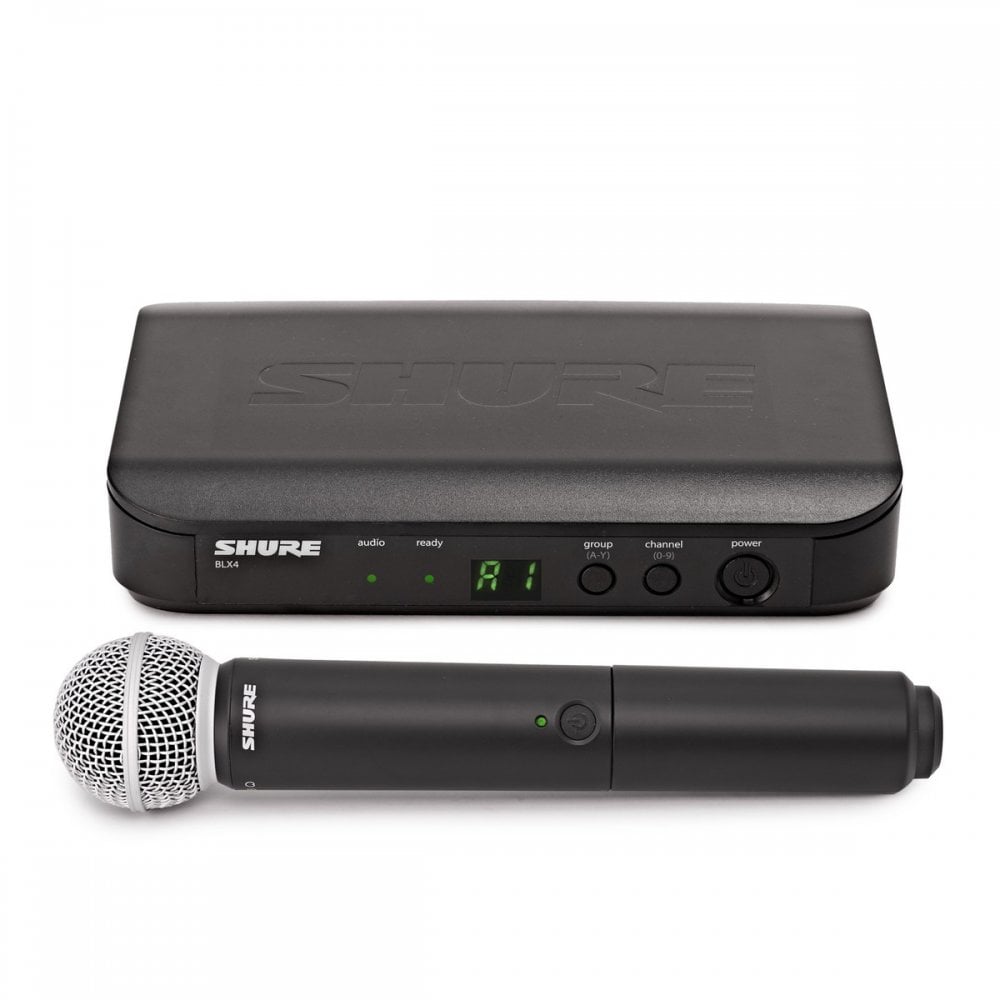

Included In The System

• 1 x BLX2/SM58 Dynamic Vocal Microphone With Handheld Transmitter
• 1 x BLX4R Wireless Receiver
• 1 x Carrying Case
• 1 x Swivel Adapter
• 1 x Power Supply
• 1 x Thread Adapter

Features

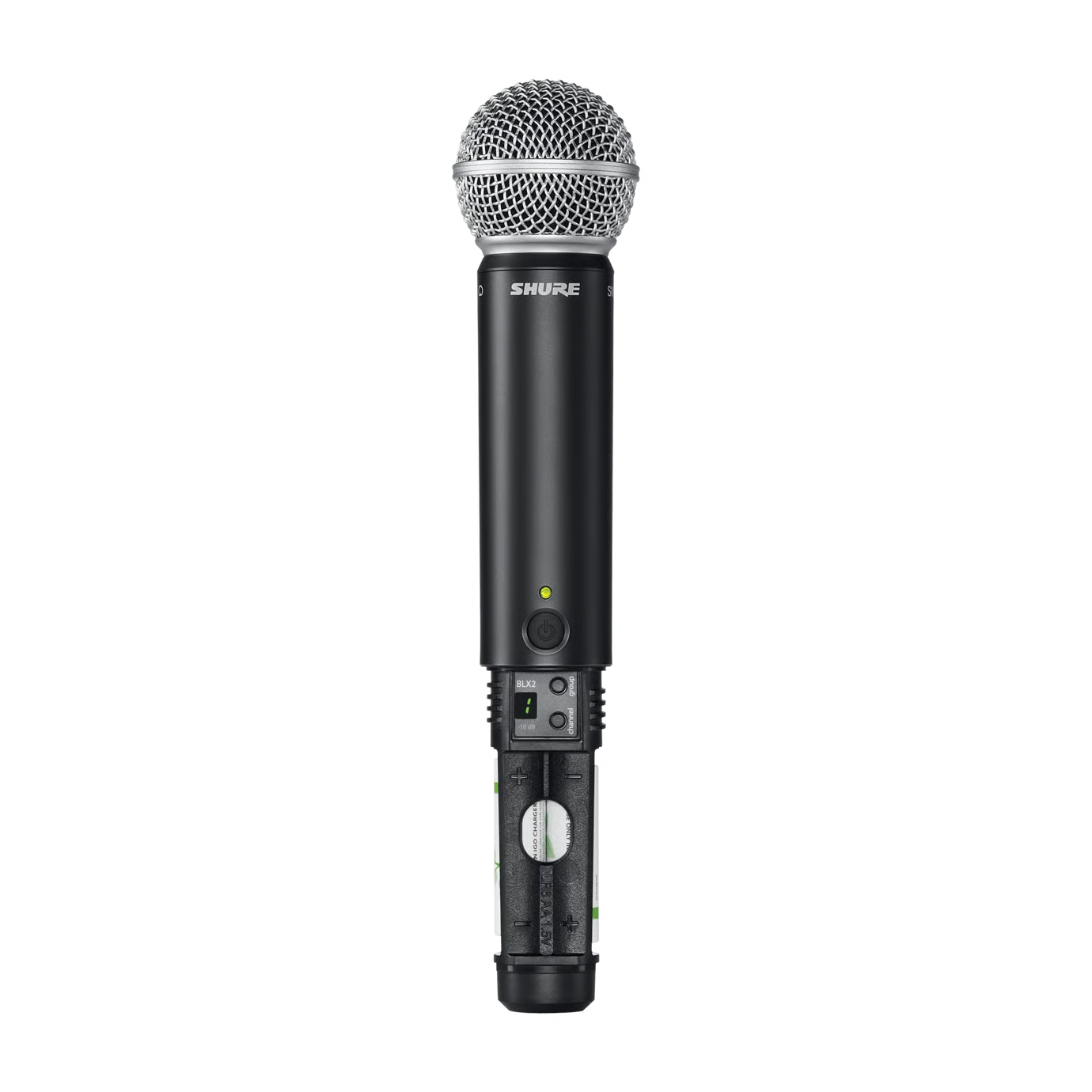

• BLX2/SM58 Wireless Transmitter
• 100m operating range
• Power & battery status LED
• Adjustable gain control
• Easy frequency matching
• Battery life of up to 14 hours
• Integrated microphone capsule design
• Gain attenuation of -10dB
• Lightweight & robust construction
• BLX4R Rack Mount Receiver
• One-touch QuickScan frequency selection
• Up to 12 compatible systems per frequency band
• XLR & 1/4" output connectors
• Two-colour audio status indicator LED
• Adjustable output level
• Removable antennas
• LC display with detailed RF & audio metering

Specifications

• Wireless Frequency: 606.6MHz - 613.5MHz
• BLX2/SM58 Wireless Transmitter
• Form Factor: Handheld
• Battery Life Alkaline: 14 h
• Operating Range (Up To): 100m (Under Typical Conditions)
• Transmitter Housings: Moulded ABS
• Batteries: AA
• Battery Status: Multi-Colour LED
• Functionality: Transmitter
• Weight: 340g
• Transmitter Weight: 218 g
• Dimensions: 224mm x 53mm x 53mm
• BLX4R Wireless Receiver
• Transmission: Analogue
• Type Of Power Supply: External
• Receiver Housings: Moulded ABS, Metal
• Active Antenna Possible: Optional with UABiasT
• Number Of Compatible Systems Per Frequency Band: 12
• Scan Features: Quick Scan
• Detachable Antennas: Yes
• Rack Hardware: Included Rack Mounts Brackets
• Receiver Displays: Multi-Function LCD
• Receiver Type: Single
• Included Antenna: External 1/4-Wave
• Battery Status: Multi-Colour LED
• Image Rejection: 50 dB, Typical
• RF Sensitivity: -105 dBm, For 12dB SINAD, Typical
• Antenna Input Impedance: 50Ω
• Weight: 998 g
• Dimensions
• Height: 45 mm
• Width: 198 mm
• Depth: 163 mm
