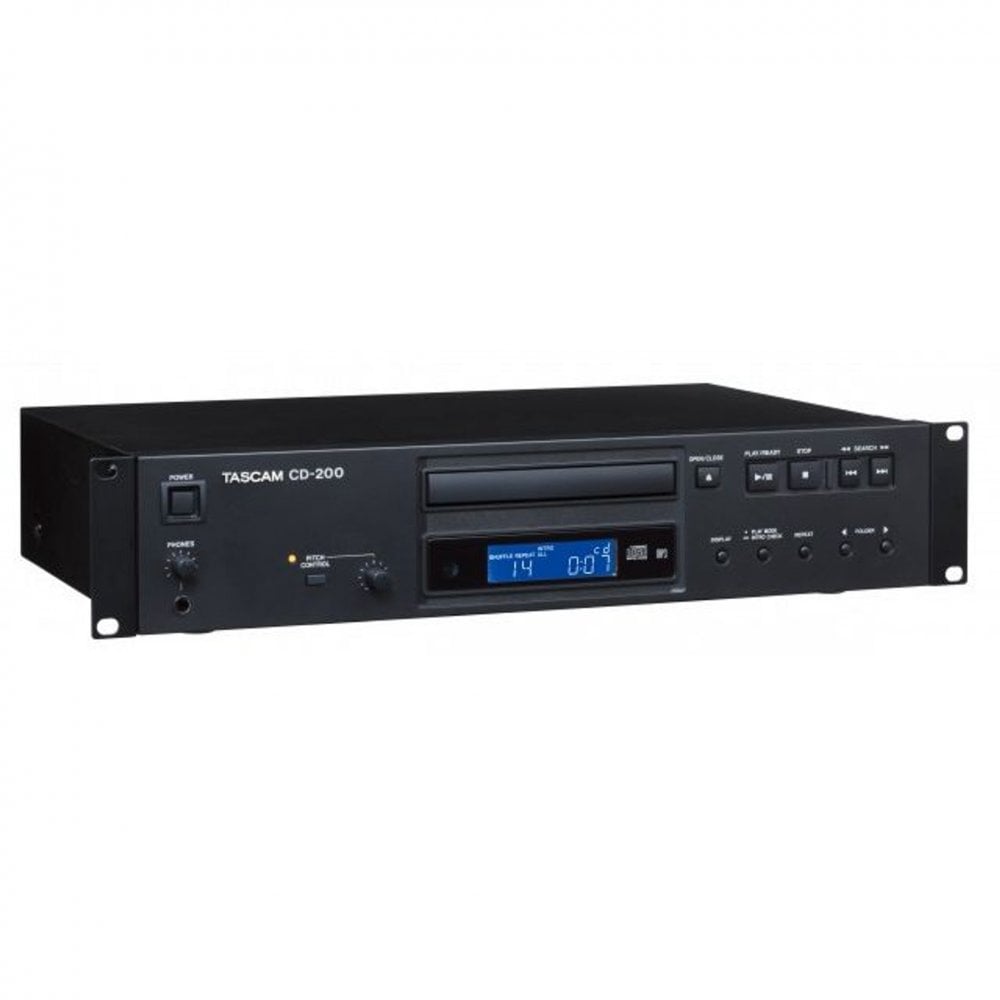

Tascam CD-200 CD Player

Streamlined CD Playback Solution

The Tascam CD-200 offers a streamlined and cost-effective solution for various audio playback needs. Its design focuses on simplicity, making it perfect for installations or PA rentals where complex CD player features may not be necessary. Despite its straightforward nature, this CD player provides essential functions like pitch control, headphone output with level adjustment, intro check, and anti-shock memory. These features help ensure smooth and mistake-free operation for users.

Versatile Audio File Compatibility

One of the standout features of the Tascam CD-200 is its ability to handle more than just standard audio CDs. This versatile player can also play back MP3 and WAV files from data CDs, expanding its utility beyond traditional CD formats. Additionally, it can display ID3 tags and CD-Text, enhancing the user experience and making it a versatile choice for a variety of audio playback scenarios.

Convenient Remote Control

For added convenience, the Tascam CD-200 comes with a wireless remote control. This remote provides easy access to most of the player's functions and allows users to select tracks directly using the 10-key pad. With this handy remote, users can enjoy a hassle-free and user-friendly audio playback experience, making the Tascam CD-200 a simple, convenient, and reliable choice for all their CD playback needs.

General

Compatible discs

• CD-R/CD-RW (12-cm/8-cm)

Formats

• CD-DA, CD-ROM (ISO 9660 Level 1, 2, 3 JOLIET Romeo UDF 1.5), MP3, WAV

MP3 playback specifications

• Audio Mode Stereo/Joint Stereo/Dual Channel/Mono/VBR
• MPEG1 Audio Layer III (MP3) Sampling frequency: 32 kHz/44.1 kHz/48 kHz
• Bit rate: 32–320 Kbit/s

WAV playback specifications

• Sampling frequency 8 kHz/11.025 kHz/12 kHz/16 kHz/22.05 kHz/24 kHz/32 kHz/44.1 kHz/48 kHz
• Quantization bit rate 8-bit/16-bit

CD-DA playback specifications

• Sampling frequency 44.1 kHz
• Quantization bit rate 16-bit

Audio performance

• Frequency response 20 Hz - 20 kHz ±1.5 dB
• Signal-to-Noise Ratio (S/N) > 90 dBA (20 kHz LPF)
• Distortion (THD+N) < 0.01% (1 kHz: 20 kHz LPF)
• Dynamic range 90 dB min.
• Channel separation 90 dB min. (1 kHz, 1 kHz BPF)

Audio outputs

• Analogue output unbalanced RCA pin jacks
• Nominal output level –10 dBV
• Maximum output level +6 dBV
• Output impedance 200 Ω
• Headphones output Standard stereo jack
• Nominal output power 20 mW + 20 mW min.
• (When monitoring CD, THD+N: 0.1% max., 32 Ω load)
• Coaxial digital output RCA pin jack
• Compatible signal format IEC-60958-3 (SPDIF)
• Output impedance 75 Ω
• Optical digital output Fibreoptic connector
• Compatible signal format IEC-60958-3 (SPDIF)

Power supply and other specifications

• Power requirements AC 120 V, 60 Hz (USA/Canada)
• AC 230 V, 50 Hz (UK/Europe)
• AC 240 V, 50 Hz (Australia)

Power consumption 12 W

• Operating temperature range +5 °C to +35 °C
• Inclination of installation 5 degrees or less
• Dimensions (W x H x D) 481 mm x 95 mm x 298 mm
• Weight 4.2 kg
